| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | UL, ETL, CE, RoHS |
| Model Number: | RG11 S |
| Minimum Order Quantity: | 30 KM |
| Packaging Details: | 500M, 1000M, Wooden Drum, Pallet |
| Delivery Time: | Normally 15 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Inner Conductor: | 0.064"/1.63mm/14AWG CCS | Dielectric: | 0.280"/7.11mm Foamed PE |
|---|---|---|---|
| Shield 1: | 0.287"/7.29mm Bonded Aluminum PET | Shield 2: | Aluminum Braid Wire 90% Coverage |
| Jacket: | 0.400"±0.006"/10.16±0.15mm PVC CM | Jacket Thickness: | 0.042"/1.07mm |
|
||||||||
| CATV coaxial cable description ZION COMMUNICATION supplies a wide range of CATV coaxial cables for today’s wireless and broadband networks, through all areas of a network to transport broadband data. These 75 Ohm screened low loss cables offer optimum performance for main trunk / distribution use in IRS, MATV and CATV systems where extended cable runs are required. These products are available to support most systems, for CATV network distribution, whatever part of the network, whether the trunk cables, head end cable products or indeed the drop cables into the home.All HANGZHOU ZION COMMUNICATION CO.,LTD CATV Coaxial cables comply with International standards within the industry. If you do not find the product you need in then we offer the option of a special custom design cable. Here you can choose between different constructions, jacket color or other materials etc. |
||||||||
| Key Features Physical Foamed dielectric, preventing water ingress, mechanically robust and stable attenuation to 3 GHz Optimum shielding with excellent protection against interference and improved mechanical strength Wide product range, to suit a wide range of applications and environments, available in a range of jacket materials. |
||||||||
| Why chose us as your partner? ● Price: You can get ultimate reasonable factory price of the CATV coaxial cable itself from us! ● Service: You will enjoy best service from our export team on price for import and export, shipping time, documents and custom policy, which will save cost ultimately and create biggest value for you. ● Quality Guarantee:You will received 100% quality pass testing before sending to our customers; also we are responsible for all products during it’s normal lifetime. |
||||||||
|
||||||||

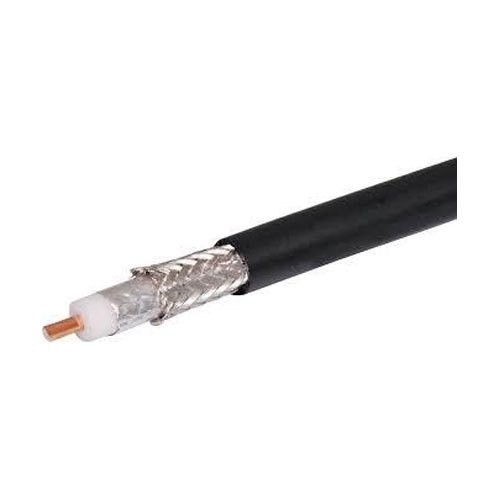

| RG11 S 90% PVC CM 75 Ohm CATV coaxial Cable NO.7100208 |
||||||||
| Construction Parameters: | ||||||||
| Inner Conductor | 0.064"/1.63mm/14AWG CCS | |||||||
| Dielectric | 0.280"/7.11mm Foamed PE | |||||||
| Shield 1 | 0.287"/7.29mm Bonded Aluminum PET | |||||||
| Shield 2 | Aluminum braid wire 90% coverage | |||||||
| Jacket | 0.400"±0.006"/10.16±0.15mm PVC CM | |||||||
| Jacket Thickness | 0.042"/1.07mm | |||||||
| Application | For Use in Longer CATV Run Lengths | |||||||
| Electrical Characteristics: | ||||||||
| Inner Conductor Resistance | The Max. at 20℃ shall be < 38 Ω/km < 11.59 Ω/1000ft |
|||||||
| Capacitance | 52 ±3 pF/m 15.8 ±1 pF/ft | |||||||
| Impedance | 75 ± 3 Ω | |||||||
| Return loss | between 5 and 1000MHz: > 22dB | |||||||
| Velocity of Propagation | 0.85 | |||||||
| Sparker Test (VAC) | 4 | |||||||
| Mechanical and Envrionmental Properties | ||||||||
| Cable bend radius | 10 times the cable diameter | |||||||
| Operating Temp Range | -20 ℃ to 60℃ | |||||||
| Cable diamensions | 0.40''±0.006''/10.21±0.15 mm PVC | |||||||
| Cross Section | ||||||||
| |
||||||||
| Attenuation(20℃): | ||||||||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) | ||||||
| 5 | 0.38 | 1.25 | ||||||
| 55 | 0.96 | 3.15 | ||||||
| 83 | 1.18 | 3.87 | ||||||
| 187 | 1.75 | 5.74 | ||||||
| 211 | 1.90 | 6.23 | ||||||
| 250 | 2.05 | 6.72 | ||||||
| 300 | 2.25 | 7.38 | ||||||
| 350 | 2.42 | 7.94 | ||||||
| 400 | 2.60 | 8.53 | ||||||
| 450 | 2.75 | 9.02 | ||||||
| 500 | 2.90 | 9.51 | ||||||
| 550 | 3.04 | 9.97 | ||||||
| 600 | 3.18 | 10.43 | ||||||
| 750 | 3.65 | 11.97 | ||||||
| 865 | 3.98 | 13.05 | ||||||
| 1000 | 4.35 | 14.27 | ||||||
| The Factory | ||||||||
|
||||||||
| We have a study and design label,a professional team of engineers and skilled workers, also with the advanced machines and modern factories which can provide our customers with outstanding quality, service, and pricing. Monthly Production Capacity: Wire (Copper/copper clad aluminium) drawing: 500 Metric Tons+ Coaxial Cable: 14,000KM+ Telephone Cable: 10,000KM+ Data & Computer Cable: 12,200KM+ Security & Fire Alarm Cable: 10,000KM+ Other Cable Types: 10,000KM+ Cable Accessories: 180,000pcs+ Telecom Accessories: 180,000pcs+ |
||||||||
| Packing | ||||||||
|
||||||||
| We have abundant types of packing for you,such as reel, plastic spool, wooden spool,pull box, colorful carton, pallet and many other more. Also our design team will supply you best solution of the packing for size ,firm and artistic outlooking. | ||||||||
| Order Informations: | ||||||||
| Marking | HELLOSIGNAL RG11 S 90% PVC CM CATV COAXIAL CABLE 7100208 ×××M/FT |
|||||||
| Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |||||||
| Delivery time | Normally 25 days after received the deposit. | |||||||
| Brand | HELLOSIGNAL®OR OEM | |||||||
| Similar Type: | ||||||||
|
Cond.Type &Nom.D.C.R |
Shielding | Shielding& %Coverage |
Jacket Type | Nom. Capacitance | Nom.Imp.Ω | ||
| RG11 S 60% PE NO.7100201 |
14AWG (Solid)CCS 38Ω/km |
B.Al/PET | Al-Braid 60% | PE | 52±3pF/m | 75±3Ω | ||
| RG11 S 60% Jelly PE NO.7100202 |
14AWG (Solid)CCS 38Ω/km |
B.Al/PET | Al-Braid 60% +Jelly |
PE | 52±3pF/m | 75±3Ω | ||
| RG11 S 60% PVC CM NO.7100204 |
14AWG (Solid)CCS 38Ω/km |
B.Al/PET | Al-Braid 60% | PVC CM | 52±3pF/m | 75±3Ω | ||
| RG11 S 60% PVC CMR or CMG NO.7100205 |
14AWG (Solid)CCS 38Ω/km |
B.Al/PET | Al-Braid 60% | PVC CMR or CMG |
52±3pF/m | 75±3Ω | ||
| RG11 S 90% Jelly PE NO.7100207 |
14AWG (Solid)CCS 38Ω/km |
B.Al/PET | Al-Braid 90% +Jelly |
PE | 52±3pF/m | 75±3Ω | ||
| RG11 S 90% PVC CM NO.7100208 |
14AWG (Solid)CCS 38Ω/km |
B.Al/PET | Al-Braid 90% | PVC CM | 52±3pF/m | 75±3Ω | ||
| RG11 S 60% PVC CMP NO.7100210 |
14AWG (Solid)CCS 38Ω/km |
B.Al/PET | Al-Braid 60% | PVC CMP | 52±3pF/m | 75±3Ω | ||
