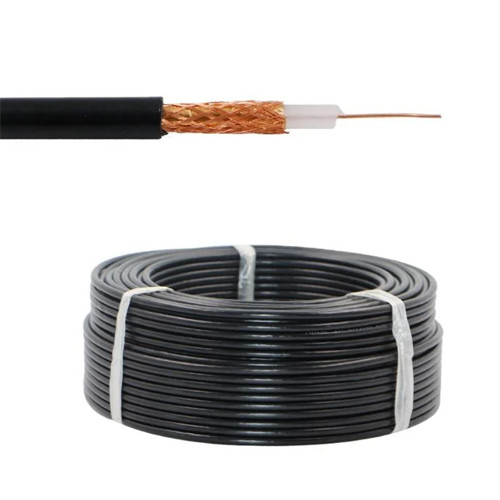

75ohm RG59 B/U BC 95% CCA PE Coaxial Cable Copper Wire Rg59 CCTV Cable

Basic Information

Place of Origin:	China
Brand Name:	Zion communication OR OEM
Certification:	ISO, UL, CE, RoHS
Model Number:	RG59 Coaxial Cable

Minimum Order Quantity:	30 KM
Packaging Details:	305M, 1000FT, Wooden Reel, Carton
Delivery Time:	25 working days
Payment Terms:	T/T, L/C
Supply Ability:	3000KM / Month

Get Best Price Contact Now

Detail Information

Conductor:	20 AWG BC	Insulation:	Foamed PE
Shield:	Bare Copper Braid Wire 95% Coverage	Jacket:	PVC CM
Color:	Black, White	Package:	305M, 1000FT, Wooden Reel, Carton
Highlight:	PVC jacket Rg59 CCTV Cable , 1000FT 75ohm RG59 Coaxial Cable

Product Description

RG59 B/U BC 95% BC PE 75 Ohm CCTV coaxial Cable NO.7100170



Construction Parameters:
Inner Conductor	0.024"/0.58mm/23 AWG BC
Dielectric	0.144"/3.66mm SPE
Shield	0.12mm Bare Copper(95%)
Jacket	0.238"±0.006"/6.05±0.15mm PE
Application	For Use in Longer CCTV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance	65.26 Ohms/KM at 20℃

Capacitance	67±2 pF/m
Impedance	75 ± 3 Ω
Return loss	between 5 and 1000MHz: > 22dB
Velocity of Propagation	0.66
Sparker Test (VAC)	3

Mechanical and Envrionmental Properties
Cable bend radius	10 times the cable diameter
Operating Temp Range	-20 ℃ to 60℃
Cable diamensions	0.238"±0.006"/6.05±0.15mm PE

Cross Section














Attenuation(20℃):
Frequency (MHZ)	Max Attenuation(dB/100ft)	Max Attenuation (dB/100m)
5	0.87	2.70
50	2.90	9.00
100	4.15	12.87
200	5.98	18.54
550	10.32	31.98
750	12.20	37.81
865	13.27	41.15
1000	14.40	44.65

Order Informations:
Marking	HELLOSIGNAL RG59 B/U BC 95% BC PE CCTV COAXIAL CABLE 7100169×××M/FT
Package	Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL® OR OEM
