| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | ISO, UL, CE, RoHS |
| Model Number: | RG59 Coaxial Cable |
| Minimum Order Quantity: | 30 KM |
| Packaging Details: | 305M, 1000FT, Wooden Reel, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3000KM / Month |
| Conductor: | 20 AWG BC | Insulation: | Foamed PE |
|---|---|---|---|
| Shield: | Bare Copper Braid Wire 95% Coverage | Jacket: | PVC CM |
| Color: | Black, White | Package: | 305M, 1000FT, Wooden Reel, Carton |
|

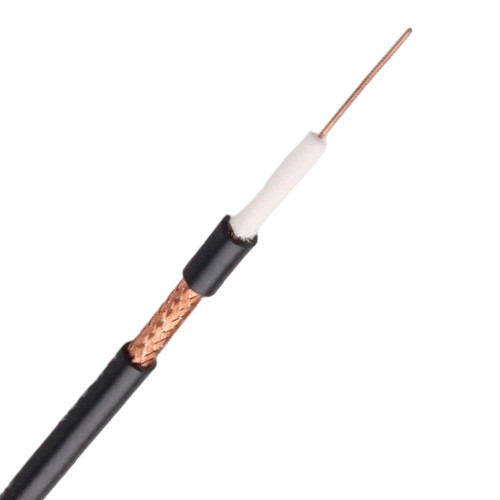

RG59 B/U BC 95% CCA PVC 75 Ohm CCTV coaxial Cable NO.7100168 |
|||
| Construction Parameters: | |||
| Inner Conductor | 0.024"/0.58mm/23 AWG BC | ||
| Dielectric | 0.144"/3.66mm SPE | ||
| Shield | 0.12mm Copper Clad Aluminum Copper(95%) | ||
| Jacket | 0.238"±0.006"/6.05±0.15mm PVC | ||
| Application | For Use in Longer CCTV Run Lengths | ||
| Electrical Characteristics: | |||
| Inner Conductor Resistance | 65.26 Ohms/KM at 20℃ | ||
| Capacitance | 67±2 pF/m | ||
| Impedance | 75 ± 3 Ω | ||
| Return loss | between 5 and 1000MHz: > 22dB | ||
| Velocity of Propagation | 0.66 | ||
| Sparker Test (VAC) | 3 | ||
| Mechanical and Envrionmental Properties | |||
| Cable bend radius | 10 times the cable diameter | ||
| Operating Temp Range | -20 ℃ to 60℃ | ||
| Cable diamensions | 0.238"±0.006"/6.05±0.15mm PVC | ||
| Cross Section | |||
 |
|||
| Attenuation(20℃): | |||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) | |
| 5 | 0.87 | 2.70 | |
| 50 | 2.90 | 9.00 | |
| 100 | 4.15 | 12.87 | |
| 200 | 5.98 | 18.54 | |
| 550 | 10.32 | 31.98 | |
| 750 | 12.20 | 37.81 | |
| 865 | 13.27 | 41.15 | |
| 1000 | 14.40 | 44.65 | |
| Order Informations: | |||
| Marking |
HELLOSIGNAL RG59 B/U BC 95% CCA PVC CCTV COAXIAL CABLE 7100168×××M/FT |
||
| Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | ||
| Delivery time | Normally 25 days after received the deposit. | ||
| Brand | HELLOSIGNAL® OR OEM | ||
