| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | ISO, UL, CE, RoHS |
| Model Number: | RG59 Coaxial Cable |
| Minimum Order Quantity: | 30 KM |
| Packaging Details: | 305M, 1000FT, Wooden Reel, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3000KM / Month |
| Conductor: | 20 AWG BC | Insulation: | Foamed PE |
|---|---|---|---|
| Shield: | Bare Copper Braid Wire 95% Coverage | Jacket: | PVC CM |
| Color: | Black, White | Package: | 305M, 1000FT, Wooden Reel, Carton |
|

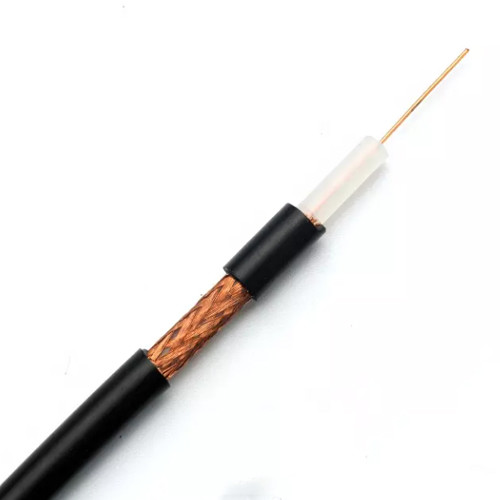

RG59 BC 95% BC PVC CMP 75 Ohm CCTV coaxial Cable NO.7100163 |
|||
| Construction Parameters: | |||
| Inner Conductor | 0.032"/0.81mm/20 AWG BC | ||
| Dielectric | 0.135"/3.43mm Foamed FEP | ||
| Shield 1 | / | ||
| Shield 2 | 0.12mm Bare Copper braid wire 95% coverage |
||
| Jacket | 0.193"±0.006"/4.90±0.15mm PVC CMP | ||
| Jacket Thickness | 0.032"/0.81mm | ||
| Application | For Use in Longer CCTV Run Lengths | ||
| Electrical Characteristics: | |||
| Inner Conductor Resistance |
The Max. at 20℃ shall be < 33.4 Ω/km 10.2Ω/1000ft |
||
| Capacitance | 52 ±3 pF/m 15.8 ±1 pF/ft | ||
| Impedance | 75 ± 3 Ω | ||
| Return loss | between 5 and 1000MHz: > 22dB | ||
| Velocity of Propagation | 0.85 | ||
| Sparker Test (VAC) | 4 | ||
| Mechanical and Envrionmental Properties | |||
| Cable bend radius | 10 times the cable diameter | ||
| Operating Temp Range | -20 ℃ to 60℃ | ||
| Cable diamensions | 0.193"±0.006"/4.90±0.15mm PVC CMP | ||
| Cross Section | |||
 |
|||
| Attenuation(20℃): | |||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) | |
| 1 | 0.30 | 0.98 | |
| 10 | 0.95 | 3.11 | |
| 100 | 2.95 | 9.67 | |
| 200 | 4.50 | 14.75 | |
| 400 | 6.80 | 22.30 | |
| 700 | 9.67 | 31.70 | |
| 900 | 10.60 | 34.75 | |
| 1000 | 11.47 | 37.61 | |
| Order Informations: | |||
| Marking |
HELLOSIGNAL RG59 BC 95% BC PVC CCTV COAXIAL CABLE 7100163 ×××M/FT |
||
| Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | ||
| Delivery time | Normally 25 days after received the deposit. | ||
| Brand | HELLOSIGNAL® OR OEM | ||
