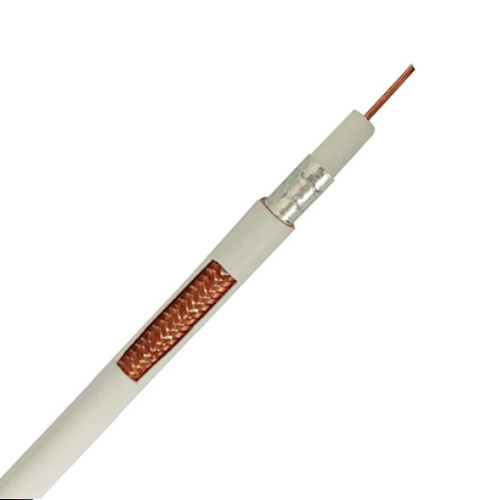

RG59 BC 95% BC PVC CMR Wholesale CCTV Telecommunication Cable Rg59 Copper Conductor Braiding Cable Coaxial Cable

Basic Information

Place of Origin:	China
Brand Name:	Zion communication OR OEM
Certification:	ISO, UL, CE, RoHS
Model Number:	RG59 Coaxial Cable

Minimum Order Quantity:	30 KM
Packaging Details:	305M, 1000FT, Wooden Reel, Carton
Delivery Time:	25 working days
Payment Terms:	T/T, L/C
Supply Ability:	3000KM / Month

Get Best Price Contact Now

Detail Information

Conductor:	20 AWG BC	Insulation:	Foamed PE
Shield:	Bare Copper Braid Wire 95% Coverage	Jacket:	PVC CM
Color:	Black, White	Package:	305M, 1000FT, Wooden Reel, Carton

Product Description

RG59 BC 95% BC PVC CMR 75 Ohm CCTV coaxial Cable NO.7100162



Construction Parameters:
Inner Conductor	0.032"/0.81mm/20 AWG BC
Dielectric	0.144"/3.66mm Foamed PE
Shield 1	/
Shield 2	0.12mm Bare Copper braid wire 95% coverage
Jacket	0.238"±0.006"/6.05±0.15mm PVC CMR
Jacket Thickness	0.032"/0.81mm
Application	For Use in Longer CCTV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance	The Max. at 20℃ shall be < 33.4 Ω/km 10.2Ω/1000ft

Capacitance	52 ±3 pF/m 15.8 ±1 pF/ft
Impedance	75 ± 3 Ω
Return loss	between 5 and 1000MHz: > 22dB
Velocity of Propagation	0.85
Sparker Test (VAC)	4

Mechanical and Envrionmental Properties
Cable bend radius	10 times the cable diameter
Operating Temp Range	-20 to 75 ℃
Cable diamensions	0.238"±0.006"/6.05±0.15mm PVC CMR

Cross Section














Attenuation(20℃):
Frequency (MHZ)	Max Attenuation(dB/100ft)	Max Attenuation (dB/100m)
5	0.86	2.82
55	2.05	6.73
83	2.45	8.04
187	3.60	11.81
211	3.80	12.47
250	4.10	13.45
300	4.45	14.60
350	4.80	15.75
400	5.10	16.73
450	5.40	17.72
500	5.70	18.70
550	5.95	19.52
600	6.20	20.34
750	6.97	22.87
865	7.52	24.67
1000	8.12	26.64

Order Informations:
Marking	HELLOSIGNAL RG59 BC 95% BC PVC CCTV COAXIAL CABLE 7100162 ×××M/FT
Package	Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL® OR OEM
