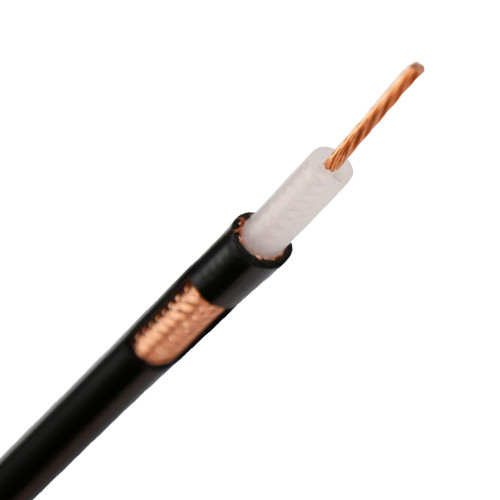

RG59 BC 95% BC PVC CM 75ohm CCTV Coaxial Cable For Communication

Basic Information
Place of Origin: China
Brand Name: Zion communication OR OEM
Certification: ISO, UL, CE, RoHS
Model Number: RG59 Coaxial Cable
Minimum Order Quantity: 30 KM
Packaging Details: 305M, 1000FT, Wooden Reel, Carton
Delivery Time: 25 working days
Payment Terms: T/T, L/C
Supply Ability: 3000KM / Month
Detail Information
Conductor: 20 AWG BC Insulation: Foamed PE
Shield: Bare Copper Braid Wire 95% Coverage Jacket: PVC CM
Color: Black, White Package: 305M, 1000FT, Wooden Reel, Carton
High Light:

RG59 75ohm CCTV Coaxial Cable

,

Foamed PE Insulation CCTV Coaxial Cable


Product Description

RG59 BC 95% BC PVC CM

75 Ohm CCTV coaxial Cable

NO.7100161

Construction Parameters:
Inner Conductor 0.032"/0.81mm/20 AWG BC
Dielectric 0.144"/3.66mm Foamed PE
Shield 1 /
Shield 2 0.12mm Bare Copper
braid wire 95% coverage
Jacket 0.238"±0.006"/6.05±0.15mm PVC CM
Jacket Thickness 0.032"/0.81mm
Application For Use in Longer CCTV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance

The Max. at 20 shall be < 33.4 Ω/km

10.2Ω/1000ft

Capacitance 52 ±3 pF/m 15.8 ±1 pF/ft
Impedance 75 ± 3 Ω
Return loss between 5 and 1000MHz: > 22dB
Velocity of Propagation 0.85
Sparker Test (VAC) 4

Mechanical and Envrionmental Properties
Cable bend radius 10 times the cable diameter
Operating Temp Range -20 to 60
Cable diamensions 0.238"±0.006"/6.05±0.15mm PVC CM

Cross Section
Attenuation(20℃):
Frequency (MHZ) Max Attenuation(dB/100ft) Max Attenuation (dB/100m)
5 0.86 2.82
55 2.05 6.73
83 2.45 8.04
187 3.60 11.81
211 3.80 12.47
250 4.10 13.45
300 4.45 14.60
350 4.80 15.75
400 5.10 16.73
450 5.40 17.72
500 5.70 18.70
550 5.95 19.52
600 6.20 20.34
750 6.97 22.87
865 7.52 24.67
1000 8.12 26.64

Order Informations:
Marking

HELLOSIGNAL RG59 BC 95% BC PVC

CCTV COAXIAL CABLE 7100161 ×××M/FT

Package Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL®OR OEM
