| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | ISO, UL, CE, RoHS |
| Model Number: | RG6 Coaxial Cable |
| Minimum Order Quantity: | 30 KM |
| Packaging Details: | 305M, 1000FT, Wooden Reel, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3000KM / Month |
| Conductor: | 18AWG BC | Insulation: | Foamed PE |
|---|---|---|---|
| Shield 1: | Bonded Aluminum Polyproylene | Shield 2: | Bare Copper Braid Wire 95% Coverage |
| Jacket: | PVC Flame Retardation: IEC 60332-1 | Color: | Black, White |
| Package: | 305M, 1000FT, Wooden Reel, Carton | ||
| High Light: | IEC 60332-1 RG6U Coaxial Cable,RG6U CCTV Coaxial Construction Cable |
||
|

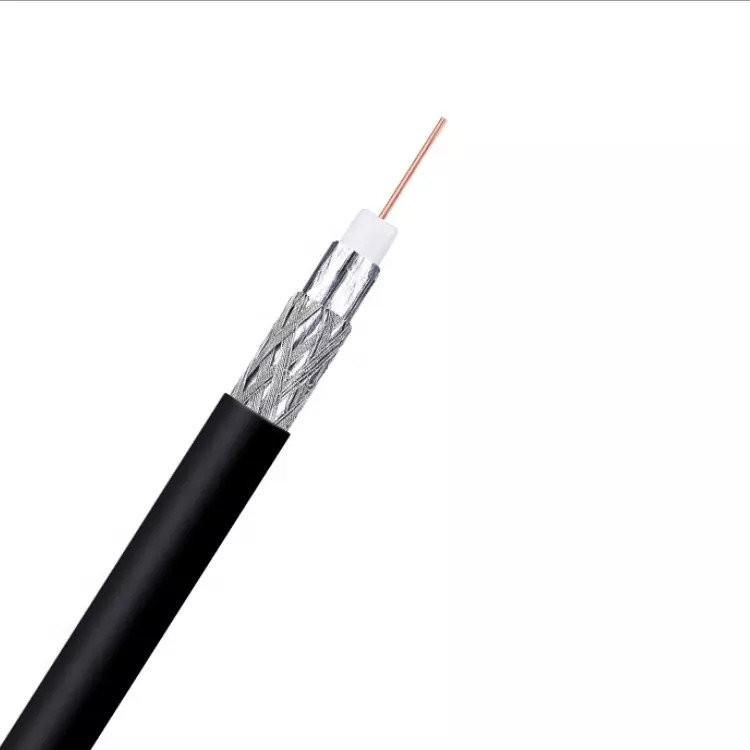

RG6U CCS 95% AL PVC NO.7100064 |
||||
| Construction Parameters: | ||||
| Inner Conductor | 0.040"/1.02mm/18AWG CCS | |||
| Dielectric | 0.180"/4.57mm Foamed PE | |||
| Shield 1 | 0.187"/4.75mm Bonded Aluminum Polyproylene | |||
| Shield 2 | Aluminum braid wire 95% coverage | |||
| Jacket | 0.268"±0.006"/6.81±0.15mm PVC | |||
| Jacket Thickness | 0.030"/0.76mm | |||
| Application | For Use in Longer CATV Run Lengths | |||
| Electrical Characteristics: | ||||
| Inner Conductor Resistance |
The Max. at 20℃ shall be < 87 Ω/km 26.6Ω/1000ft |
|||
| Capacitance | 52 ±3 pF/m 15.9 ±0.9 pF/ft | |||
| Impedance | 75 ± 3 Ω | |||
| Return loss | between 5 and 1000MHz: > 22dB | |||
| Velocity of Propagation | 0.85 | |||
| Sparker Test (VAC) | 4 | |||
| Mechanical and Envrionmental Properties | ||||
| Cable bend radius | 10 times the cable diameter | |||
| Operating Temp Range | -20 ℃ to 60℃ | |||
| Cable diamensions | 0.268"±0.006"/6.81±0.15mm PVC | |||
| Cross Section | ||||
 |
||||
| Attenuation(20℃): | ||||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) | ||
| 5 | 0.58 | 1.90 | ||
| 55 | 1.60 | 5.25 | ||
| 83 | 1.95 | 6.40 | ||
| 187 | 2.85 | 9.35 | ||
| 211 | 3.05 | 10.00 | ||
| 250 | 3.30 | 10.82 | ||
| 300 | 3.55 | 11.64 | ||
| 350 | 3.85 | 12.63 | ||
| 400 | 4.15 | 13.61 | ||
| 450 | 4.40 | 14.43 | ||
| 500 | 4.66 | 15.29 | ||
| 550 | 4.90 | 16.08 | ||
| 600 | 5.10 | 16.73 | ||
| 750 | 5.65 | 18.54 | ||
| 865 | 6.10 | 20.01 | ||
| 1000 | 6.55 | 21.49 | ||
| Order Informations: | ||||
| Marking | HELLOSIGNAL RG6U CCS 95% CATV COAXIAL CABLE 7100064 ×××M/FT |
|||
| Package | 300M/Wooden Spool | |||
| Delivery time | Normally 25 days after received the deposit. | |||
| Brand | HELLOSIGNAL® OR OEM | |||
