| Place of Origin: | China |
|---|---|
| Brand Name: | hellosignal |
| Certification: | UL, CE, RoHS |
| Model Number: | CCTV SURVEILLANCE CABLE |
| Minimum Order Quantity: | 30 KM |
| Packaging Details: | 500FT, 1000FT Wooden Reel or Spool in Box |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3000KM / Month |
| Conductor: | Stranded Copper | Dielectric: | Solid PE |
|---|---|---|---|
| Shield 1: | Al-Pes Tape /CU-Pes Tape | Shield 2: | Aluminium Braid 70% |
| Power Wire Conductor: | Stranded Copper | Power Wire Diameter Of Insulation: | PVC |
| Jacket: | PVC Common | ||
| High Light: | Rg6 Camera Cable With Power,Solid PE Rg6 Cable For Cctv |
||

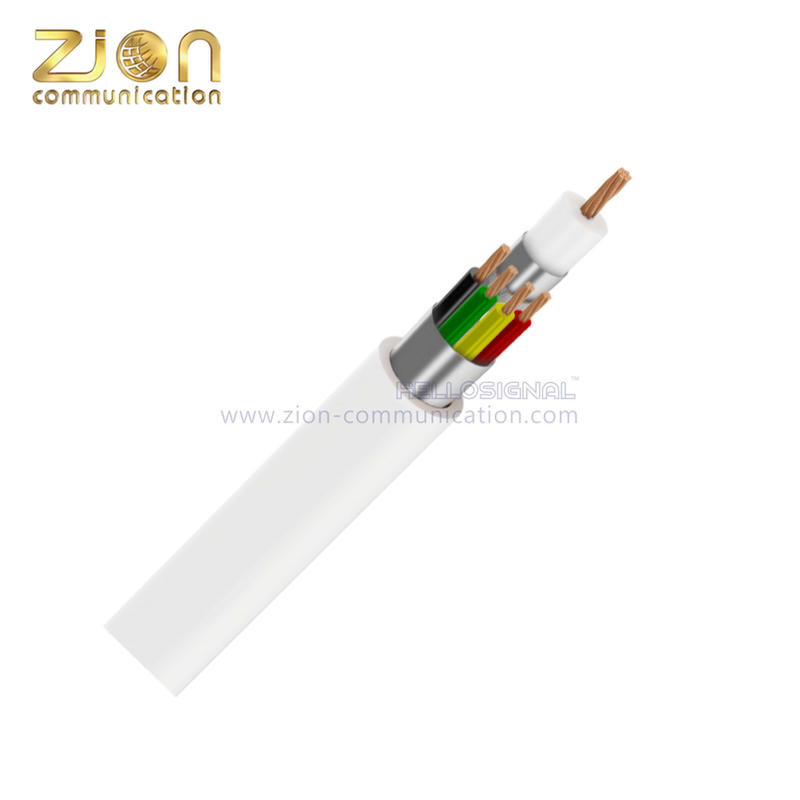

| Mini Coax +4×0.22(NO.7102172) | ||||||||
| Construction Parameters: | ||||||||
| Coaxial Cable | ||||||||
| Inner Conductor | 7x0,20mm Ø Stranded Copper | |||||||
| Dielectric | 2,50mm Ø Solid PE | |||||||
| Shield 1 | Al-Pes Tape /CU-Pes Tape | |||||||
| Shield 2 | Aluminium Braid 70% | |||||||
| Power Cores | ||||||||
| Inner Conductor | 4x0,22mm2 (7×0.18mm CU ) Stranded Copper | |||||||
| Insulation | 1.0mm PVC | |||||||
| Overall Outer Sheath | 5.5±0.2mm PVC Common RAL 7032 Grey | |||||||
| Electrical Characteristics: | ||||||||
| Inner Conductor Resistance | The Max. at 20℃ shall be < 64.9 Ω/km | |||||||
| Capacitance | 52 ±3 pF/m | |||||||
| Impedance | 75 ± 3 Ω | |||||||
| Velocity of Propagation | 0.82 | |||||||
| Sparker Test (VAC) | 3 | |||||||
| Mechanical and Envrionmental Properties | ||||||||
| Cable bend radius | 10 times the cable diameter | |||||||
| Operating Temp Range | -20 ℃ to 60℃ | |||||||

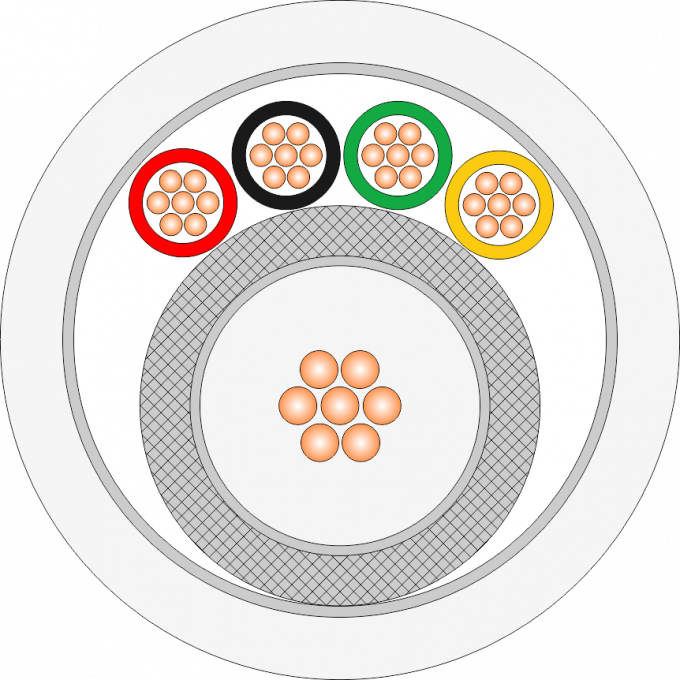

| Cross Section | ||||||||
|
|
||||||||
| Attenuation(20℃): | ||||||||
| Frequency (MHZ) | Max Attenuation (dB/100m) | |||||||
| 1 | 1.80 | |||||||
| 5 | 3.90 | |||||||
| 10 | 4.80 | |||||||
| 50 | 11.00 | |||||||
| 100 | 15.20 | |||||||
| 200 | 21.80 | |||||||
| 400 | 29.80 | |||||||
| 700 | 34.40 | |||||||
| 900 | 36.00 | |||||||
| ※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested. | ||||||||
| Order Informations | ||||||||
| Marking | HELLOSIGNAL CCTV 4+1,MINI COAX + 4x 0,22 mm² CCTV COAXIAL CABLE 7102172×××M |
|||||||
| Package | 100M,200M Roll, Spool | |||||||
| Delivery time | Normally 25 days after received the deposit. | |||||||
| Brand | HELLOSIGNAL® OR OEM | |||||||
