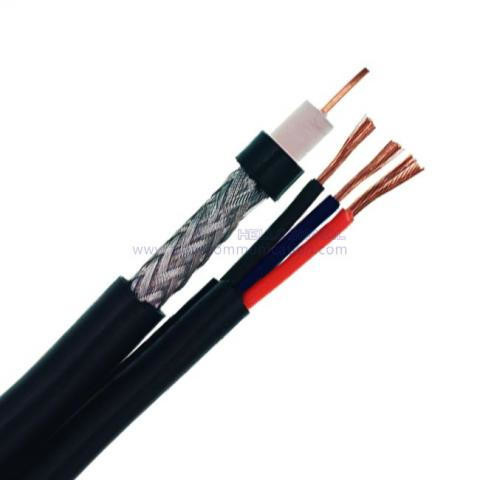

| Conductor: | 20AWG CCS | Dielectric: | Foamed Polyethylene |
|---|---|---|---|
| Shield: | AL-Braid(40%) | Power Wire Conductor: | CCA |
| Power Wire Diameter Of Insulation: | HDPE(Red,Black,Blue) | Jacket: | PVC |
| High Light: | 75 Ohm Rg59 Coaxial Cable 2 Core Power,3X26 AWG Rg59 2 Core Cable |
||
|
RG59 40% + 3X26 AWG NO.7102102 |
||||||||
| Similar Type: | ||||||||
| Coaxial Cable | Power Cores | |||||||
| Catalog No. |
Cond.Type &Nom.D.C.R |
Dielectric | Shielding& %Coverage |
Jacket | Power Wire Cond.Type | Power wire OD of insulation |
Jacket | Nom. Capacitance |
| RG59 67% + 2X26 AWG NO.7102103 |
20AWG/0.81mm (SOL)CCS 139.5 Ω/km |
Foam FEP |
AL -Braid 67% | 6.0mm PVC | 2x (10*0.12mm CCA) |
0.91HDPE (Red,Black) |
3.0mm PVC |
72±2 pF/m |
| RG59 67% + 3X26 AWG NO.7102104 |
20AWG/0.81mm (SOL)CCS 139.5 Ω/km |
Foam FEP |
AL -Braid 67% | 6.0mm PVC | 3x (10*0.12mm CCA) |
0.91HDPE (Red,Black, Blue) |
3.0mm PVC |
72±2 pF/m |
| RG59 90% + 2X26 AWG NO.7102105 |
20AWG/0.81mm (SOL)CCS 139.5 Ω/km |
Foam FEP |
AL -Braid 90% | 6.0mm PVC | 2x (10*0.12mm CCA) |
0.91HDPE (Red,Black) |
3.0mm PVC |
72±2 pF/m |
| RG59 90% + 3X26 AWG NO.7102106 |
20AWG/0.81mm (SOL)CCS 139.5 Ω/km |
Foam FEP |
AL -Braid 90% | 6.0mm PVC | 3x (10*0.12mm CCA) |
0.91HDPE (Red,Black, Blue) |
3.0mm PVC |
72±2 pF/m |
| Construction Parameters: | ||||||||
| Inner Conductor | 0.032"/0.81mm/20AWG CCS | |||||||
| Dielectric | 0.144"/3.66±0.05mm Foamed Polyethylene | |||||||
| Shield | 0.12mmAL-Braid(40%) | |||||||
| Jacket | 5.5mmPVC | |||||||
| Power Wire Conductor | 3x(10*0.12mmCCA ) | |||||||
| Power wire Diameter of insulation | 0.91HDPE(Red,Black,Blue) | |||||||
| Jacket | 3.0mmPVC | |||||||
| Application | For Use in Longer CCTV Run Lengths | |||||||
| Electrical Characteristics: | ||||||||
| Inner Conductor Resistance | The Max. at 20℃ shall be < 139.5 Ω/km 42.55Ω/1000ft | |||||||
| Capacitance | 52 ±3 pF/m 15.8 ±1 pF/ft | |||||||
| Impedance | 75 ± 3 Ω | |||||||
| Return loss | between 5 and 1000MHz: > 22dB | |||||||
| Velocity of Propagation | 0.85 | |||||||
| Sparker Test (VAC) | 4 | |||||||
| Mechanical and Envrionmental Properties | ||||||||
| Cable bend radius | 10 times the cable diameter | |||||||
| Operating Temp Range | -20 ℃ to 60℃ | |||||||
| Cable diamensions | ||||||||
| Cross Section | ||||||||
 |
||||||||
| Attenuation(20℃): | ||||||||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) | ||||||
| 5 | 0.86 | 2.82 | ||||||
| 55 | 2.05 | 6.73 | ||||||
| 83 | 2.45 | 8.04 | ||||||
| 187 | 3.60 | 11.81 | ||||||
| 211 | 3.80 | 12.47 | ||||||
| 250 | 4.10 | 13.45 | ||||||
| 300 | 4.45 | 14.60 | ||||||
| 350 | 4.80 | 15.75 | ||||||
| 400 | 5.10 | 16.73 | ||||||
| 450 | 5.40 | 17.72 | ||||||
| 500 | 5.70 | 18.70 | ||||||
| 550 | 5.95 | 19.52 | ||||||
| 600 | 6.20 | 20.34 | ||||||
| 750 | 6.97 | 22.87 | ||||||
| 865 | 7.52 | 24.67 | ||||||
| 1000 | 8.12 | 26.64 | ||||||
| Order Informations: | ||||||||
| Marking | HELLOSIGNAL RG59 40% + 3X26 AWG CCTV COAXIAL CABLE 7102102 ×××M/FT |
|||||||
| Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |||||||
| Delivery time | Normally 25 days after received the deposit. | |||||||
| Brand | HELLOSIGNAL® OR OEM | |||||||
| Similar Type: | ||||||||
| Coaxial Cable | Power Cores | |||||||
| Catalog No. |
Cond.Type &Nom.D.C.R |
Dielectric | Shielding& %Coverage |
Jacket | Power Wire Cond.Type | Power wire OD of insulation |
Jacket | Nom. Capacitance |
| RG59 67% + 2X26 AWG NO.7102103 |
20AWG/0.81mm (SOL)CCS 139.5 Ω/km |
Foam FEP |
AL -Braid 67% | 6.0mm PVC | 2x (10*0.12mm CCA) |
0.91HDPE (Red,Black) |
3.0mm PVC |
72±2 pF/m |
| RG59 67% + 3X26 AWG NO.7102104 |
20AWG/0.81mm (SOL)CCS 139.5 Ω/km |
Foam FEP |
AL -Braid 67% | 6.0mm PVC | 3x (10*0.12mm CCA) |
0.91HDPE (Red,Black, Blue) |
3.0mm PVC |
72±2 pF/m |
| RG59 90% + 2X26 AWG NO.7102105 |
20AWG/0.81mm (SOL)CCS 139.5 Ω/km |
Foam FEP |
AL -Braid 90% | 6.0mm PVC | 2x (10*0.12mm CCA) |
0.91HDPE (Red,Black) |
3.0mm PVC |
72±2 pF/m |
| RG59 90% + 3X26 AWG NO.7102106 |
20AWG/0.81mm (SOL)CCS 139.5 Ω/km |
Foam FEP |
AL -Braid 90% | 6.0mm PVC | 3x (10*0.12mm CCA) |
0.91HDPE (Red,Black, Blue) |
3.0mm PVC |
72±2 pF/m |
