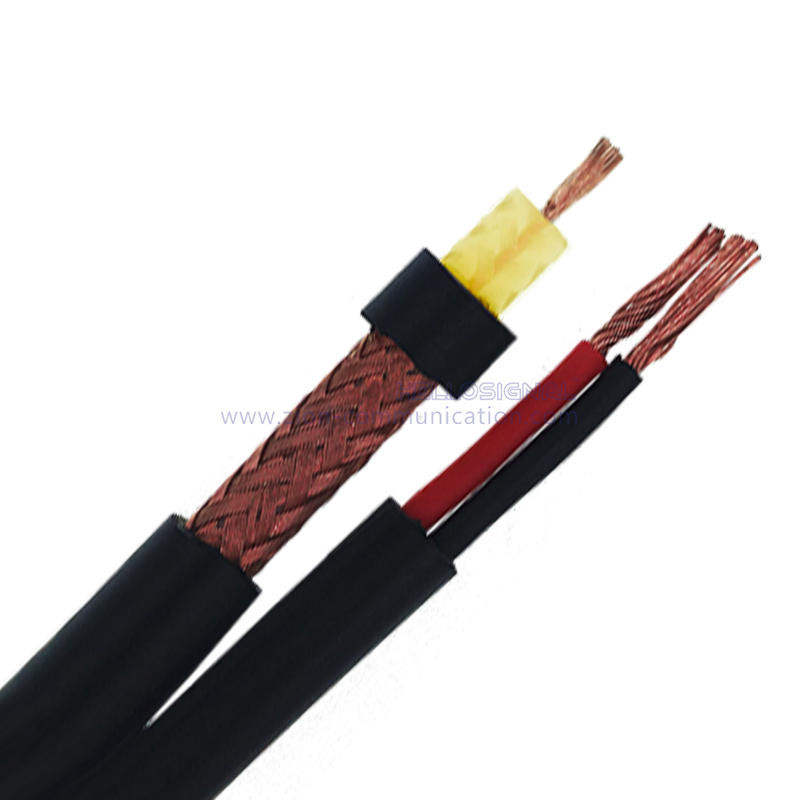

CFTV RFF 40+2X26 AWG Coaxial With Power Video Cable With Wire 100m CFTV Cable Coaxial

Basic Information

Place of Origin:	China
Brand Name:	hellosignal
Certification:	UL, CE, RoHS
Model Number:	CCTV SURVEILLANCE CABLE

Minimum Order Quantity:	30 KM
Packaging Details:	500FT, 1000FT Wooden Reel or Spool in Box
Delivery Time:	25 working days
Payment Terms:	T/T, L/C
Supply Ability:	3000KM / Month

Get Best Price Contact Now

Detail Information

Conductor:	Bare Copper	Dielectric:	Yellow Solid PE
Shield:	CCA-Braid(85%)	Power Wire Conductor:	CCA
Power Wire Diameter Of Insulation:	HDPE (Red,Black)	Jacket:	PVC

Product Description

CFTV RFF 40 + 2X26 AWG 75 Ohm CCTV coaxial Cable NO.7102101



Construction Parameters:
Inner Conductor	8*0.14mm Bare Copper
Dielectric	2.40±0.05mm Yellow Solid PE
Shield	0.12mmCCA-Braid(85%)
Jacket	4.00±0.1mm PVC
Power Wire Conductor	2x( 10*0.12mmCCA )
Power wire Diameter of insulation	0.91mmHDPE (Red,Black)
Jacket	3.0mmPVC
Application	For Use in Longer CATV Run Lengths

Electrical Characteristics:
Inner Conductor Resistance	The Max. at 20℃ shall be < 136.8 Ohms/KM
Capacitance	65±2 pF/m
Impedance	75 ± 3 Ω
Return loss	between 5 and 1000MHz: > 22dB
Velocity of Propagation	0.66
Sparker Test (VAC)	3
Operating Temp Range (PVC)	-20 ℃ to 60℃
RoHS	YES

Cross Section



















Attenuation(20℃):
Frequency (MHZ)	Max Attenuation(dB/100ft)	Max Attenuation (dB/100m)
1		1.93
4		3.87
7		5.13
70		16.39
100		19.65
200		27.99
300		34.47
400		39.98
500		44.88
600		49.35
700		53.48
800		57.35
900		61.00
1000		64.48

Order Informations:
Marking	HELLOSIGNAL CFTV RFF 40 + 2X26 AWG CATV COAXIAL CABLE 7102101 ×××M/FT
Package	Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL®OR OEM
