| Place of Origin: | China |
|---|---|
| Brand Name: | hellosignal |
| Certification: | UL, CE, RoHS |
| Model Number: | CCTV SURVEILLANCE CABLE |
| Minimum Order Quantity: | 30 KM |
| Packaging Details: | 500FT, 1000FT Wooden Reel or Spool in Box |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3000KM / Month |
| Conductor: | Cu | Dielectric: | Foamed Polyethylene |
|---|---|---|---|
| Shield1: | AL/Pet/Al | Shield2: | TC 70% |
| Power Wire Conductor: | CU | Power Wire Diameter Of Insulation: | PVC (Red,Black) |
| Jacket: | PVC Common | ||
| High Light: | PTZ 60 Coaxial Cable With Power,2 Cores 0.75mm2 CCTV Coaxial Cable |
||
|

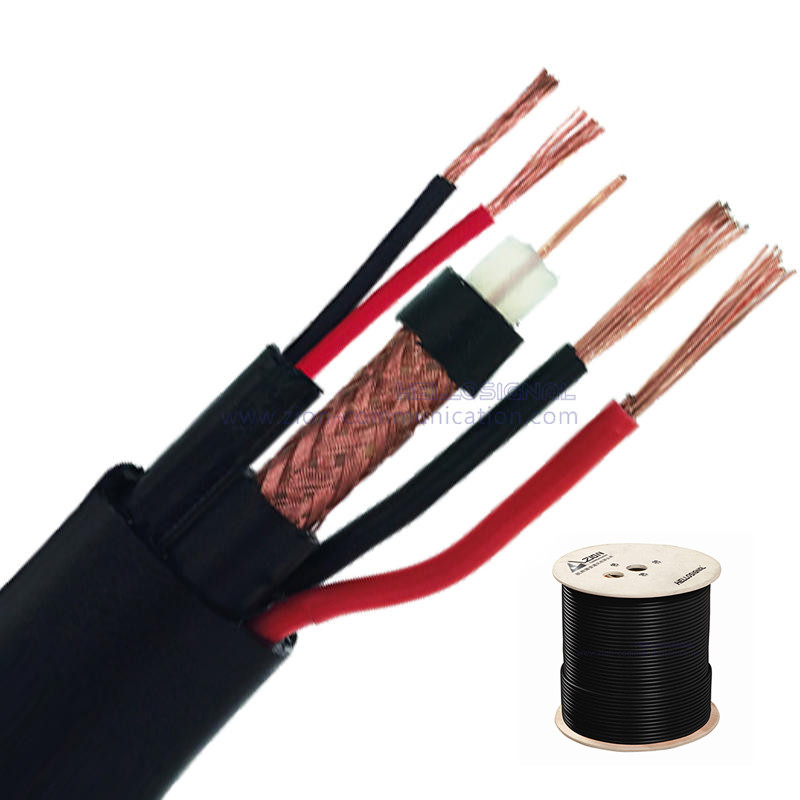

PTZ 60+2×0.75+2×0.22 NO.7102152 |
|||||||||
| Similar Type: | |||||||||
| Coaxial Cable | Power Cores | Low Capaciltance Computer Cable | Overall OuterSheath | ||||||
| Catalog No. |
Cond.Type &Nom.D.C.R |
Shielding& %Coverage |
Jacket | Power Wire Cond.Type | Power wire OD of insulation |
Inner Cond.Type | Ins. | Jacket | Jacket |
| PTZ 60 +2×0.50 +2×0.22 NO.7102151 |
0.60mm(SOL)Cu 64.9 Ω/km |
1.AL/Pet/Al 2.TC-Braid 70% |
4.5mm PVC | 2x (16×0.19mm CU ) |
1.8mmPVC (Red,Black) |
2× (7×0.19 mmCU) |
1.0mm PVC (R/B) |
3.1mm PVC | 9.5mm PVC Common |
| PTZ 60 +2×0.75 +2×0.22 NO.7102152 |
0.60mm(SOL)Cu 64.9 Ω/km |
1.AL/Pet/Al 2.TC-Braid 70% |
4.5mm PVC | 2x (24×0.19mm CU ) |
2.0mmPVC (Red,Black) |
2× (7×0.19 mmCU) |
1.0mm PVC (R/B) |
3.1mm PVC | 9.9mm PVC Common |
| PTZ 80 +2×0.75 +2×0.22 NO.7102153 |
0.80mm(SOL)Cu 64.9 Ω/km |
1.AL/Pet/Al 2.TC-Braid 70% |
5.0mm PVC | 2x (24×0.19mm CU ) |
2.0mmPVC (Red,Black) |
2× (7×0.19 mmCU) |
1.0mm PVC (R/B) |
3.1mm PVC | 10.8mm PVC Common |
| PTZ 80 +2×1.00 +2×0.22 NO.7102154 |
0.80mm(SOL)Cu 64.9 Ω/km |
1.AL/Pet/Al 2.TC-Braid 70% |
5.0mm PVC | 2x (32×0.19mm CU ) |
2.2mmPVC (Red,Black) |
2× (7×0.19 mmCU) |
1.0mm PVC (R/B) |

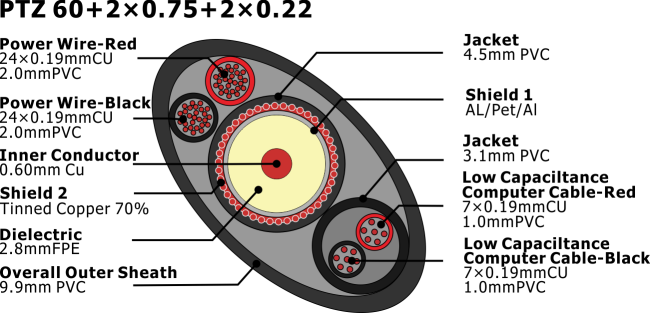

3.1mm PVC | 11mm PVC Common |
| Construction Parameters: | |||||||||
| Coaxial Cable | |||||||||
| Inner Conductor | 0.60mm Cu | ||||||||
| Dielectric | 2.8mm Foamed Polyethylene | ||||||||
| Shield 1 | AL/Pet/Al | ||||||||
| Shield 2 | TC 70% | ||||||||
| Jacket | 4.5mm PVC | ||||||||
| Power Cores | |||||||||
| Inner Conductor | 2x(24×0.19mmCU ) | ||||||||
| Insulation | 2.0mmPVC(Red,Black) | ||||||||
| Low Capaciltance Computer Cable | |||||||||
| Inner Conductor | 2×(7×0.19mmCU) | ||||||||
| Insulation | 1.0mmPVC(Red,Black) | ||||||||
| Jacket | 3.1mm PVC | ||||||||
| Overall Outer Sheath | 9.9mmPVC Common | ||||||||
| Application | For Use in Longer CCTV Run Lengths | ||||||||
| Power wire Diameter of insulation | 2.0mmPVC(Red,Black) | ||||||||
| Jacket | 8.5×6.55mm PVC Common | ||||||||
| Application | For Use in Longer CCTV Run Lengths | ||||||||
| Electrical Characteristics: | |||||||||
| Inner Conductor Resistance | ThThe Max. at 20℃ shall be < 64.9 Ω/km | ||||||||
| Capacitance | 52 ±3 pF/m 15.8 ±1 pF/ft | ||||||||
| Impedance | 75 ± 3 Ω | ||||||||
| Shielding DCR | 14.9Ω/km | ||||||||
| Velocity of Propagation | 0.82 | ||||||||
| Sparker Test (VAC) | 3 | ||||||||
| Mechanical and Envrionmental Properties | |||||||||
| Cable bend radius | 10 times the cable diameter | ||||||||
| Operating Temp Range | -20 ℃ to 60℃ | ||||||||
| Cable diamensions | 9.9mm | ||||||||
| Cross Section | |||||||||
 |
|||||||||
| Attenuation(20℃): | |||||||||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) | |||||||
| 1 | 1.8 | ||||||||
| 5 | 2.8 | ||||||||
| 10 | 3.9 | ||||||||
| 50 | 7.9 | ||||||||
| 100 | 11.1 | ||||||||
| 200 | 15.1 | ||||||||
| 400 | 21.8 | ||||||||
| 700 | 29.8 | ||||||||
| 900 | 34.4 | ||||||||
| 1000 | 36 | ||||||||
| Order Informations: | |||||||||
| Marking | HELLOSIGNAL PTZ 60+2×0.75+2×0.22 CCTV COAXIAL CABLE 7102152 ×××M/FT |
||||||||
| Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | ||||||||
| Delivery time | Normally 25 days after received the deposit. | ||||||||
| Brand | HELLOSIGNAL® OR OEM | ||||||||
