| Place of Origin: | China |
|---|---|
| Brand Name: | hellosignal |
| Certification: | UL, CE, RoHS |
| Model Number: | CCTV SURVEILLANCE CABLE |
| Minimum Order Quantity: | 30 KM |
| Packaging Details: | 500FT, 1000FT Wooden Reel or Spool in Box |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3000KM / Month |
| Conductor: | Cu | Dielectric: | Foamed Polyethylene |
|---|---|---|---|
| Shield1: | AL/Pet/Al | Shield2: | TC 70% |
| Power Wire Conductor: | CU | Power Wire Diameter Of Insulation: | PVC (Red,Black) |
| Jacket: | PVC Common |
|

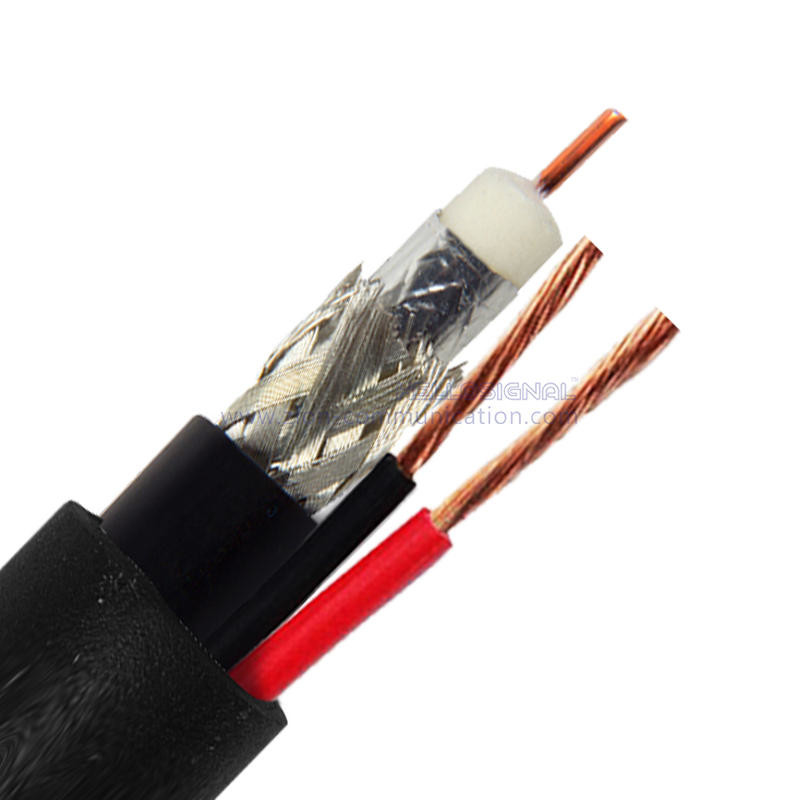

HD40+2×0.50 75 Ohm CCTV coaxial Cable NO.7102131 |
||
| Construction Parameters: | ||
| Inner Conductor | 0.42mm Cu | |
| Dielectric | 1.9mm Foamed Polyethylene | |
| Shield 1 | AL/Pet/Al | |
| Shield 2 | TC 70% | |
| Jacket | 3.6mm PVC | |
| Power Wire Conductor | 2x(16×0.19mmCU ) | |
| Power wire Diameter of insulation | 1.8mmPVC(Red,Black) | |
| Jacket | 6.7×5.6mm PVC Common | |
| Application | For Use in Longer CCTV Run Lengths | |
| Electrical Characteristics: | ||
| Inner Conductor Resistance | The Max. at 20℃ shall be < 129.2 Ω/km | |
| Capacitance | 77 ±3 pF/m | |
| Impedance | 75 ± 3 Ω | |
| Return loss | 20dB | |
| Velocity of Propagation | 0.82 | |
| Sparker Test (VAC) | 3 | |
| Mechanical and Envrionmental Properties | ||
| Cable bend radius | 10 times the cable diameter | |
| Operating Temp Range | -20 ℃ to 60℃ | |
| Cable diamensions | 6.7×5.6mm | |
| Cross Section | ||
 |
||
| Attenuation(20℃): | ||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
| 5 | 1.00 | 3.05 |
| 50 | 3.14 | 9.59 |
| 100 | 4.44 | 13.55 |
| 300 | 7.69 | 23.45 |
| 450 | 9.41 | 28.71 |
| 865 | 13.05 | 39.80 |
| 1000 | 14.03 | 42.79 |
| 1750 | 18.56 | 56.60 |
| 2150 | 20.57 | 62.73 |
| 2500 | 22.17 | 67.63 |
| 3000 | 24.29 | 74.09 |
| Order Informations: | ||
| Marking | HELLOSIGNAL HD40+2×0.50 CCTV COAXIAL CABLE 7102131 ×××M/FT |
|
| Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |
| Delivery time | Normally 25 days after received the deposit. | |
| Brand | HELLOSIGNAL® OR OEM | |
