| Place of Origin: | China |
|---|---|
| Brand Name: | hellosignal |
| Certification: | UL, CE, RoHS |
| Model Number: | CCTV SURVEILLANCE CABLE |
| Minimum Order Quantity: | 30 KM |
| Packaging Details: | 500FT, 1000FT Wooden Reel or Spool in Box |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3000KM / Month |
| Conductor: | Bare Copper | Dielectric: | SPE |
|---|---|---|---|
| Shield: | CCA(85%) | Power Wire Conductor: | CCA |
| Power Wire Diameter Of Insulation: | PVC (Red,Black) | Jacket: | PVC Green |

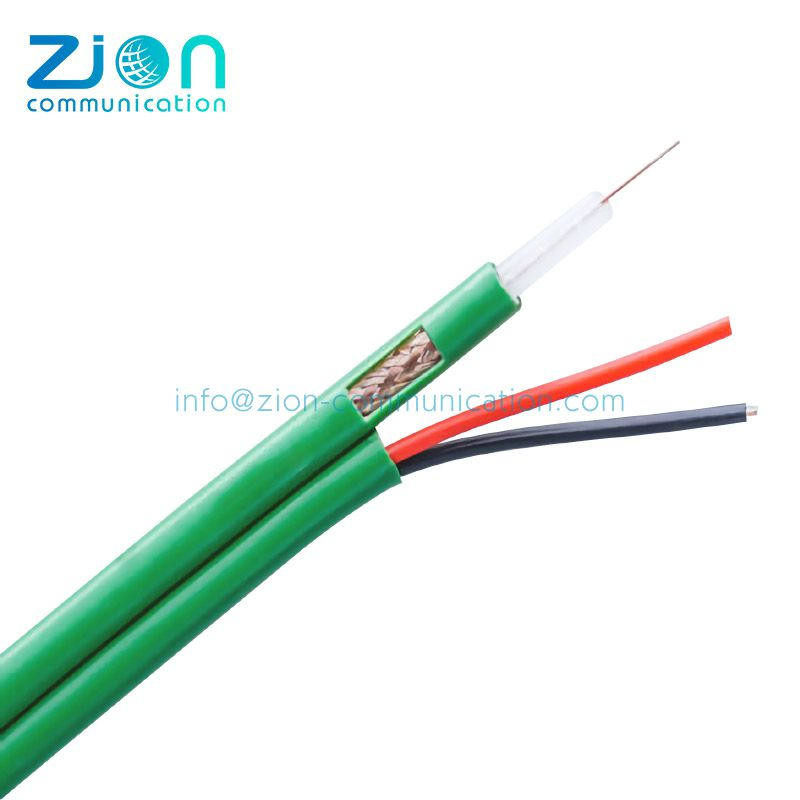

| KX6+2×0.50 PVC - Figure 8(NO.7102071) | ||
| Construction Parameters: | ||
| Inner Conductor: | 7 × 0.20mm Bare Copper | |
| Insulation: | 3.70mm SPE | |
| Shield: | 96x0.12mmCCA(85%) | |
| Jacket: | 6.00mm PVC Green | |
| Power Wire Conductor: | 2x16x0.20mm CCA = 0.50mm2 CCA | |
| Power Wire Insulation: | 1.60mm PVC in Red & Black | |
| Power Wire Jacket: | 4.00mm PVC Green | |
| Electrical Characteristics: | ||
| Inner Conductor Resistance | 87.5Ω/KM at 20℃ | |
| Capacitance | 67 ±3 pF/m | |
| Impedance | 75 ± 3 Ω | |
| Return Loss | between 5 and 1000MHz: > 22dB | |
| Velocity of Propagation | 0.85 | |
| Sparker Test (VAC) | 4 | |
| Mechanical and Envrionmental Properties: | ||
| Cable Bend Radius | 10 times the cable diameter | |
| Operating Temperature Range | -20 ℃ to +60℃ | |

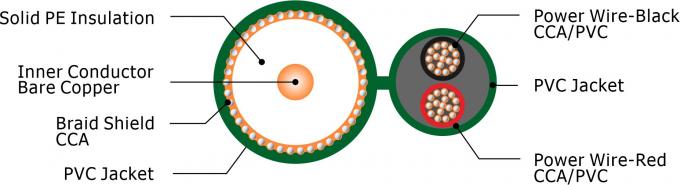

| Cross Section: | ||
 |
||
| Attenuation (20℃): | ||
| Frequency (MHZ) | Max Attenuation (dB/100m) | |
| 10 | 5.00 | |
| 50 | 8.10 | |
| 100 | 13.00 | |
| 200 | 18.50 | |
| 400 | 22.50 | |
| 850 | 34.50 | |
| 950 | 37.50 | |
| 1000 | 45.00 | |
| ※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested. | ||
| Order Informations: | ||
| Marking | HELLOSIGNAL KX6+2×0.50mm2 Figure 8 CCTV CABLE ...305M | |
| Inner Package | 300M or 500M/Wooden Spool/Carton | |
| Delivery time | Normally 25 days after received the deposit payment. | |
| Brand | HELLOSIGNAL® OR OEM | |
