| Place of Origin: | China |
|---|---|
| Brand Name: | hellosignal |
| Certification: | UL, CE, RoHS |
| Model Number: | CCTV SURVEILLANCE CABLE |
| Minimum Order Quantity: | 30 KM |
| Packaging Details: | 500FT, 1000FT Wooden Reel or Spool in Box |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3000KM / Month |
| Conductor: | Copper | Dielectric: | Foamed Polyethylene |
|---|---|---|---|
| Shield1: | Al Foil | Shield2: | CCA-Braid(48%) |
| Power Wire Conductor: | CCA | Power Wire Diameter Of Insulation: | PVC (Red,Black) |
| Jacket: | PVC/PE/LSZH |
|

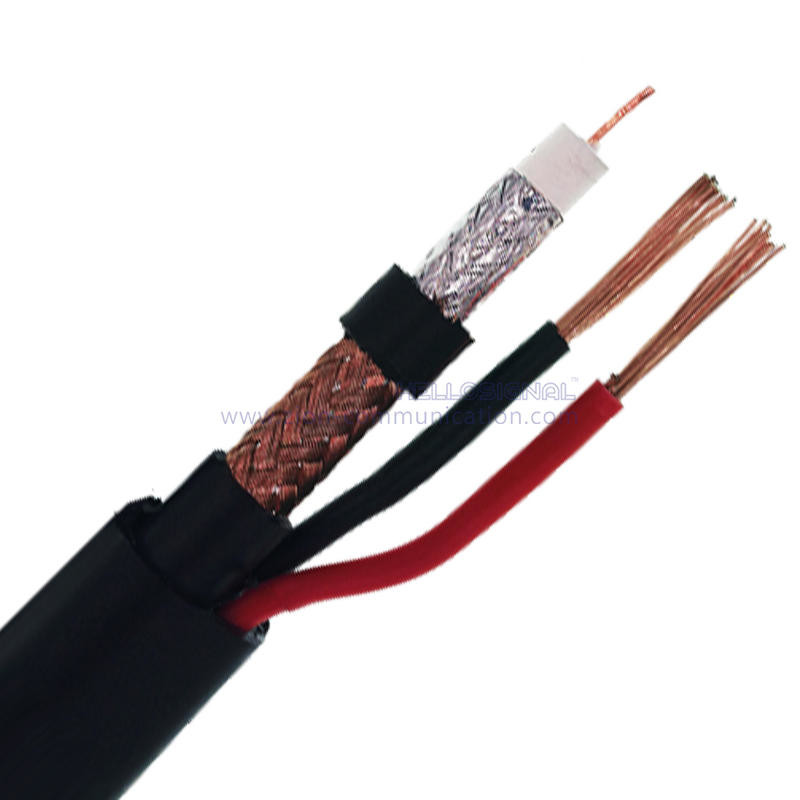

3C-2V+2x0.50,Common 75 Ohm CCTV coaxial Cable NO.7102063 |
||
| Construction Parameters: | ||
| Inner Conductor | 0.50mm Copper | |
| Dielectric | 3.2mm Foamed Polyethylene | |
| Shield 1 | Al Foil | |
| Shield 2 | 0.12mmCCA-Braid(48%) | |
| Jacket | 5.0mm PVC/PE/LSZH | |
| Power Wire Conductor | 2x(11*0.25mmCCA ) | |
| Power wire Diameter of insulation | 1.6mmPVC (Red,Black) | |
| Jacket | 6.6×8.2mm PVC/PE/LSZH | |
| Application | For Use in Longer CCTV Run Lengths | |
| Electrical Characteristics: | ||
| Inner Conductor Resistance | The Max. at 20℃ shall be<87.6Ω/km | |
| Capacitance | 69±4 pF/m | |
| Impedance | 75 ± 3 Ω | |
| Return loss | between 5 and 1000MHz: > 20dB | |
| Velocity of Propagation | ||
| Sparker Test (VAC) | 1 | |
| Mechanical and Envrionmental Properties | ||
| Cable bend radius | 10 times the cable diameter | |
| Operating Temp Range | -20 ℃ to 60℃ | |
| Cable diamensions | 6.6×8.2mm | |
| Cross Section | ||
 |
||
| Attenuation(20℃): | ||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
| 10 | 4.80 | |
| 30 | 8.30 | |
| 72 | 12.90 | |
| 88 | 14.20 | |
| 90 | 14.40 | |
| 135 | 17.60 | |
| 180 | 20.40 | |
| 220 | 22.50 | |
| 270 | 24.90 | |
| 440 | 31.80 | |
| 750 | 41.60 | |
| 770 | 42.10 | |
| Order Informations: | ||
| Marking | HELLOSIGNAL 3C-2V+2x0.50,Common CCTV COAXIAL CABLE 7102063 ×××M/FT |
|
| Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |
| Delivery time | Normally 25 days after received the deposit. | |
| Brand | HELLOSIGNAL® OR OEM | |
