| Place of Origin: | China |
|---|---|
| Brand Name: | hellosignal |
| Certification: | UL, CE, RoHS |
| Model Number: | CCTV SURVEILLANCE CABLE |
| Minimum Order Quantity: | 30 KM |
| Packaging Details: | 500FT, 1000FT Wooden Reel or Spool in Box |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3000KM / Month |
| Conductor: | 18AWG CCS | Dielectric: | Solid Polyethylene |
|---|---|---|---|
| Shield1: | Bonded Aluminum Foil Shield | Shield2: | AL Braid Wire 95% Coverage |
| Power Wire Conductor: | BC | Power Wire Diameter Of Insulation: | PE/PVC(Red,Black) |
| Jacket: | PVC |
|

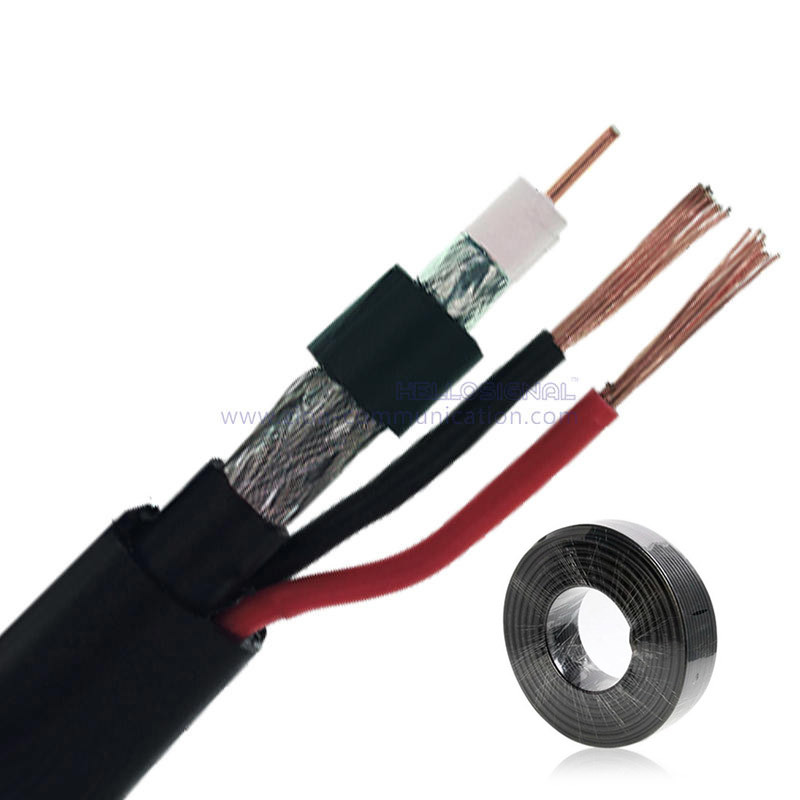

RG6/U+2C18AWG CM Common 75 Ohm CCTV coaxial Cable NO.7102006 |
||||
| Construction Parameters: | ||||
| Inner Conductor | 1.02mm/0.04"/18AWG Copper | |||
| Dielectric | 4.45mm/0.175" Foamed PE | |||
| Shield 1 | Bonded Aluminum Foil Shield | |||
| Shield 2 | AL braid wire 95% coverage | |||
| Jacket | 6.65mm PVC-CM | |||
| Power Wire Conductor | 2x18AWG/(16*0.25mm)BC | |||
| Power wire Diameter of insulation | 1.9mmPVC-CM(Red,Black) | |||
| Jacket | 10.15mmPVC-CM | |||
| Application | For Use in Longer CCTV Run Lengths | |||
| Electrical Characteristics: | ||||
| Inner Conductor Resistance |
The Max. at 20℃ shall be < 21.2 Ω/km (6.96 Ω/kft) |

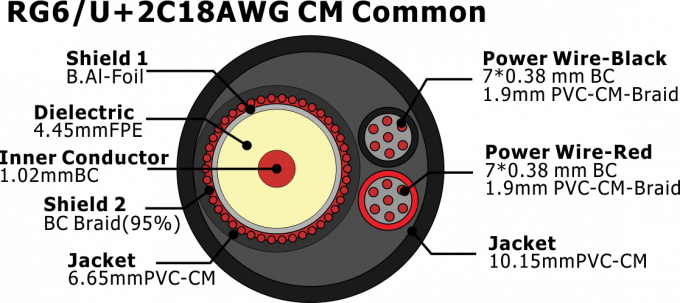

|||
| Capacitance | 52 ±3 pF/m 17±0.3 pF/ft | |||
| Impedance | 75 ± 3 Ω | |||
| Return loss | between 5 and 1000MHz: > 22dB | |||
| Velocity of Propagation | 0.85 | |||
| Sparker Test (VAC) | 4 | |||
| Mechanical and Envrionmental Properties | ||||
| Cable bend radius | 10 times the cable diameter | |||
| Operating Temp Range | -20 ℃ to 60℃ | |||
| Cable diamensions | 10.15mm | |||
| Cross Section | ||||
 |
||||
| Attenuation(20℃): | ||||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) | ||
| 5 | 0.58 | 1.90 | ||
| 55 | 1.60 | 5.25 | ||
| 83 | 1.95 | 6.40 | ||
| 187 | 2.85 | 9.35 | ||
| 211 | 3.05 | 10.00 | ||
| 250 | 3.30 | 10.82 | ||
| 300 | 3.55 | 11.64 | ||
| 350 | 3.85 | 12.63 | ||
| 400 | 4.15 | 13.61 | ||
| 450 | 4.40 | 14.43 | ||
| 500 | 4.66 | 15.29 | ||
| 550 | 4.90 | 16.08 | ||
| 600 | 5.10 | 16.73 | ||
| 750 | 5.65 | 18.54 | ||
| 865 | 6.10 | 20.01 | ||
| 1000 | 6.55 | 21.49 | ||
| Order Informations: | ||||
| Marking | HELLOSIGNAL RG6/U+2C18AWG CM Common CCTV COAXIAL CABLE 7102006 ×××M/FT |
|||
| Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |||
| Delivery time | Normally 25 days after received the deposit. | |||
| Brand | HELLOSIGNAL® OR OEM | |||
