| Place of Origin: | China |
|---|---|
| Brand Name: | hellosignal |
| Certification: | UL, CE, RoHS |
| Model Number: | CCTV SURVEILLANCE CABLE |
| Minimum Order Quantity: | 30 KM |
| Packaging Details: | 500FT, 1000FT Wooden Reel or Spool in Box |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3000KM / Month |
| Conductor: | 18AWG CCS | Dielectric: | Solid Polyethylene |
|---|---|---|---|
| Shield1: | Bonded Aluminum Foil Shield | Shield2: | AL Braid Wire 95% Coverage |
| Power Wire Conductor: | BC | Power Wire Diameter Of Insulation: | PE/PVC(Red,Black) |
| Jacket: | PVC |
|

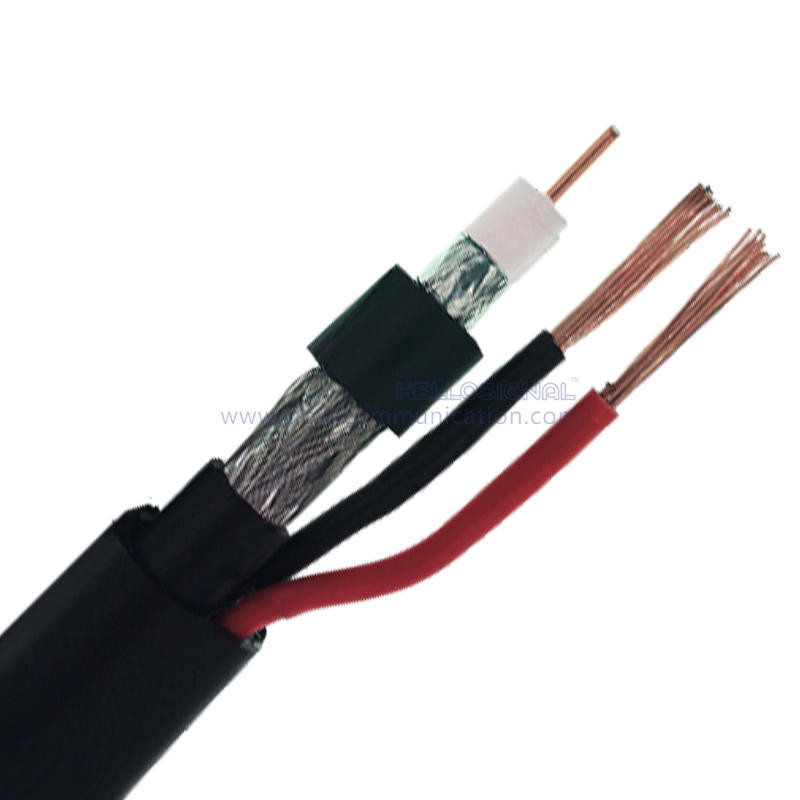

RG6/U+2C18AWG Common 75 Ohm CCTV coaxial Cable NO.7102005 |
||
| Construction Parameters: | ||
| Inner Conductor | 1.02mm/0.04"/18AWG CCS | |
| Dielectric | 4.45mm/0.175" Foamed PE | |
| Shield 1 | Bonded Aluminum Foil Shield | |
| Shield 2 | AL braid wire 95% coverage | |
| Jacket | 6.65mm PVC | |
| Power Wire Conductor | 2x18AWG/(16*0.254mm) CCA | |
| Power wire Diameter of insulation | 1.9mmPE/PVC(Red,Black) | |
| Jacket | 10.15mmPVC | |
| Application | For Use in Longer CCTV Run Lengths | |
| Electrical Characteristics: | ||
| Inner Conductor Resistance |
The Max. at 20℃ shall be < 87Ω/km (26.6 Ω/kft) |
|
| Capacitance | 52 ±3 pF/m 17±0.3 pF/ft | |
| Impedance | 75 ± 3 Ω | |
| Return loss | between 5 and 1000MHz: > 22dB | |
| Velocity of Propagation | 0.85 | |
| Sparker Test (VAC) | 4 | |
| Mechanical and Envrionmental Properties | ||
| Cable bend radius | 10 times the cable diameter | |
| Operating Temp Range | -20 ℃ to 60℃ | |
| Cable diamensions | 10.15mm | |
| Cross Section | ||
 |
||
| Attenuation(20℃): | ||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
| 5 | 0.58 | 1.90 |
| 55 | 1.60 | 5.25 |
| 83 | 1.95 | 6.40 |
| 187 | 2.85 | 9.35 |
| 211 | 3.05 | 10.00 |
| 250 | 3.30 | 10.82 |
| 300 | 3.55 | 11.64 |
| 350 | 3.85 | 12.63 |
| 400 | 4.15 | 13.61 |
| 450 | 4.40 | 14.43 |
| 500 | 4.66 | 15.29 |
| 550 | 4.90 | 16.08 |
| 600 | 5.10 | 16.73 |
| 750 | 5.65 | 18.54 |
| 865 | 6.10 | 20.01 |
| 1000 | 6.55 | 21.49 |
| Order Informations: | ||
| Marking | HELLOSIGNAL RG6/U+2C18AWG Common CCTV COAXIAL CABLE 7102005 ×××M/FT |
|
| Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |
| Delivery time | Normally 25 days after received the deposit. | |
| Brand | HELLOSIGNAL® OR OEM | |
