| Place of Origin: | China |
|---|---|
| Brand Name: | hellosignal |
| Certification: | UL, CE, RoHS |
| Model Number: | CCTV SURVEILLANCE CABLE |
| Minimum Order Quantity: | 30 KM |
| Packaging Details: | 500FT, 1000FT Wooden Reel or Spool in Box |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3000KM / Month |
| Conductor: | 18AWG Copper | Dielectric: | Solid Polyethylene |
|---|---|---|---|
| Shield1: | Bonded Aluminum Foil Shield | Shield2: | AL Braid Wire 95% Coverage |
| Power Wire Conductor: | BC | Power Wire Diameter Of Insulation: | PVC-CMP (Red,Black) |
| Jacket: | PVC-CMP |
|

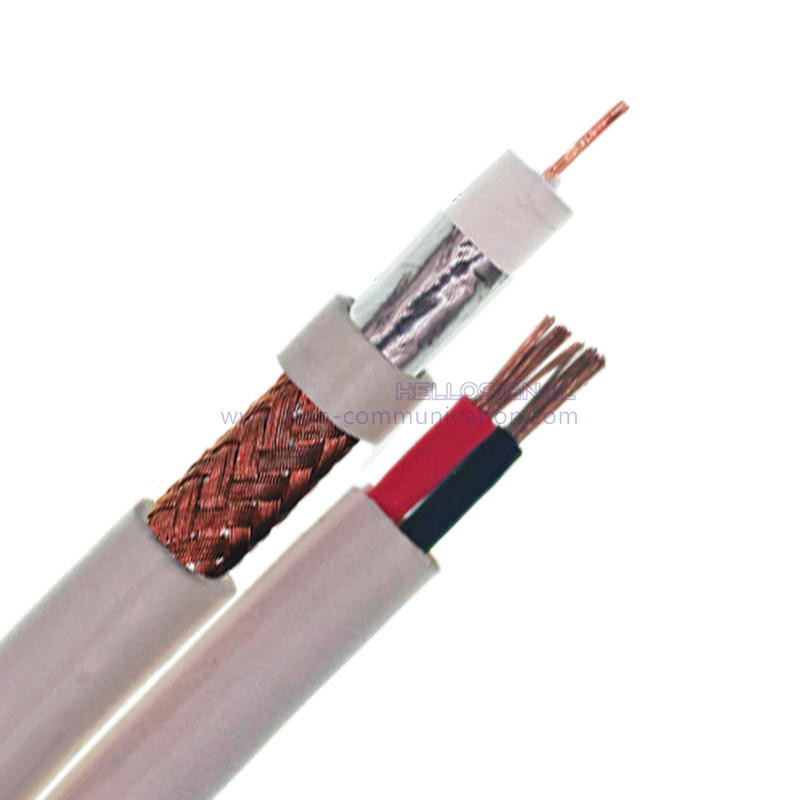

RG6/U+2C18AWG CMP Figure 8 75 Ohm CCTV coaxial Cable NO.7102004 |
||
| Construction Parameters: | ||
| Inner Conductor | 1.02mm/0.04"/18AWG Copper | |
| Dielectric | 4.32mm Foam FEP | |
| Shield 1 | Bonded Aluminum Foil Shield | |
| Shield 2 | BC braid wire 95% coverage | |
| Jacket | 5.9mm PVC-CMP | |
| Power Wire Conductor | 2x18AWG/(7*0.38 mm) BC | |
| Power wire Diameter of insulation | 1.6mmPVC-CMP (Red,Black) | |
| Jacket | 3.8mmPVC-CMP | |
| Application | For Use in Longer CCTV Run Lengths | |
| Electrical Characteristics: | ||
| Inner Conductor Resistance |
The Max. at 20℃ shall be < 21.2 Ω/km (6.96 Ω/kft) |
|
| Capacitance | 52 ±3 pF/m 17±0.3 pF/ft | |
| Impedance | 75 ± 3 Ω | |
| Return loss | between 5 and 1000MHz: > 22dB | |
| Velocity of Propagation | 0.85 | |
| Sparker Test (VAC) | 4 | |
| Mechanical and Envrionmental Properties | ||
| Cable bend radius | 10 times the cable diameter | |
| Operating Temp Range | -20 ℃ to 75℃ | |
| Cable diamensions | 5.9×3.8mm | |
| Cross Section | ||
 |
||
| Attenuation(20℃): | ||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
| 1 | 0.50 | 1.64 |
| 10 | 0.92 | 3.02 |
| 50 | 1.75 | 5.74 |
| 100 | 2.60 | 8.52 |
| 200 | 3.80 | 12.46 |
| 400 | 5.50 | 18.03 |
| 700 | 7.60 | 24.92 |
| 900 | 8.90 | 29.18 |
| 1000 | 9.30 | 30.49 |
| 1200 | 10.60 | 34.75 |
| 1450 | 12.00 | 39.34 |
| 1800 | 13.60 | 44.59 |
| 2200 | 14.80 | 48.52 |
| 3000 | 18.00 | 59.02 |
| Order Informations: | ||
| Marking | HELLOSIGNAL RG6/U+2C18AWG CMP Figure 8 CCTV COAXIAL CABLE 7101004 ×××M/FT |
|
| Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |
| Delivery time | Normally 25 days after received the deposit. | |
| Brand | HELLOSIGNAL® OR OEM | |
