| Place of Origin: | China |
|---|---|
| Brand Name: | hellosignal |
| Certification: | UL, CE, RoHS |
| Model Number: | CCTV SURVEILLANCE CABLE |
| Minimum Order Quantity: | 30 KM |
| Packaging Details: | 500FT, 1000FT Wooden Reel or Spool in Box |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3000KM / Month |
| Conductor: | Bare Copper | Dielectric: | Solid Polyethylene |
|---|---|---|---|
| Shield: | BC-Braid(95%) | Power Wire Conductor: | BC |
| Power Wire Diameter Of Insulation: | PVC(Red,Black) | Jacket: | PVC/PE/LSZH |
|

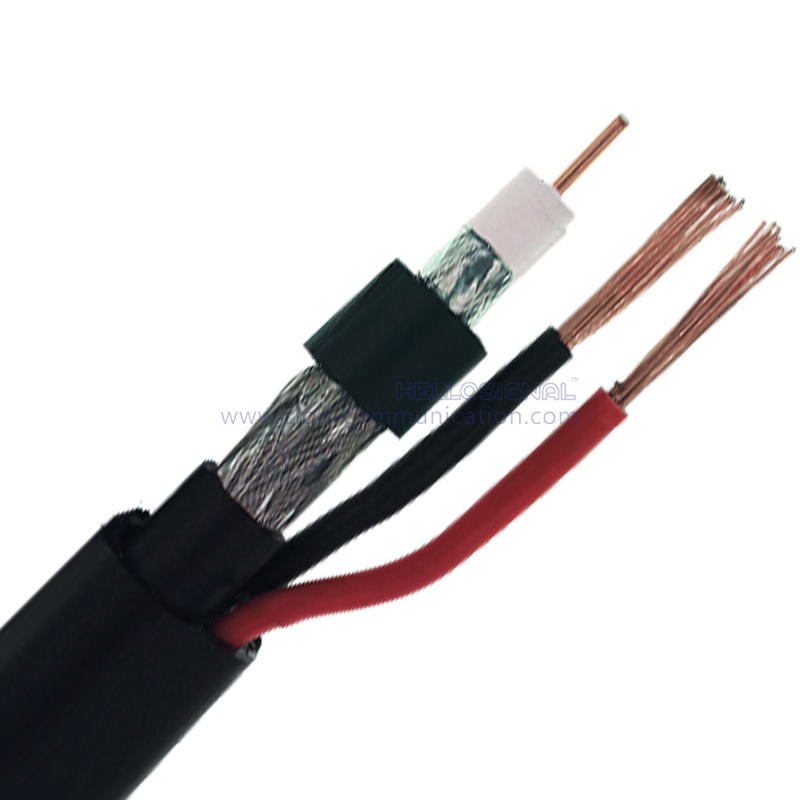

RG59CCS+2x0.75, Common 75 Ohm CCTV coaxial Cable NO.7102043 |
||
| Construction Parameters: | ||
| Inner Conductor | 0.643mm CCS | |
| Dielectric | 3.71mm Foamed Polyethylene | |
| Shield 1 | AL Foil | |
| Shield 2 | 0.12mmX32 AL wire | |
| Jacket | 6.0mm PVC/PE/LSZH | |
| Power Wire Conductor | 2x(16*0.25mmCCA ) | |
| Power wire Diameter of insulation | 2.0mmPVC (Red,Black) | |
| Jacket | 9.5×7.5mm PVC/PE/LSZH | |
| Application | For Use in Longer CCTV Run Lengths | |
| Electrical Characteristics: | ||
| Inner Conductor Resistance | 252.83Ohms/KM at 20℃ | |
| Capacitance | 62±2 pF/m | |
| Impedance | 75 ± 3 Ω | |
| Return loss | between 5 and 1000MHz: > 22dB | |
| Velocity of Propagation | 0.66 | |
| Sparker Test (VAC) | 3 | |
| Mechanical and Envrionmental Properties | ||
| Cable bend radius | 10 times the cable diameter | |
| Operating Temp Range | -20 ℃ to 60℃ | |
| Cable diamensions | 9.5×7.5mm | |
| Cross Section | ||
 |
||
| Attenuation(20℃): | ||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
| 5 | 0.66 | 2.16 |
| 50 | 2.07 | 6.78 |
| 100 | 2.92 | 9.58 |
| 300 | 5.06 | 16.58 |
| 450 | 6.19 | 20.31 |
| 865 | 8.58 | 28.15 |
| 1000 | 9.23 | 30.26 |
| 1750 | 12.20 | 40.03 |
| 2150 | 13.53 | 44.37 |
| 2500 | 14.59 | 47.84 |
| 3000 | 15.98 | 52.41 |
| Order Informations: | ||
| Marking | HELLOSIGNAL RG59CCS+2x0.75, Common CCTV COAXIAL CABLE 7102043 ×××M/FT |
|
| Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |
| Delivery time | Normally 25 days after received the deposit. | |
| Brand | HELLOSIGNAL® OR OEM | |
