| Place of Origin: | China |
|---|---|
| Brand Name: | hellosignal |
| Certification: | UL, CE, RoHS |
| Model Number: | CCTV SURVEILLANCE CABLE |
| Minimum Order Quantity: | 30 KM |
| Packaging Details: | 500FT, 1000FT Wooden Reel or Spool in Box |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3000KM / Month |
| Conductor: | Bare Copper | Dielectric: | Solid Polyethylene |
|---|---|---|---|
| Shield: | BC-Braid(95%) | Power Wire Conductor: | BC |
| Power Wire Diameter Of Insulation: | PVC(Red,Black) | Jacket: | PVC/PE/LSZH |
|

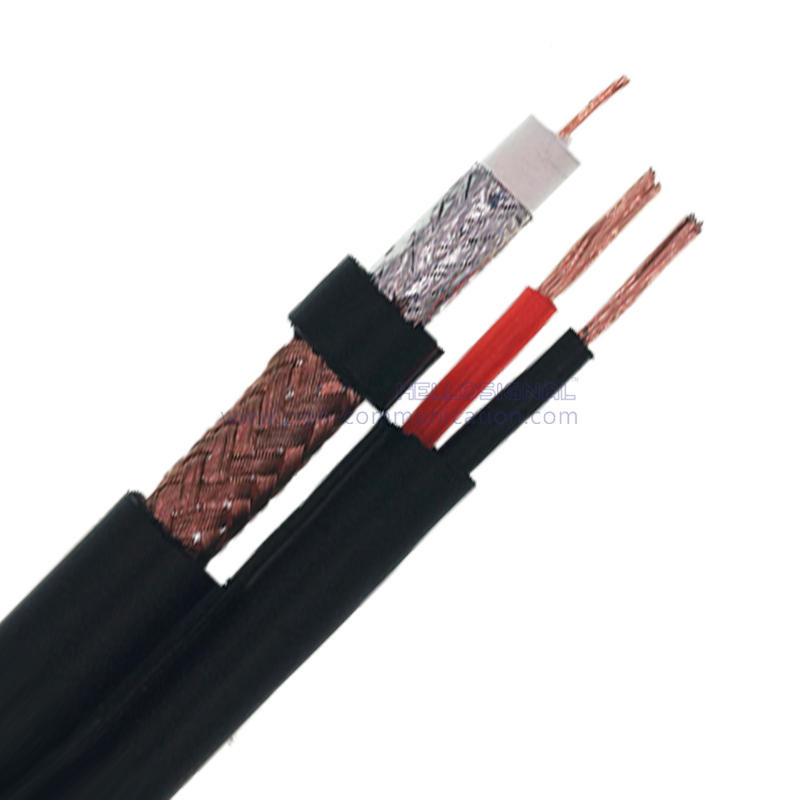

RG59 E 50% CCA + 2C0.75MM2 CCA Figure 8 75 Ohm CCTV coaxial Cable NO.7102041 |
||
| Construction Parameters: | ||
| Inner Conductor | 0.5mm Bare Copper | |
| Dielectric | 3.5mm Foamed Polyethylene | |
| Shield 1 | Al/PET-Foil | |
| Shield 2 | 0.12mmCCA-Braid(50%) | |
| Jacket | 5.6mm PVC/PE/LSZH | |
| Power Wire Conductor | 2x(16*0.25mmCCA ) | |
| Power wire Diameter of insulation | 2.0mmPVC (Red,Black) | |
| Jacket | 5.05mm PVC/PE/LSZH | |
| Application | For Use in Longer CCTV Run Lengths | |
| Electrical Characteristics: | ||
| Inner Conductor Resistance | 87.6 Ohms/KM at 20℃ | |
| Capacitance | 69±2 pF/m | |
| Impedance | 75 ± 3 Ω | |
| Return loss | between 5 and 1000MHz: > 22dB | |
| Velocity of Propagation | 0.66 | |
| Sparker Test (VAC) | 3 | |
| Mechanical and Envrionmental Properties | ||
| Cable bend radius | 10 times the cable diameter | |
| Operating Temp Range | -20 ℃ to 60℃ | |
| Cable diamensions | 5.6×5.05mm | |
| Cross Section | ||
 |
||
| Attenuation(20℃): | ||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
| 5 | 0.81 | 2.66 |
| 50 | 2.55 | 8.35 |
| 100 | 3.60 | 11.80 |
| 300 | 6.23 | 20.42 |
| 450 | 7.62 | 24.99 |
| 865 | 10.57 | 34.66 |
| 1000 | 11.36 | 37.26 |
| 1750 | 15.02 | 49.29 |
| 2150 | 16.65 | 54.62 |
| 2500 | 17.96 | 58.90 |
| 3000 | 19.67 | 64.52 |
| Order Informations: | ||
| Marking | HELLOSIGNAL RG59 E 50% CCA + 2C0.75MM2 CCA Figure 8 CCTV COAXIAL CABLE 7102041 ×××M/FT |
|
| Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |
| Delivery time | Normally 25 days after received the deposit. | |
| Brand | HELLOSIGNAL® OR OEM | |
