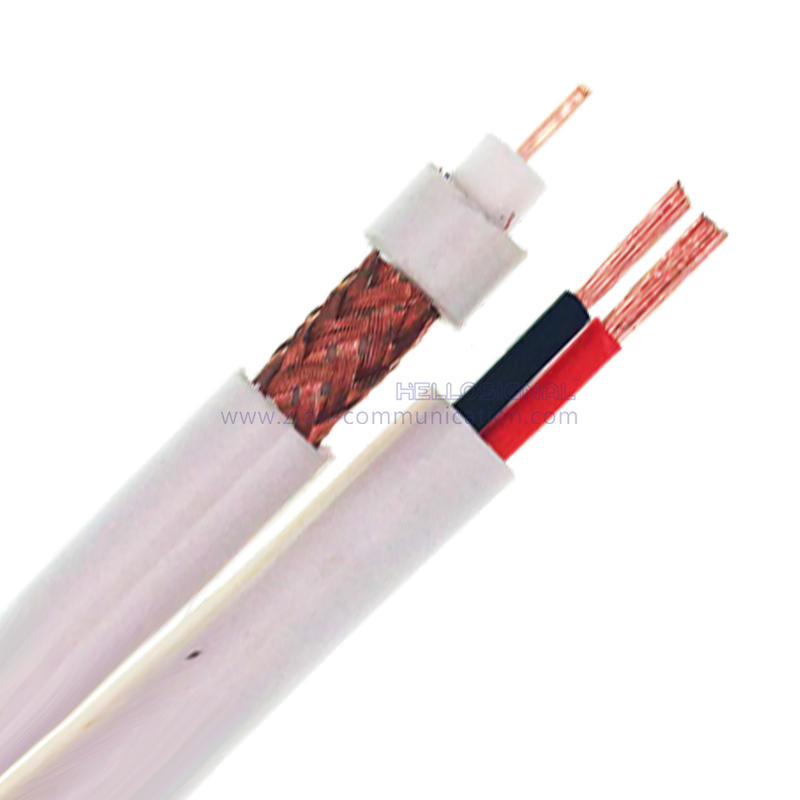

Rg59 Power 305m Rg59 2C Security Camera Siamese PVC-CMP Cable With Power

Basic Information

Place of Origin:	China
Brand Name:	KINGTONE or OEM
Certification:	UL, CE, RoHS
Model Number:	CCTV SURVEILLANCE CABLE

Minimum Order Quantity:	30 KM
Packaging Details:	500FT, 1000FT Wooden Reel or Spool in Box
Delivery Time:	25 working days
Payment Terms:	T/T, L/C
Supply Ability:	3000KM / Month

Get Best Price Contact Now

Detail Information

Conductor:	Bare Copper	Dielectric:	Foam FEP
Shield:	BC-Braid(95%)	Jacket:	PVC-CMR
Power Wire Conductor:	BC	Power Wire Diameter Of Insulation:	PVC-CMR (Red,Black)

Product Description


RG59/U +2C18AWG CMP Figure 8 75 Ohm CCTV coaxial Cable NO.7102023


Construction Parameters:
Inner Conductor	0.032"/0.81mm/20AWG Bare Copper
Dielectric	3.43±0.05mm Foam FEP
Shield	0.12mmBC-Braid(95%)
Jacket	5.1mmPVC-CMP
Power Wire Conductor	2x18AWG/(7*0.38mm) BC
Power wire Diameter of insulation	1.6mmPVC-CMP (Red,Black)
Jacket	3.8mmPVC-CMP
Application	For Use in Longer CCTV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance	The Max. at 20℃ shall be < 33.5Ω/km (10.3 Ω/kft)
Inner Conductor Resistance	The Max. at 20℃ shall be < 33.5Ω/km (10.3 Ω/kft)
Capacitance	52 ±3 pF/m 17±0.3 pF/ft
Impedance	75 ± 3 Ω
Return loss	between 5 and 1000MHz: > 22dB
Velocity of Propagation	0.85
Sparker Test (VAC)	4

Mechanical and Envrionmental Properties
Cable bend radius	10 times the cable diameter
Operating Temp Range	-20 ℃ to 75℃
Cable diamensions	5.1×3.8mm

Cross Section
















Attenuation(20℃):
Frequency (MHZ)	Max Attenuation(dB/100ft)	Max Attenuation (dB/100m)
1	0.34	1.11
10	1.05	3.44
100	3.60	11.80
200	5.20	17.05
400	7.70	25.25
700	10.80	35.41
900	12.40	40.66
1000	13.20	43.28









Order Informations:
Marking	HELLOSIGNAL RG59/U +2C18AWG CMP Figure 8 CCTV COAXIAL CABLE 7102023 ×××M/FT
Package	Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL^® OR OEM
