| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication |
| Model Number: | ZCPAC-01 |
| Minimum Order Quantity: | no limit |
| Packaging Details: | 10 PC / Plastic Bag |
| Delivery Time: | Normally 10 working days |
| Payment Terms: | T/T |
| Supply Ability: | no limit |
| Size: | 230*27*27 Mm | Material (simplified): | PA6 Or PA66 |
|---|---|---|---|
| Bearing Tensile: | 0.8 KN | Weight /PC: | 31g |
| High Light: | PA6 FTTH Clamp,FTTH Combination Clamp,PA66 FTTH Clamp |
||

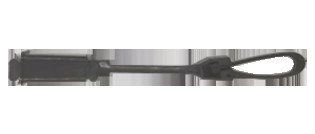

| FTTH combination clamp | |||||||||||
| Product Name |
SKU | Product Image |
Size | Material (simplified) | Material (Full Name) |
Bearing tensile |
Weight /PC |
Suit Cable picture |
Applicable Cable diameter |
Packing Details |
single box quantity |
| FTTH nylon cable clamp 01 |
ZCPAC- 01 | |
230*27*27 mm |
PA6 or PA66 | Polyamide 6 Polyamide 66 |
0.8KN | 31g | |
Φ2-8mm | Carton Size: 40*31*31cm Weight: 8.5KG |
250/Carton |
| FTTH nylon cable clamp 02 |
ZCPAC-02 | |
230*27*27 mm |
PA6 or PA66 | Polyamide 6 Polyamide 66 |
0.8KN | 44g | |
Φ2-8mm | Carton Size: 40*31*31cm Weight: 12KG |
250/Carton |
| FTTH nylon cable clamp 03 |
ZCPAC-03 | |
150*110*41mm | PA6 or PA66 | Polyamide 6 Polyamide 66 |
1.0 KN | 52g | |
Φ3-6mm | Carton Size: 55*41*25cm Weight: 14.5KG |
250/Carton |
| FTTH combination clamp 01 | ZCSPC-01 | |
150*100*25 mm |
201. 304 SS PA6 |
201 stainless steel 304 stainless steel Polyamide 6 |
0.6 KN | 32g | |
Φ2-5mm | Carton Size: 40*30*26cm Weight: 10KG |
300/Carton |
| FTTH combination clamp 02 | ZCSPC-02 | |
150*60*25 mm |
201. 304 SS PA6 |
201 stainless steel 304 stainless steel Polyamide 6 |
1.5 KN | 42g | |
Φ2-5mm | Carton Size: 40*30*26cm Weight: 13KG |
300/Carton |
| FTTH combination clamp 03 | ZCSPC-03 | |
125*35*33 mm |
201. 304 SS PA6 |
201 stainless steel 304 stainless steel Polyamide 6 |
1.2 KN | 35g | |
Φ2-5mm | Carton Size: 40*30*30cm Weight: 14.8KG |
400/Carton |
| FTTH combination clamp 04 | ZCSPC-04 | |
110*35*30 mm |
201. 304 SS PA6 |
201 stainless steel 304 stainless steel Polyamide 6 |
1.2 KN | 36g | |
Φ2-5mm | Carton Size: 40*30*30cm Weight: 15.2KG |
400/Carton |
| FTTH combination clamp 05 | ZCSPC-05 | |
140*35*60 mm |
201. 304 SS PA6 |
201 stainless steel 304 stainless steel Polyamide 6 |
1.2 KN | 38g | |
Φ2-5mm | Carton Size: 40*30*30cm Weight: 14KG |
350/Carton |
| FTTH combination clamp 06 | ZCSPC-06 | |
125*20*35mm | PA6 +201SS | Polyamide 6 +201 stainless steel |
0.5 KN | 28g | |
Φ2-5mm | Carton Size: 38*30*30cm Weight: 13.6KG |
500/Carton |
| FTTH combination clamp 07 | ZCSPC-07 | |
230*20*17 mm |
201 SS+PA6 | 201 stainless steel +Polyamide 6 |
0.9 KN | 39g | |
Φ2-8mm | Carton Size: 40*30*26cm Weight: 20KG |
500/Carton |
| FTTH combination clamp 08 | ZCSPC-08 | |
200*22*27 mm |
201 SS+PA6 | 201 stainless steel +Polyamide 6 |
0.9 KN | 42g | |
Φ2-8mm | Carton Size: 40*30*26cm Weight: 21.8KG |
500/Carton |
| FTTH combination clamp 09 | ZCSPC-09 | |
200*22*27 mm |
201 SS+PA6 | 201 stainless steel +Polyamide 6 |
0.9 KN | 38g | |
Φ2-8mm | Carton Size: 40*30*26cm Weight: 19.6KG |
500/Carton |
| FTTH combination clamp 10 | ZCSPC-10 | |
130*20*15mm | PA6 or ABS 201SS |
Polyamide 6 or Acrylonitrile Butadiene Styrene 201 stainless steel |
0.6 KN | 25g | |
Φ2-8mm | Carton Size: 40*30*25cm Weight: 13.5KG |
500/Carton |
| FTTH combination clamp 11 | ZCSPC-11 | |
130*20*15mm | PA6 or ABS 201SS |
Polyamide 6 or Acrylonitrile +Butadiene Styrene +201 stainless steel |
0.6 KN | 25g | |
Φ2-8mm | Carton Size: 40*30*25cm Weight: 13.5KG |
500/Carton |
| FTTH combination clamp 12 | ZCSPC-12 | |
130*25*15 mm |
PA6 +201SS | Polyamide 6 +201 stainless steel |
0.6 KN | 34g | |
Φ2-8mm | Carton Size: 40*30*25cm Weight: 17.8KG |
500/Carton |
| FTTH combination clamp 13 | ZCSPC-13 | |
180*20*25mm | PA6 +201SS | Polyamide 6 +201 stainless steel |
1.0 KN | 67g | |
Φ2-10mm | Carton Size: 38*30*30cm Weight: 14KG |
200/Carton |
