PVC Insulation CAVS Automotive Cable JASO D 611-94

Basic Information

Place of Origin:	China
Brand Name:	Zion communication OR OEM
Certification:	CE, RoHS, VDE, UL, CUL, LPCB
Model Number:	Automotive Cable

Minimum Order Quantity:	20 KM
Packaging Details:	100M, 200M, Roll, Carton
Delivery Time:	25 working days
Payment Terms:	T/T, L/C
Supply Ability:	1000KM / Month

Get Best Price Contact Now

Detail Information

Conductor:

Cu-ETP1 Or Bare According To DIN EN 13602

Insulation:

Standard Compliance:

JASO D 611-94

Technical Parameters:

Operating Temperature:–40 °C To +80 °C

Highlight:

CAVS Automotive Cable

JASO D 611-94 Automotive Cable

Product Description

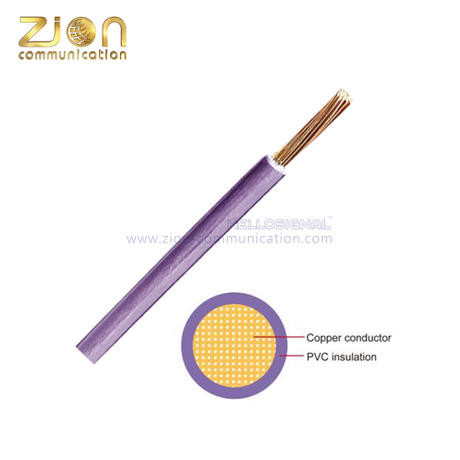

CAVS Automotive Cable
Product Description:
Conductor			Cu-ETP1 according to JIS C 3102
Insulation			PVC
Standard Compliance			JASO D 611-94
Technical Parameters			Operating temperature:–40°C to +80 °C
Application:
Automotive PVC insulated single-core low tension cable is used for automotive wiring.

Zion's Hot Types of CAVS Automotive cable
	Conductor				Insulation	Cable
Nominal cross- section	No. and Dia. of Wires	Diameter max.		Electrical resistance at 20°C max.	Thickness Wallnom.	Overall Diameter Min.	Overall Diameter max.	Weight approx.
mm²	No./mm	mm		mΩ/m	mm	mm	mm	Kg/km
1 x0.30	7/0.26	0.70		50.20	0.35	1.40	1.50	3.00
1 x0.50	7/0.32	0.90		32.70	0.35	1.60	1.70	5.00
1 x0.85	11/0.32	1.10		20.80	0.35	1.80	1.90	7.00
1 x1.25	16/0.32	1.40		14.30	0.35	2.10	2.20	10.00
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
