FL6Y2G Automotive Cable ISO 6722 Class F

Basic Information

Place of Origin:	China
Brand Name:	Zion communication OR OEM
Certification:	CE, RoHS, VDE, UL, CUL, LPCB
Model Number:	Automotive Cable

Minimum Order Quantity:	20 KM
Packaging Details:	100M, 200M, Roll, Carton
Delivery Time:	25 working days
Payment Terms:	T/T, L/C
Supply Ability:	1000KM / Month

Get Best Price Contact Now

Detail Information

Conductor:

Cu-ETP1 Or Bare According To DIN EN 13602

Insulation:

Fluorinated Ethylene Propylene(FEP) Insulation

Standard Compliance:

ISO 6722 Class F

Technical Parameters:

Operating Temperature:–40 °C To +210 °C

Highlight:

FL6Y2G Automotive Cable

ISO 6722 Class F Automotive Cable

Product Description

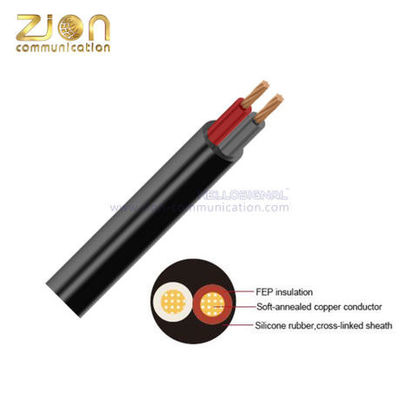

FL6Y2G Automotive Cable
Product Description:
Conductor			Cu-ETP1 or bare according to DIN EN 13602
Insulation			Fluorinated ethylene propylene(FEP) insulation
Standard Compliance			ISO 6722 Class F
Technical Parameters			Operating temperature:–40 °C to +210 °C
Application:
Automotive EVAinsulated ,PURsheathed multi-cores cable is used for ABS braking systems, wiring inside the engine compartment.

Zion's Hot Types of FL6Y2G Automotive cable
	Conductor				Insulation	Cable
Nominal cross- section	No. and Dia. of Wires	Diameter Max.		Electrical resistance at 20°C max.	Thickness wall Nom.	Sheath Thickness	Overall Diameter min.	Overall Diameter max.	Weight approx.
mm²	No./mm	mm		mΩ/m	mm	mm	mm	mm	Kg/km
2x0.35	12/0.21	0.80		52.00	0.40	0.53	4.60	5.00	32.00
2x0.25	24/0.16	0.70		86.50	0.40	0.53	3.40	3.80	24.00
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
