| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, RoHS, VDE, UL, CUL, LPCB |
| Model Number: | Automotive Cable |
| Minimum Order Quantity: | 20 KM |
| Packaging Details: | 100M, 200M, Roll, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Conductor: | Cu-ETP1 According To DIN EN13602 | Insulation: | Thermoplastic Polyester (TPE-E) |
|---|---|---|---|
| Sheath: | Thermoplastic Polyurethane (TPE-U) | Standard Compliance: | ISO 6722 Class C |
| Technical Parameters: | Operating Temperature:–40°C To + 125°C | ||
| High Light: | FLR13Y11Y Automotive Cable,Thermoplastic Polyester Automotive Cable |
||

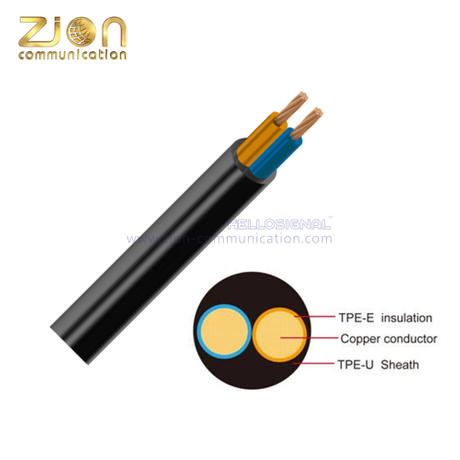

| FLR13Y11Y Automotive Cable | ||||||||||
| Product Description: | ||||||||||
| Conductor | Cu-ETP1 according to DIN EN13602 | |||||||||
| Insulation | Thermoplastic polyester (TPE-E) | |||||||||
| Sheath | Thermoplastic polyurethane (TPE-U) | |||||||||
| Standard Compliance | ISO 6722 Class C | |||||||||
| Technical Parameters | Operating temperature:–40 °C to +125 °C | |||||||||
| Application: | ||||||||||
| Automotive TPE-E insulated ,TPE-U sheathed low tension multi-cores cable is used for ABS systems, it has excellent abrasion resistance and better resistance to bending fatigue. | ||||||||||
|
||||||||||
| Zion's Hot Types of FLR13Y11Y Automotive cable | ||||||||||
| Conductor | Insulation Cable |
Cable | ||||||||
| Nominal cross- section |
No. and Dia. of Wires | Diameter Max. |
Electrical resistance at 20°C max. | Thickness wall Nom. |
Diameter of Core | Sheath Thickness | Overall Diameter Min. | Overall Diameter max. |
Weight approx. |
|
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | mm | mm | Kg/km | |
| 2 x 0.50 | 28 /0.16 | 1.00 | 37.10 | 0.20 | 1.40 | 0.60 | 3.85 | 4.15 | 22.00 | |
| 2 x 0.50 | 28 /0.16 | 1.00 | 37.10 | 0.20 | 1.40 | 0.85 | 4.35 | 4.65 | 27.00 | |
| 2 x 0.50 | 28 /0.16 | 1.00 | 37.10 | 0.35 | 1.70 | 0.80 | 4.80 | 5.20 | 32.00 | |
| 2 x 0.60 | 80/0.11 | 1.20 | 24.70 | 0.20 | 1.45 | 0.80 | 4.35 | 4.65 | 28.00 | |
| 2 x 0.75 | 42/0.16 | 1.20 | 27.10 | 0.30 | 1.80 | 1.30 | 6.00 | 6.40 | 48.00 | |
| 2 x 0.75 | 96 /0.10 | 1.20 | 27.10 | 0.30 | 1.80 | 1.30 | 6.00 | 6.40 | 62.00 | |
| Note: Other configurations, sizes, colors and length not specified herein are available upon request. | ||||||||||
