| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, RoHS, VDE, UL, CUL, LPCB |
| Model Number: | Automotive Cable |
| Minimum Order Quantity: | 20 KM |
| Packaging Details: | 100M, 200M, Roll, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Conductor: | Cu-ETP1 Bare According To DIN EN 13602 | Insulation: | XLPE(Crosslinked Polyethylene) |
|---|---|---|---|
| Sheath: | PUR(Polyether Polyurethane) | Standard Compliance: | ISO 6722 Class C |
| Technical Parameters: | Operating Temperature:–40°C To + 125°C | ||
| High Light: | FLR2X11Y Automotive Cable,PUR Sheathed Automotive Cable |
||

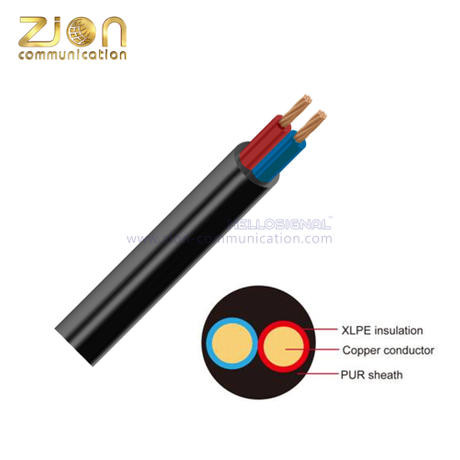

| FLR2X11Y Automotive Cable | ||||||||||
| Product Description: | ||||||||||
| Conductor | Cu-ETP1 bare or tinned according to DIN EN 13602 | |||||||||
| Insulation | XLPE(Crosslinked polyethylene) | |||||||||
| Sheath | PUR(Polyether polyurethane) | |||||||||
| Standard Compliance | ISO 6722 Class C | |||||||||
| Technical Parameters | Operating temperature:–40 °C to +125 °C | |||||||||
| Application: | ||||||||||
| Automotive XLPEinsulated, PURsheathed multi-cores cable is used for ABS systems. it has good bending strength properties. | ||||||||||
|
||||||||||
| Zion's Hot Types of FLR2X11Y Automotive cable | ||||||||||
| Conductor | Insulation Cable |
Cable | ||||||||
| Nominal cross- section |
No. and Dia. of Wires | Diameter Max. |
Electrical resistance at 20℃ Bare/tinned Max. | Thickness wall Nom. |
Diameter of Core | Sheath Thickness | Overall Diameter Min. | Overall Diameter max. |
Weight approx. |
|
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | mm | mm | Kg/km | |
| 2 x0.35 | 12/0.21 | 0.90 | 52.00/54.50 | 0.25 | 1.35 | 0.50 | 3.50 | 3.90 | 18.00 | |
| 2 x0.50 | 19/0.19 | 1.00 | 37.10/40.10 | 0.30 | 1.50 | 0.65 | 4.20 | 4.60 | 25.00 | |
| 2 x0.50 | 64/0.10 | 1.00 | 38.20/40.10 | 0.35 | 1.60 | 0.95 | 5.00 | 5.40 | 36.00 | |
| 2 x0.75 | 42/0.16 | 1.20 | 24.70/27.10 | 0.50 | 2.20 | 0.90 | 6.00 | 6.40 | 46.00 | |
| Note: Other configurations, sizes, colors and length not specified herein are available upon request. | ||||||||||
