| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, RoHS, VDE, UL, CUL, LPCB |
| Model Number: | Automotive Cable |
| Minimum Order Quantity: | 20 KM |
| Packaging Details: | 100M, 200M, Roll, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Conductor: | Cu-ETP1 Bare According To DIN EN 13602 | Insulation: | PVC |
|---|---|---|---|
| Sheath: | PVC, Lead Free | Standard Compliance: | ISO 6722 Class B |
| Special Properties: | Flame Retardant, Extra Flexibility, Cold Resistance Flexible Conductors With PVC Thick Wall Insulation With Increased Mechanical Strength | Technical Parameters: | Operating Temperature:–40°C To + 105°C |

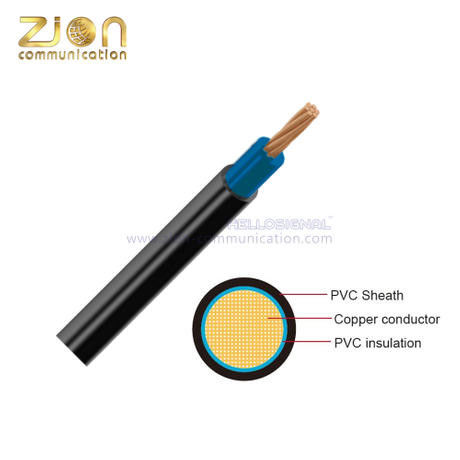

| FLYOY FLYKOY Automotive Cable | ||||||||||
| Product Description: | ||||||||||
| Conductor | Cu-ETP1 bare according to DIN EN 13602 | |||||||||
| Insulation | PVC | |||||||||
| Sheath | PVC, lead free | |||||||||
| Standard Compliance | ISO 6722 Class B | |||||||||
| Special properties | Flame retardant, Extra flexibility, Cold resistance Flexible conductors with PVC thick wall insulation with increased mechanical strength |
|||||||||
| Technical Parameters | Operating temperature:–40 °C to +105 °C | |||||||||
| Application: | ||||||||||
| This PVC insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting,charging,lighting,signal and instrument panel circuits. | ||||||||||
|
||||||||||
| Zion's Hot Types of FLYOY FLYKOY Automotive cable | ||||||||||
| Conductor | Insulation | Cable | ||||||||
| Nominal cross- section |
No. and Dia. of Wires | Diameter of Conductor max. |
Electrical resistance at 20°C max. | Nominal thickness | Sheath wall thickness | Overall Diameter Min. | Overall Diameter Max. | Weight approx. | ||
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | mm | Kg/km | ||
| 1x4 | 56/0.31 | 2.75 | 4.70 | 0.80 | 2.00 | 8.00 | 8.40 | 123.00 | ||
| 1x6 | 84/0.31 | 3.30 | 3.10 | 0.80 | 2.00 | 8.60 | 9.00 | 149.00 | ||
| 1x10 | 80/0.41 | 4.50 | 1.82 | 1.00 | 3.00 | 12.20 | 12.80 | 267.00 | ||
| 1x16 | 126/0.41 | 6.30 | 1.16 | 1.00 | 2.00 | 11.50 | 12.10 | 279.00 | ||
| 1x50 | 396/0.41 | 10.50 | 0.37 | 0.80 | 1.40 | 14.50 | 15.10 | 587.00 | ||
| 1x50 | 1600/0.21 | 10.90 | 0.39 | 0.80 | 1.40 | 14.50 | 15.10 | 592.00 | ||
| 1x70 | 2200/0.21 | 13.30 | 0.27 | 1.00 | 1.60 | 17.50 | 18.30 | 870.00 | ||
| Note: Other configurations, sizes, colors and length not specified herein are available upon request. | ||||||||||
