| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, RoHS, VDE, UL, CUL, LPCB |
| Model Number: | Automotive Cable |
| Minimum Order Quantity: | 20 KM |
| Packaging Details: | 100M, 200M, Roll, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Conductor: | Cu-ETP1 Bare According To DIN EN 13602 | Insulation: | PVC |
|---|---|---|---|
| Screen: | Copper Wire Spiral Shield | Sheath: | PVC |
| Standard Compliance: | ISO 6722 Class B | Special Properties: | Flame Retardant Flexible Conductors With PVC Thin Wall Insulation With Increased Mechanical Strength |
| Technical Parameters: | Operating Temperature:–40°C To + 105°C |

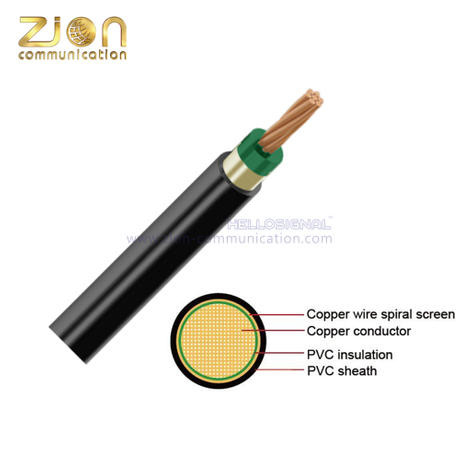

| FLRYDY Automotive Cable | ||||||||||
| Product Description: | ||||||||||
| Conductor | Cu-ETP1 bare according to DIN EN 13602 | |||||||||
| Insulation | PVC | |||||||||
| Screen | Copper wire spiral shield | |||||||||
| Sheath | PVC | |||||||||
| Standard Compliance | ISO 6722 Class B | |||||||||
| Special properties | Flame retardant Flexible conductors with PVC thin wall insulation with increased mechanical strength |
|||||||||
| Technical Parameters | Operating temperature:–40 °C to +105°C | |||||||||
| Application: | ||||||||||
| This PVC insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting,charging,lighting,signal and instrument panel circuits. | ||||||||||
|
||||||||||
| Zion's Hot Types of FLRYDY Automotive cable | ||||||||||
| Conductor | Insulation Cable |
Cable | ||||||||
| Nominal cross- section |
No. and Dia. of Wires | Diameter of Conductor max. | Electrical resistance at 20°C max. | Nominal thickness | Diameter of Core | Sheath Thickness | Overall Diameter Min. | Overall Diameter max. |
Weight approx. |
|
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | mm | mm | Kg/km | |
| 1x075 | 24/0.21 | 1.20 | 24.70 | 0.30 | 1.75 | 0.30 | 2.50 | 2.70 | 20.00 | |
| 1x1.00 | 32/0.21 | 1.35 | 18.50 | 0.30 | 1.95 | 0.30 | 2.70 | 2.90 | 23.00 | |
| 1x1.50 | 30/0.26 | 1.70 | 12.70 | 0.30 | 2.25 | 0.30 | 3.00 | 3.20 | 29.00 | |
| Note: Other configurations, sizes, colors and length not specified herein are available upon request. | ||||||||||
