FLYY Multi-Core Automotive Cable

Basic Information
Place of Origin: China
Brand Name: Zion communication OR OEM
Certification: CE, RoHS, VDE, UL, CUL, LPCB
Model Number: Automotive Cable
Minimum Order Quantity: 20 KM
Packaging Details: 100M, 200M, Roll, Carton
Delivery Time: 25 working days
Payment Terms: T/T, L/C
Supply Ability: 1000KM / Month
Detail Information
Conductor: Cu-ETP1 Bare According To DIN EN 13602 Insulation: PVC
Sheath: PVC Standard Compliance: ISO 6722 Class B
Technical Parameters: Operating Temperature:–40°C To To 105°C

Product Description

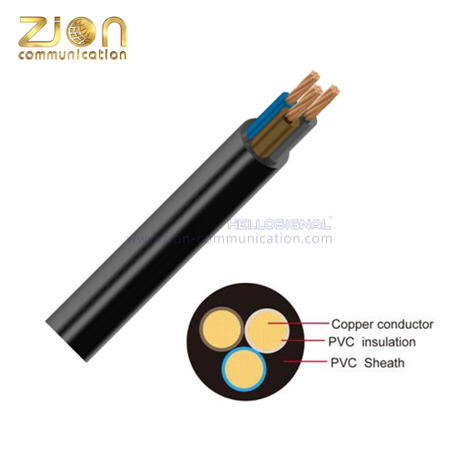

FLYY Multi-Core Automotive Cable
Product Description:
Conductor Cu-ETP1 bare or tinned according to DIN EN13602
Insulation PVC
Sheath PVC
Standard Compliance ISO 6722 Class B
Technical Parameters Operating temperature:–40 °C to 105 °C
Application:
Automotive PVC insulated, PVC sheathedlow tension multi-cores cable is used for automobiles, motorcycles and other motor vehicles.
FLYY Multi-Core Automotive Cable 0
Zion's Hot Types of FLYY Multi-Core Automotive cable
  Conductor Insulation
Cable
Cable
Nominal
cross-
section
No. and Dia. of Wires Diameter
Max.
Electrical resistance at 20°C max. Thickness
wall Nom.
Diameter of Core Sheath Thickness Overall Diameter Min. Overall
Diameter max.
Weight
approx.
mm2 No./mm mm mΩ/m mm mm mm mm mm Kg/km
2x 0.50 16/0.21 1.00 37.10/38.20 0.50 1.75 0.50 4.30 4.70 31.00
2x 0.75 24/0.21 1.20 24.70/25.40 0.60 2.30 0.50 5.40 5.80 48.00
2x 1.00 32/0.21 1.35 18.50/19.10 0.60 2.50 0.80 6.40 6.80 65.00
2x 1.50 30/0.26 1.70 12.70/13.00 0.60 2.75 0.90 7.00 7.50 83.00
3x 0.50 16/0.21 1.00 37.10/38.20 0.50 2.10 0.60 5.80 6.20 53.00
3x 0.75 24/0.21 1.20 24.70/25.40 0.60 2.30 0.60 5.70 6.30 60.00
3x 1.00 32/0.21 1.35 18.50/19.10 0.60 2.50 0.90 6.90 7.50 81.00
3x 1.50 30/0.26 1.70 12.70/13.00 0.60 2.65 0.70 6.90 7.50 98.00
Note: Other sizes, colors and length not specified herein are available upon request.
