| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, RoHS, VDE, UL, CUL, LPCB |
| Model Number: | Automotive Cable |
| Minimum Order Quantity: | 20 KM |
| Packaging Details: | 100M, 200M, Roll, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Conductor: | Cu-ETP1 Bare According To DIN EN 13602 | Insulation: | PVC |
|---|---|---|---|
| Sheath: | PVC | Standard Compliance: | ISO 6722 Class B |
| Technical Parameters: | Operating Temperature:–40°C To To 105°C |

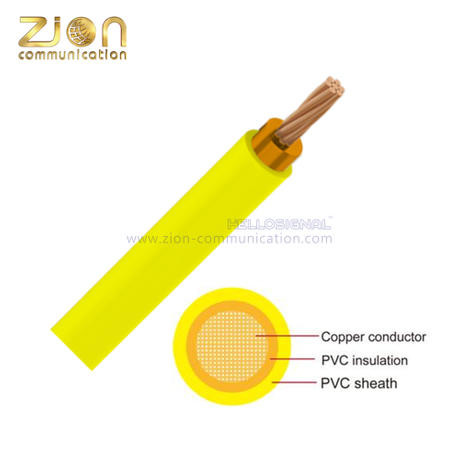

| FLYY Single-core Automotive Cable | ||||||||||
| Product Description: | ||||||||||
| Conductor | Cu-ETP1 bare according to DIN EN 13602 | |||||||||
| Insulation | PVC | |||||||||
| Sheath | PVC | |||||||||
| Standard Compliance | ISO 6722 Class B | |||||||||
| Technical Parameters | Operating temperature:–40 °C to 105 °C | |||||||||
| Application: | ||||||||||
| Automotive PVC insulated single-core unshielded low-tension wire is used for automobiles, Motorcycles and other motor vehicles. | ||||||||||
|
||||||||||
| Zion's Hot Types of FLYY Single-core Automotive cable | ||||||||||
| Conductor | Insulation Cable |
Cable | ||||||||
| Nominal cross- section |
No. Dia. / Wire | Diameter Max. |
Electrical resistance at 20°C max. | Thickness wall Nom. |
Diameter of Core | Sheath Thickness | Overall Diameter Min. | Overall Diameter max. |
Weight approx. |
|
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | mm | mm | Kg/km | |
| 1x0.50 | 16/0.21 | 1.00 | 37.10 | 0.60 | 2.10 | 0.40 | 2.70 | 3.10 | 14.00 | |
| 1x0.75 | 24/0.21 | 1.20 | 24.70 | 0.60 | 2.30 | 0.40 | 3.00 | 3.30 | 17.00 | |
| 1x1.00 | 32/0.21 | 1.35 | 18.50 | 0.60 | 2.50 | 0.40 | 3.20 | 3.60 | 20.00 | |
| 1x1.50 | 30/0.26 | 1.70 | 12.70 | 0.60 | 2.80 | 0.50 | 3.70 | 4.10 | 28.00 | |
| 1x2.00 | 40/0.26 | 2.00 | 9.42 | 0.60 | 3.00 | 0.50 | 3.90 | 4.30 | 33.00 | |
| 1x2.50 | 50/0.26 | 2.20 | 7.60 | 0.70 | 3.50 | 0.50 | 4.30 | 4.80 | 41.00 | |
| Note: Other configurations, sizes, colors and length not specified herein are available upon request. | ||||||||||
