| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, RoHS, VDE, UL, CUL, LPCB |
| Model Number: | Automotive Cable |
| Minimum Order Quantity: | 20 KM |
| Packaging Details: | 100M, 200M, Roll, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Conductor: | Cu-ETP1 Bare According To DIN EN13602 | Insulation: | PVC |
|---|---|---|---|
| Standard Compliance: | ISO 6722 Class C | Technical Parameters: | Operating Temperature:–40°C To +105°C |

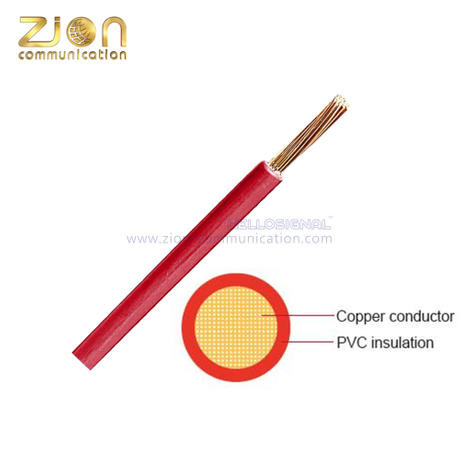

| FLYW Automotive Cable | ||||||||||||||
| Product Description: | ||||||||||||||
| Conductor | Cu-ETP1 bare according to DIN EN13602 | |||||||||||||
| Insulation | PVC | |||||||||||||
| Standard Compliance | ISO 6722 Class C | |||||||||||||
| Technical Parameters | Operating temperature:–40 °C to 105 °C | |||||||||||||
| Application: | ||||||||||||||
| Automotive PVC insulated single-core wire is used for automobiles, motorcycles and other motor vehicles. It has good heat resistant. | ||||||||||||||
|
||||||||||||||
| Zion's Hot Types of FLYW Automotive cable | ||||||||||||||
| Conductor | Insulation | Cable | ||||||||||||
| Nominal cross- section |
No. and Dia. of Wires |
Diameter Max. |
Electrical resistance at 20°C max. | Thickness wall Nom. |
Overall diameter min. | Overall Diameter max. |
Weight approx. |
|||||||
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | Kg/km | |||||||
| 1x0.50 | 16 /0.20 | 1.00 | 37.10 | 0.48 | 2.00 | 2.30 | 8.00 | |||||||
| 1x0.75 | 24/0.20 | 1.20 | 24.70 | 0.48 | 2.20 | 2.50 | 11.00 | |||||||
| 1x1.00 | 32/0.20 | 1.35 | 18.50 | 0.48 | 2.40 | 2.70 | 15.00 | |||||||
| 1x1.50 | 30/0.25 | 1.70 | 12.70 | 0.48 | 2.70 | 3.00 | 20.00 | |||||||
| 1x2.50 | 50/0.25 | 2.20 | 7.60 | 0.56 | 3.30 | 3.60 | 32.00 | |||||||
| 1x4.00 | 56/0.31 | 2.75 | 4.71 | 0.64 | 4.00 | 4.40 | 48.00 | |||||||
| 1x6.00 | 84/0.31 | 3.30 | 3.14 | 0.64 | 4.60 | 5.00 | 68.00 | |||||||
| 1x10.00 | 80/0.40 | 4.50 | 1.82 | 0.80 | 6.00 | 6.50 | 117.00 | |||||||
| 1x16.00 | 126/0.40 | 5.20 | 1.16 | 0.80 | 8.00 | 8.30 | 193.00 | |||||||
| 1x25.00 | 196/0.40 | 6.50 | 0.70 | 1.04 | 10.10 | 10.40 | 274.00 | |||||||
| 1x35.00 | 276/0.40 | 7.70 | 0.50 | 1.04 | 11.30 | 11.60 | 397.00 | |||||||
| 1x50.00 | 396/0.40 | 9.20 | 0.30 | 1.20 | 13.20 | 13.50 | 547.00 | |||||||
| 1x70.00 | 556/0.40 | 11.00 | 0.20 | 1.20 | 15.20 | 15.50 | 769.00 | |||||||
| 1x95.00 | 741/0.40 | 14.80 | 0.20 | 1.28 | 17.00 | 18.00 | 990.00 | |||||||
| Note: Other configurations, sizes, colors and length not specified herein are available upon request. | ||||||||||||||
