| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, RoHS, VDE, UL, CUL, LPCB |
| Model Number: | Automotive Cable |
| Minimum Order Quantity: | 20 KM |
| Packaging Details: | 100M, 200M, Roll, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Conductor: | Soft-annealed Copper According To ASTM B | Insulation: | XLPE Ultra-Thin Wall Flame-retardant,halogen-free |
|---|---|---|---|
| Standard Compliance: | SAE J1678 | Special Properties: | Flexible |
| Technical Parameters: | –40°C To +125°C |

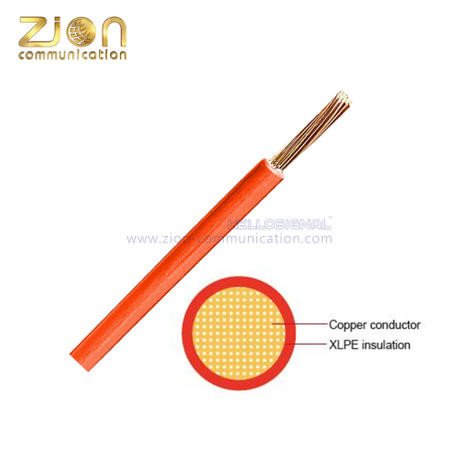

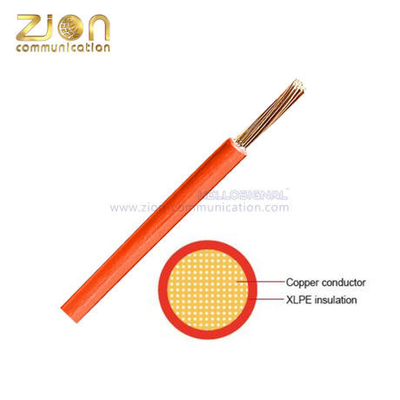

| WXC Automotive Cable | ||||||
| Product Description: | ||||||
| Conductor | Soft-annealed copper according to ASTM B | |||||
| Insulation | XLPE Ultra-Thin wall flame-retardant,halogen-free | |||||
| Standard Compliance | SAE J1678 | |||||
| Special properties | Flexible | |||||
| Technical Parameters | –40°C to +125°C | |||||
| Application: | ||||||
| This XLPE insulated low-voltage cable is designed for used at nominal voltage of 60v dc (60V AC rms) or surface vehicles electrical systems. | ||||||
|
||||||
| Zion's Hot Types of WXC Automotive cable | ||||||
| Type | Conductor | Insulation | Cable | |||
| SIZE | Nominal cross- section |
No. and Dia. of Wires |
Diameter of Conductor max. |
Nominal thickness | Overall Diameter Max. |
Weight approx. |
| AWG | mm2 | No./mm | mm | mm | mm | Kg/km |
| 22 | 1x0.35 | 7/0.25 | 0.76 | 0.2 | 1.4 | 4.0 |
| 20 | 1x0.50 | 7/0.32 | 0.97 | 0.2 | 1.6 | 7.0 |
| 18 | 1x0.80 | 19/0.23 | 1.17 | 0.2 | 1.8 | 8.0 |
| 16 | 1x1.3 | 19/0.28 | 1.45 | 0.2 | 2.0 | 12.0 |
| 14 | 1x2 | 19/0.36 | 1.8 | 0.2 | 2.4 | 19.0 |
| 12 | 1x3 | 19/0.45 | 2.3 | 0.24 | 3.0 | 30.0 |
| * Note: Other configurations, sizes, colors and length not specified herein are available upon request. | ||||||
