| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, RoHS, VDE, UL, CUL, LPCB |
| Model Number: | Automotive Cable |
| Minimum Order Quantity: | 20 KM |
| Packaging Details: | 100M, 200M, Roll, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Conductor: | Soft-annealed Copper According To ASTM B3 | Insulation: | PVC |
|---|---|---|---|
| Standard Compliance: | SAE J1128 | Technical Parameters: | Operating Temperature:–40 °C To +80 °C (3000 Hrs) |

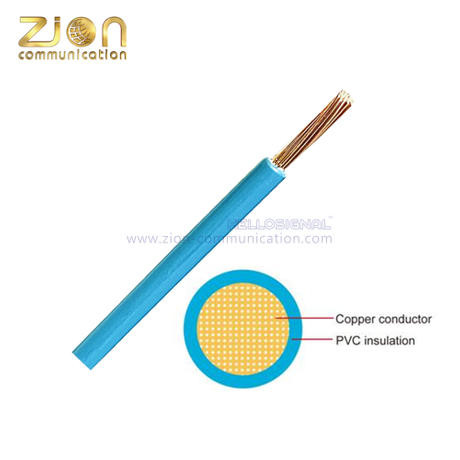

| TWP Automotive Cable | |||||||
| Product Description: | |||||||
| Conductor | Soft-annealed copper according to ASTM B3 | ||||||
| Insulation | PVC | ||||||
| Standard Compliance | SAE J1128 | ||||||
| Technical Parameters | Operating temperature:–40 °C to +80 °C (3000 hrs) | ||||||
| Application: | |||||||
| Automotive PVC insulated single-core cable is used in automotive applications where small diameter and minimal weight is required. | |||||||
|
|||||||
| Zion's Hot Types of TWP Automotive cable | |||||||
| Type | Conductor | Insulation | Cable | ||||
| SIZE | Nominal cross- section |
No. and Dia. of Wires |
Diameter Max. |
Thickness wall min. |
Thickness wall Nom. |
Overall Diameter max. |
Weight approx. |
| AWG | mm2 | No./mm | mm | mm | mm | mm | Kg/km |
| 22 | 1 x 0.35 | 7/0.25 | 0.76 | 0.28 | 0.40 | 1.70 | 6.0 |
| 20 | 1 x 0.50 | 7/0.32 | 0.97 | 0.28 | 0.40 | 1.90 | 8.0 |
| 18 | 1 x 0.80 | 16/0.25 | 1.17 | 0.28 | 0.40 | 2.20 | 11.0 |
| 18 | 1 x 0.80 | 19/0.23 | 1.17 | 0.28 | 0.40 | 2.20 | 11.0 |
| 16 | 1 x 1.00 | 19/0.28 | 1.45 | 0.28 | 0.40 | 2.40 | 15.0 |
| 14 | 1 x 2.00 | 19/0.36 | 1.8 | 0.28 | 0.40 | 2.70 | 22.0 |
| 12 | 1 x 3.00 | 19/0.45 | 2.29 | 0.32 | 0.46 | 3.30 | 34.0 |
| 10 | 1 x 5.00 | 19/0.57 | 2.87 | 0.35 | 0.50 | 4.00 | 53.0 |
| 8 | 1 x 8.00 | 49/0.46 | 4.06 | 0.39 | 0.55 | 4.90 | 85.0 |
| * For SAE J1128 Applications only Note: Other configurations, sizes, colors and length not specified herein are available upon request. |
|||||||
