| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, RoHS, VDE, UL, CUL, LPCB |
| Model Number: | Automotive Cable |
| Minimum Order Quantity: | 20 KM |
| Packaging Details: | 100M, 200M, Roll, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Conductor: | Soft-annealed Copper According To ASTM B3 | Insulation: | PVC |
|---|---|---|---|
| Standard Compliance: | SAE J1128 | Technical Parameters: | Operating Temperature:–40 °C To +80 °C |

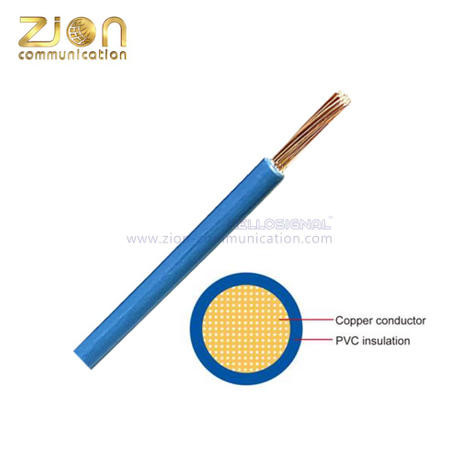

| GPT Automotive Cable | |||||||
| Product Description: | |||||||
| Conductor | Soft-annealed copper according to ASTM B3 | ||||||
| Insulation | PVC | ||||||
| Standard Compliance | SAE J1128 | ||||||
| Technical Parameters | Operating temperature:–40 °C to +80 °C | ||||||
| Application: | |||||||
| Automotive PVC insulated single-core cable is used in automotive applications for general circuit wiring and automotive or marine applications where 105°C is required. | |||||||
|
|||||||
| Zion's Hot Types of GPT Automotive cable | |||||||
| Type | Conductor | Insulation | Cable | ||||
| SIZE | Nominal cross- section |
No. and Dia. of Wires |
Diameter Max. |
Thickness wall min. |
Thickness wall Nom. |
Overall Diameter max. |
Weight approx. |
| AWG | mm2 | No./mm | mm | mm | mm | mm | Kg/km |
| 22* | 1 x 10.35 | 7/0.25 | 0.76 | - | 0.58 | 2.10 | 7.0 |
| 20 | 1 x 0.50 | 7/0.32 | 0.97 | 0.41 | 0.58 | 2.40 | 10.0 |
| 18 | 1 x 0.80 | 16/0.25 | 1.17 | 0.41 | 0.58 | 2.50 | 12.0 |
| 18 | 1 x 0.80 | 19/0.23 | 1.17 | 0.41 | 0.58 | 2.50 | 12.0 |
| 16 | 1 x 1.00 | 19/0.28 | 1.45 | 0.41 | 0.58 | 2.90 | 17.0 |
| 14 | 1 x 2.00 | 19/0.36 | 1.8 | 0.41 | 0.58 | 3.20 | 25.0 |
| 12 | 1x 3.00 | 19/0.45 | 2.29 | 0.46 | 0.66 | 3.80 | 38.0 |
| 10 | 1 x 5.00 | 19/0.57 | 2.87 | 0.55 | 0.79 | 4.70 | 59.0 |
| 8** | 1 x 8.00 | 19/0.724 | 3.26 | 0.66 | 0.94 | 6.00 | 96.0 |
| *for Ford ESF M1L56-A Applications only ** For SAE J1128 and UTMS applications only Note: Other configurations, sizes, colors and length not specified herein are available upon request. |
|||||||
