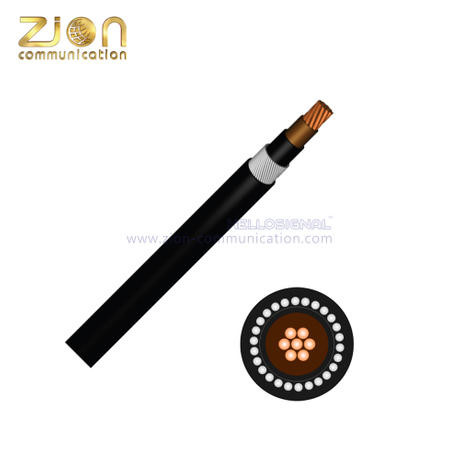

CU/XLPE/PVC/AWA/PVC 0.6/1KV Cable

Basic Information
Place of Origin: China
Brand Name: Zion communication OR OEM
Certification: CE, RoHS, VDE, UL, CUL, LPCB
Model Number: CU/XLPE/PVC/AWA/PVC 0.6/1KV Cable
Minimum Order Quantity: 20 KM
Packaging Details: 100M, 200M, Roll, Carton
Delivery Time: 25 working days
Payment Terms: T/T, L/C
Supply Ability: 1000KM / Month
Detail Information
Conductor: Stranded Plain Annealed Circular Copper Conductor Insulation: Cross Linked Polyethylene (XLPE)
Bedding: PVC Armour: Aluminium Wire
Sheath: PVC

Product Description

CU/XLPE/PVC/AWA/PVC 0.6/1KV Cable

CU/XLPE/PVC/AWA/PVC 0.6/1KV Cable 0

CU/XLPE/PVC/AWA/PVC 0.6/1KV Cable 1



Application: Cable Standards:
General single core PVC cable with aluminium wire armour(AWA)
control / power cable for fixed wiring arrangements and power networks.
Suitable for underground, indoor and outdoor use in cable ducting.
Flame propagation to BS EN 60332-1-2
BS5467
IEC/EN 60228

Product Description:
Conductor Stranded Plain Annealed Circular Copper Conductor
Insulation Cross Linked Polyethylene (XLPE)
Bedding PVC
Armour Aluminium Wire
Sheath PVC

Characteristics:
Voltage Rating 600/1000 Volts
Temperature Limits -15°C to +90°C

Core Identification:
Brown Inner

Should not be installed at temperatures below 0°C or above +60°C

CU/XLPE/PVC/AWA/PVC 0.6/1KV Cable 2



Dimensions:
Zion Code Conductor Size (mm2) Stranding (mm) No. Of
Cores
Weight Kg/km Overall
Diameter
(mm)
Brass
A2
Nylon
A2
Nylon
Cleat
Trefoil
Cleat
71501-50 50 19/1.78 1 638 17.70 20 25 0.7 -
71501-70 70 19/2.14 1 891 19.60 25 32 0.8 -
71501-95 95 19/2.52 1 1166 21.50 25 32 0.9 -
71501-120 120 37/2.03 1 1412 23.10 25 32 1.0 -
71501-150 150 37/2.25 1 1800 26.00 32 40 1.1 -
71501-185 185 37/2.52 1 2200 28.00 32 40 1.2 TASB04
71501-240 240 61/2.25 1 2800 32.00 40 50S 1.4 TASB06
71501-300 300 61/2.52 1 3400 33.00 40 50S 1.4 TASB06
71501-400 400 61/2.85 1 4450 38.00 40 50 1.6 TASB10
71501-500 500 61/3.2 1 5550 43.00 50S 63S 1.8 TASB13
71501-630 630 127/2.52 1 7100 47.00 50 63S 2.0 TASB15




Current Carrying Capacity:
THE ABOVE IS IN ACCORDANCE WITH 18TH EDITION OF IET WIRING REGULATIONS
CONDUCTOR CROSS – SECTIONAL AREA REFERENCE METHOD C (CLIPPED DIRECT) REFERENCE METHOD F (IN FREE AIR ON A PERFORATED CABLE TRAY HORIZONTAL / VERTICAL)
TOUCHING TOUCHING SPACED BY ONE DIAMETER
2 CABLES, SINGLE - PHASE AC OR DC FLAT 3 OR 4
CABLES, 3 PHASE AC FLAT
2 CABLES, SINGLE - PHASE AC OR DC FLAT 3 CABLES,
3 PHASE AC FLAT
3 CABLES, THREE - PHASE AC TREFOIL 2 CABLES DC 2 CABLES, SINGLE PHASE AC 3 OR 4 CABLES,
THREE-PHASE AC FLAT
HORIZONTAL VERTICAL HORIZONTAL VERTICAL HORIZONTAL VERTICAL
1 2 3 4 5 6 7 8 9 10 11 12
(MM²) (A) (A) (A) (A) (A) (A) (A) (A) (A) (A) (A)
50 237 220 253 232 222 284 270 282 266 288 266
70 303 277 322 293 285 356 349 357 337 358 331
95 367 333 389 352 346 446 426 436 412 425 393
120 425 383 449 405 402 519 497 504 477 485 449
150 488 437 516 462 463 600 575 566 539 549 510
185 557 496 587 524 529 688 660 643 614 618 574
240 656 579 689 612 625 815 782 749 714 715 666
300 755 662 792 700 720 943 906 842 805 810 755
400 853 717 899 767 815 1137 1094 929 889 848 797
500 962 791 1016 851 918 1314 1266 1032 989 923 871
630 1082 861 1146 935 1027 1528 1474 1139 1092 992 940





Voltage Drop
CONDUCTOR CROSS – SECTIONAL AREA
MM2
2 CABLES DC REFERENCE METHODS C AND F (CLIPPED DIRECT, ON TRAY OR IN FREE AIR)
2 CABLES SINGLE PASS AC 3 OR 4 CABLES THREE PHASE AC
TOUCHING SPACED TREFOIL / TOUCHING FLAT / TOUCHING FLAT / SPACED
    R X Z R X Z R X Z R X Z R X Z
50 0.980 0.990 0. 210 1.000 0.980 0.290 1.000 0.86 0.180 0. 870 0.840 0.250 0.880 0.840 0.330 0.90
70 0.670 0.680 0.200 0.710 0.690 0.290 0.750 0.59 0.170 0.620 0.600 0.250 0.650 0.620 0.320 0.70
95 0.490 0. 510 0.195 0.550 0.530 0.280 0.600 0.44 0.170 0. 470 0.460 0.240 0. 52 0.490 0. 310 0.58
120 0.390 0. 410 0.190 0.450 0.430 0.270 0. 51 0.35 0.165 0.390 0.380 0.240 0.440 0. 410 0.300 0. 51
150 0. 310 0.330 0.185 0.380 0.360 0.270 0.450 0.29 0.160 0.330 0. 310 0.230 0.390 0.340 0.290 0.45
185 0.250 0. 270 0.185 0.330 0.300 0.260 0.400 0.23 0.160 0.280 0.260 0.230 0.340 0.290 0.290 0. 41
240 0.195 0. 210 0.180 0.280 0.240 0.260 0.350 0.18 0.155 0.240 0. 210 0.220 0.300 0.240 0.280 0.37
300 0.155 0.170 0.175 0.250 0.195 0.250 0.320 0.145 0.150 0. 210 0.170 0.220 0.280 0.200 0. 270 0.34
400 0. 115 0.145 0.170 0.220 0.180 0. 24 0.300 0.125 0.150 0.195 0.160 0. 210 0.270 0.200 0. 270 0.33
500 0.093 0.125 0.170 0.210 0.165 0. 24 0.290 0.105 0.145 0.180 0.145 0.200 0.250 0.190 0.240 0. 31
630 0.073 0.105 0.165 0.195 0.150 0.230 0.270 0.092 0.145 0.170 0.135 0.195 0. 24 0.175 0.230 0.29

The Above Is In Accordance With 18th Edition Of Iet Wiring Regulations
Conductor Operating Temperature: 90°c
R = Resistive Component
X = Reactive Component Z = Impedance Value
Spacing’s Larger Than Those Specified Will Result In Larger Volt Drop.
The Above Is In Accordance With 17th Edition Of Iee Wiring Regulations.
