| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, RoHS, VDE, UL, CUL, LPCB |
| Model Number: | Electrical lnstallation Cable(RVV) |
| Minimum Order Quantity: | 20 KM |
| Packaging Details: | 100M, 200M, Roll, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Conductor: | Flexible Ultra-fine Stranded Copper Wire | Insulation: | Flexible Heat Resistant PVC |
|---|---|---|---|
| Color: | Two Core:black,white | Filler: | Cotton Or Pp Filler |
| Jacket: | Flexble Heat Reslatant PVC Mlxture | Produet Reference Standard: | GB/T5023; JB8734 |
| Electrical lnstallation Cable(RVV) | ||||||||
| ▉ Application | ||||||||
| This cable is used as control and connec↑ing cables for electrical equipment.It apply to machine tool and complete sets of equipment for fixed installation. | ||||||||
| ▉ Cable Construction | ||||||||
| Conductors: flexible ultra-fine stranded copper wire | ||||||||
| Insulation:flexible heat resistant PVC | ||||||||
| Insulation Color: | Two core:black,white | |||||||
| Three core:blue,brown,yellow/green | ||||||||
| Four:black,blue,brown,yellow/green | ||||||||
| Five core and above:black insulated wire print white font | ||||||||
| Filler:cotton or pp filler | ||||||||
| Jacket:flexble heat reslatant PVC mlxture | ||||||||
| Produet reference standard:GB/T5023; JB8734 | ||||||||
| Note:Cable having more than 3 core contain yellow/green wire | ||||||||
| ▉ Product Feature | ||||||||
| Good mechanical properties | ||||||||
| Good capabillity of electric insulation and resistant to chemicals | ||||||||
| Fire resistance meets IEC60332-1 | ||||||||

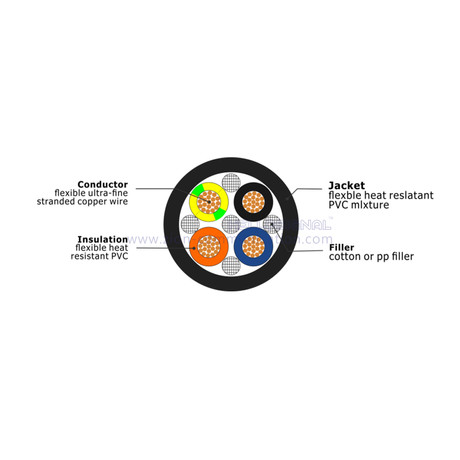

| ▉ Cross Section | ||||||||
|
||||||||
| ▉ Technical data | ||||||||
| Temperature Range | Bend: : -5℃~＋70℃ |
|||||||
| Static : -15℃~＋70℃ | ||||||||
| Rated Voltage | CCC : 300/300V 300/500V | |||||||
| IEC/VDE ＜ 1.5mm² ;300/300V | ||||||||
| IEC/VDE ≥ 1.5mm² ;300/500V | ||||||||
| Test Voltage | ≥0.5mm² 2500V/5min; | |||||||
| Insulation resistance | 20℃ ≥ 10MΩ/km | |||||||
| Min bending radius | ||||||||
| Fixed | 6D(D=cable diameter) | |||||||
| Moving | 15D(D=cable diameter) | |||||||
| Torsion angle | ±90°/m | |||||||
| Moving: | ±90°/m | |||||||
| ▉ Product List | ||||||||
| Item No. | Spec. | Nominal OD(mm) | Copper.weight approx (kg/km) | Wight approx(kg/km) | ||||
| 7144100 | RVV 2×0.5mm² | 5.3 | 9 | 35 | ||||
| 7144101 | RVV 3×0.5mm² | 5.6 | 14 | 45 | ||||
| 7144102 | RVV 4×0.5mm² | 6.4 | 19 | 58 | ||||
| 7144103 | RVV 5×0.5mm² | 6.9 | 23 | 68 | ||||
| 7144104 | RVV 10×0.5mm² | 9.4 | 47 | 119 | ||||
| 7144105 | RVV 15×0.5mm² | 11.4 | 70 | 188 | ||||
| 7144106 | RVV 20×0.5mm² | 12.6 | 93 | 237 | ||||
| 7144107 | RVV 30×0.5mm² | 14.7 | 140 | 331 | ||||
| 7144108 | RVV 2×0.75mm² | 6.1 | 14 | 46 | ||||
| 7144109 | RVV 3×0.75mm² | 6.5 | 21 | 61 | ||||
| 7144110 | RVV 4×0.75mm² | 7.4 | 28 | 79 | ||||
| 7144111 | RVV 5×0.75mm² | 8.0 | 35 | 93 | ||||
| 7144112 | RVV 10×0.75mm² | 11.7 | 70 | 189 | ||||
| 7144113 | RVV 15×0.75mm² | 13.3 | 105 | 260 | ||||
| 7144114 | RVV 20×0.75mm² | 14.7 | 140 | 331 | ||||
| 7144115 | RVV 30×0.75mm² | 17.2 | 209 | 467 | ||||
| 7144116 | RVV 2×1.0mm² | 6.8 | 19 | 59 | ||||
| 7144117 | RVV 3×1.0mm² | 7.2 | 28 | 78 | ||||
| 7144118 | RVV 4×1.0mm² | 7.9 | 37 | 93 | ||||
| 7144119 | RVV 5×1.0mm² | 8.6 | 47 | 111 | ||||
| 7144120 | RVV 10×1.0mm² | 12.5 | 93 | 225 | ||||
| 7144121 | RVV 15×1.0mm² | 14.3 | 140 | 311 | ||||
| 7144122 | RVV 20×1.0mm² | 15.8 | 186 | 398 | ||||
| 7144123 | RVV 30×1.0mm² | 20.7 | 279 | 664 | ||||
| ▉ Product List | ||||||||
| Item No. | Spec. | Nominal OD(mm) | Copper.weight approx (kg/km) | Wight approx(kg/km) | ||||
| 7144124 | RVV 2×1.5mm² | 7.8 | 27 | 77 | ||||
| 7144125 | RVV 3×1.5mm² | 8.3 | 41 | 103 | ||||
| 7144126 | RVV 4×1.5mm² | 9.1 | 55 | 126 | ||||
| 7144127 | RVV 5×1.5mm² | 10.6 | 68 | 171 | ||||
| 7144128 | RVV 10×1.5mm² | 14.5 | 136 | 306 | ||||
| 7144129 | RVV 15×1.5mm² | 16.6 | 205 | 428 | ||||
| 7144130 | RVV 20×1.5mm² | 20.6 | 273 | 649 | ||||
| 7144131 | RVV 30×1.5mm² | 23.9 | 409 | 903 | ||||
| 7144132 | RVV 2×2.5mm² | 9.0 | 45 | 107 | ||||
| 7144133 | RVV 3×2.5mm² | 9.6 | 67 | 146 | ||||
| 7144134 | RVV 4×2.5mm² | 11.2 | 89 | 202 | ||||
| 7144135 | RVV 5×2.5mm² | 12.2 | 111 | 242 | ||||
| 7144136 | RVV 10×2.5mm² | 16.9 | 223 | 442 | ||||
| 7144137 | RVV 15×2.5mm² | 21.6 | 334 | 729 | ||||
| 7144138 | RVV 20×2.5mm² | 23.8 | 445 | 926 | ||||
| 7144139 | RVV 30×2.5mm² | 27.8 | 668 | 1306 | ||||
| ▉ Order Informations | ||||||||
| Marking | HELLOSIGNAL Electrical lnstallation Cable(RVV) XXXFT/M | |||||||
| Package | 100M/Reel, 300M/Wooden Spool | |||||||
| Delivery time | Normally 25 days after received the deposit. | |||||||
| Brand | HELLOSIGNAL® OR OEM | |||||||
