| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, RoHS, VDE, UL, CUL, LPCB |
| Model Number: | CYKYlo |
| Minimum Order Quantity: | 20 KM |
| Packaging Details: | 100M, 200M, Roll, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Conductor: | Solid Plain Copper | Insulation: | PVC |
|---|---|---|---|
| Sheath: | PVC |

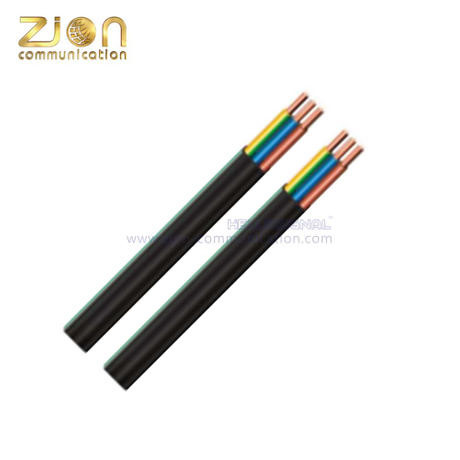

| Installation multi-core cables | ||||||||
| Product Description: | ||||||||
| Conductor | Solid plain copper | |||||||
| Insulation | PVC | |||||||
| sheath | PVC | |||||||
| Application: | ||||||||
| The cable is designed for installation under plaster, in flat, concealed installation and for installation in conduits and cable ducts. The cable is resistant to flame propagation according to the requirements of fire technical characteristics given acc. to Decree No.246/2001 Col. At these cables you can easily recognize 2 main types: 3 × 1,5 mm2 always with blue stripe and 3 × 2,5 mm2 always with green stripe. Installation of the product should only be carried out by personnel trained and qualified for electrical works. The product is designed according to recognized standards. Applicable rules of installation must be applied at all times. |
||||||||
|
|
||||||||
| Zion's Hot Types | ||||||||
| Properties: | ||||||||
| Rated voltage | 450/750 V | Colour of sheath | Black with blue or green stripe | |||||
| Test voltage | 2,5 kV | Flame spread resistance | IEC 60332-1; VDE 0482 T332-1-2 | |||||
| Maximal short-circuit temperature | +160 °C | CPR class | ECa | |||||
| Maximal conductor operating temperature | +70 °C | UV stability | Yes | |||||
| Temperature range for handling | From −30 up to +70 °C | Packaging | Coils and drums | |||||
| Minimal temperature for laying and manipulation | +5 °C | Certificate | ||||||
| Minimal storage temperature | −30 °C | RoHS | Yes | |||||
| Colour of insulation | HD 308 S2 | REACH | Yes | |||||
| Mechanical properties: | ||||||||
| No. of cores and cross-section |
Shape of conductor | Nominal insulation thickness |
Nominal sheath thickness |
Diameter approx. | Cable mass approx. | Bending radius | ||
| mm2 | mm | mm | mm | Kg/km | mm | |||
| 3x1,5 | RE | 0,7 | 0,4 | 4,1x10,5 | 68.00 | 25.0 | ||
| 3x2,5 | RE | 0,8 | 0,4 | 4,8x12,6 | 104.00 | 29.0 | ||
| Electrical properties: | ||||||||
| No. of cores and cross-section | Shape of conductor | DC resistance at 20 °C (min.) | Current carrying cap. in air *) | Current carrying cap. in ground | ||||
| mm2 | Ω/km | A | A | |||||
| 3x1,5 | RE | 12,531 | 18,5 | 28.00 | ||||
| 3x2,5 | RE | 7,519 | 25.00 | 36.00 | ||||
| Note: *) Values of current carrying capacity in air at +30 °C. | ||||||||
