| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, RoHS, VDE, UL, CUL, LPCB |
| Model Number: | CYKY-J, CYKY-O |
| Minimum Order Quantity: | 20 KM |
| Packaging Details: | 100M, 200M, Roll, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Conductor: | Annealed Copper Solid Class 1(RE) Acc. To EN 60228 | Insulation: | Special PVC Compound Type TI1 Acc To EN 50363-3 |
|---|---|---|---|
| Sheath: | Special PVC Compound Type TM1 Acc To EN 50363-4-1 |

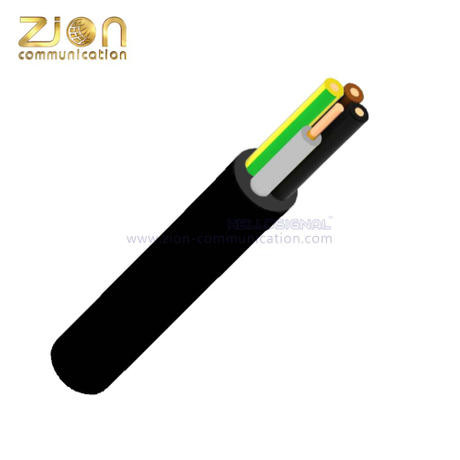

| PVC insulated and PVC sheathed power and control cable |
|||||||||||
|
Construction:
|
|||||||||||
| Conductors | Annealed copper solid class 1(RE) acc. to EN 60228 | ||||||||||
| Insulation | Special PVC compound type TI1 acc to EN 50363-3 | ||||||||||
| Sheath | Special PVC compound type TM1 acc to EN 50363-4-1 | ||||||||||
| Characteristic: | |||||||||||
| Colour of sheath | Black, UV resistant | ||||||||||
| Core identification | |||||||||||
| CYKY-J | CYKY-O | ||||||||||
| 2-core: | blue, brown | ||||||||||
| 3-core: | green-yellow, blue, brown | brown, black, grey | |||||||||
| 4-core: | green-yellow, brown, black, grey | blue, brown, black, grey | |||||||||
| 5-core: | green-yellow, blue, brown, black, grey | blue, brown, black, grey, black | |||||||||
| 7 and more: | green-yellow, other cores black with white numbering |
black with white numbering | |||||||||
| Maximum conductor operating temperature | +70°C | ||||||||||
| Lowest ambient temperature for fixed installation | -40°C | ||||||||||
| Lowest installation temperature | -5°C | ||||||||||
| Maximum short-circuit conductor temperature | +160°C | ||||||||||
| Minimum bending radius | 6d for cables with diameter ≤20d, 12d for cables with diameter >20mm, d – overall diameter |
||||||||||
| Dielectric test voltage 50Hz | 2,5kV | ||||||||||
| Fire Performance: | |||||||||||
| Flame retardant | EN 60332-1-2 | ||||||||||
| Fire classification products and building elements related with Construction Products Regulation CPR) |
Eca acc. to EN 13501-6 | ||||||||||
| Applications: | |||||||||||
| For fixed installation in interior premises, cable ducts, in the open air, in water – as permitted by the local building regulations – if no risk of any mechanical damage is to be expected |
|||||||||||
| Standard length cable packing | 500 or 1000m on drums. Other forms of packing and delivery are available on request |
||||||||||
| Zion's Hot Types | |||||||||||
| Number and cross-sectional area of conductor |
Approximate overall diameter |
Approximate net weight of cables |
Maximum conductor resistance at temperature 20°C |
||||||||
| N x mm2 | mm | Kg/km | Ω/km | ||||||||
| 2x1,5 | 7,0 | 85 | 12,1 | ||||||||
| 2x2,5 | 8,2 | 122 | 7,41 | ||||||||
| 2x4 | 9,1 | 164 | 4,61 | ||||||||
| 2x6 | 10,4 | 225 | 3,08 | ||||||||
| 2x10 | 12,8 | 356 | 1,83 | ||||||||
| 2x16 | 14,6 | 504 | 1,15 | ||||||||
| 3x1,5 | 7,4 | 101 | 12,1 | ||||||||
| 3x2,5 | 8,7 | 148 | 7,41 | ||||||||
| 3x4 | 9,6 | 202 | 4,61 | ||||||||
| 3x6 | 11,0 | 281 | 3,08 | ||||||||
| 3x10 | 13,6 | 447 | 1,83 | ||||||||
| 3x16 | 15,5 | 644 | 1,15 | ||||||||
| 4x1,5 | 8,0 | 124 | 12,1 | ||||||||
| 4x2,5 | 9,4 | 180 | 7,41 | ||||||||
| 4x4 | 10,6 | 249 | 4,61 | ||||||||
| 4x6 | 12,0 | 347 | 3,08 | ||||||||
| 4x10 | 14,9 | 557 | 1,83 | ||||||||
| 4x16 | 17,5 | 824 | 1,15 | ||||||||
| 5x1,5 | 8,7 | 150 | 12,1 | ||||||||
| 5x2,5 | 10,3 | 221 | 7,41 | ||||||||
| 5x4 | 11,6 | 308 | 4,61 | ||||||||
| 5x6 | 13,2 | 429 | 3,08 | ||||||||
| 5x10 | 16,8 | 707 | 1,83 | ||||||||
| 5x16 | 19,2 | 1023 | 1,15 | ||||||||
| 7x1,5 | 9,8 | 194 | 12,1 | ||||||||
| 7x2,5 | 11,5 | 288 | 7,41 | ||||||||
| 7x4 | 12,9 | 239 | 4,61 | ||||||||
| 12x1,5 | 12,6 | 310 | 12,1 | ||||||||
| 12x2,5 | 15,0 | 466 | 7,41 | ||||||||
| 12x4 | 17,3 | 676 | 4,61 | ||||||||
| 19x1,5 | 14,7 | 452 | 12,1 | ||||||||
| 19x2,5 | 18,0 | 703 | 7,41 | ||||||||
| 24x1,5 | 17,6 | 584 | 12,1 | ||||||||
| 24x2,5 | 21,0 | 885 | 7,41 | ||||||||
| 37x1,5 | 20,0 | 837 | 12,1 | ||||||||
| 1 x 0.38 | 5.4 | 18 | 0.4 | ||||||||
| 1 x 0.39 | 6.4 | 19 | 0.4 | ||||||||
| 1 x 0.40 | 7.4 | 20 | 0.4 | ||||||||
| 1 x 0.41 | 8.4 | 21 | 0.46 | ||||||||
| 1 x 0.42 | 9.4 | 22 | 0.5 | ||||||||
| 1 x 0.43 | 10.4 | 23 | 0.55 | ||||||||
| 1 x 0.36 | 3.4 | 16 | 0.4 | ||||||||
| 1 x 0.37 | 4.4 | 17 | 0.4 | ||||||||
| 1 x 0.38 | 5.4 | 18 | 0.4 | ||||||||
| 1 x 0.39 | 6.4 | 19 | 0.4 | ||||||||
| 1 x 0.40 | 7.4 | 20 | 0.4 | ||||||||
| 1 x 0.41 | 8.4 | 21 | 0.46 | ||||||||
| 1 x 0.42 | 9.4 | 22 | 0.5 | ||||||||
| 1 x 0.43 | 10.4 | 23 | 0.55 | ||||||||
| Current ratings Operating temperature at conductor 70oC; ambient air temperature 30oC, ground temperature 20oC depth 0,7m soil-thermal resistivity of dry area 2,5 k × m/W |
|||||||||||
| Number of loaded cores |
2 | 3, 4, 5 | 2 | 3, 4, 5 | |||||||
| laying in ground | laying in air | ||||||||||
| Cross-section, mm2 |
Current ratings in Ampere (A) | ||||||||||
| 1,5 | 34 | 28 | 22 | 18,5 | |||||||
| 2,5 | 45 | 36 | 30 | 25 | |||||||
| 4 | 59 | 48 | 40 | 34 | |||||||
| 6 | 73 | 61 | 51 | 43 | |||||||
| 10 | 98 | 81 | 70 | 60 | |||||||
| 16 | 127 | 105 | 88 | 80 | |||||||
| All the information contained in this document - including tables and diagrams - is given in good faith and believed to be correct at the time of publication. The information does not constitute a warranty nor representation for which TELE-FONIKA Kable assumes legal responsibility. TELE-FONIKA Kable reserves rights to introduce changes to the document at any time. | |||||||||||
