H05VV-F Flexible Cable

Basic Information
Place of Origin: China
Brand Name: Zion communication OR OEM
Certification: CE, RoHS, VDE, UL, CUL, LPCB
Model Number: H05VV-F Flexible Cable
Minimum Order Quantity: 20 KM
Packaging Details: 100M, 200M, Roll, Carton
Delivery Time: 25 working days
Payment Terms: T/T, L/C
Supply Ability: 1000KM / Month
Detail Information
Conductor: Class 5 Flexible Copper Insulation: Polyvinyl Chloride (PVC)
Sheath: Polyvinyl Chloride (PVC)

Product Description

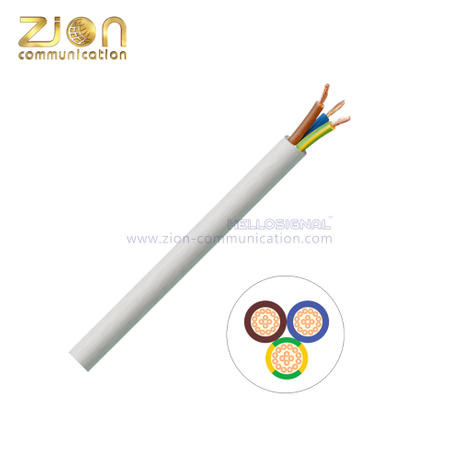

H05VV-F Flexible Cable

H05VV-F Flexible Cable 0

H05VV-F Flexible Cable 1



Application:     Cable Standards:
Ordinary duty PVC cable for use in
domestic appliances,kitchens and offices.
For use with light portable appliances
such as table lamps and office equipment.
Generally unsuitablefor outdoor use or
industrial applications.
    EN 50525-2-11, EN 60228
    Flame Retardant according to IEC/EN 60332-1-2



Product Description:
Conductor Class 5 flexible copper
Insulation Polyvinyl Chloride (PVC)
Sheath Polyvinyl Chloride (PVC)

Characteristics:
Voltage Rating Uo/U H05V-K: 300/500V
Temperature Rating +5°C to +70°C
Minimum Bending Radius Fixed: 8 x overall diameter

Core Identification:
2 Core:   Blue     Brown

3 Core:   Blue     Brown       Green/Yellow

4 Core:   Brown     Black     Grey       Green/Yellow

5 Core:   Brown     Black     Grey     Blue       Green/Yellow

*E3184Y Core Identification:

4 Core:   Brown     Black     Grey       Green/Yellow

* Should not be installed at temperatures below 0°C








Dimensions:
  Zion Code No. Of
Cores
Nominal Cross Sectional Area(mm²) Nominal Thickness Of Insulation
(mm)
Nominal Overall
Diameter
(mm)
Nominal Weight
(mm)

  H05VV-F2x0.75 2 0.75 0.6 6.3 57
  H05VV-F2x1 2 1.00 0.6 6.6 65
  H05VV-F2x1.5 2 1.50 0.7 7.4 84
  H05VV-F2x2.5 2 2.50 0.8 9.1 130
  H05VV-F3x0.75 3 0.75 0.6 6.7 68
  H05VV-F3x1 3 1.00 0.6 7.0 78
  H05VV-F3x1.5 3 1.50 0.7 8.1 108
  H05VV-F3x2.5 3 2.50 0.8 9.9 163
  H05VV-F3x4 3 4.00 0.8 11.3 227
  H05VV-F4x0.75 4 0.75 0.6 7.3 82
  H05VV-F4x1 4 1.00 0.6 7.9 100
  H05VV-F4x1.5 4 1.50 0.7 9.0 134
  H05VV-F4x2.5 4 2.50 0.8 10.8 201
  H05VV-F5x0.75 5 0.75 0.6 8.1 102
  H05VV-F5x1 5 1.00 0.6 8.6 120
  H05VV-F5x1.5 5 1.50 0.7 10.0 166

Conductors:
  Nominal Cross Sectional Area(mm²) Maximum Diameter
Of Wires In Conductor
MAXIMUM RESISTANCE OF CONDUCTOR AT 60ºC
ohms/km

  Plain Wires
  0.75 0.21 26.00
  1 0.21 19.50
  1.5 0.26 13.30
  2.5 0.26 7.98
  4 0.31 4.95
The above table is in accordance with EN 60228
Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables

Current Carrying Capacity
  Nominal Cross Sectional Area (mm²) Current Carrying Capacity Amps Maximum Mass Supportable
By Twin Flexible Cord
Kg

  Single-Phase AC Three-Phase AC
  0.75 6.0 6.0 3
  1 10.0 10.0 5
  1.5 16.0 16.0 5
  2.5 25.0 25.0 5
  4 32.0 32.0 5
The above table is in accordance with Table 4F3A of the 17th Edition of IEE Wiring Regulations.






Voltage Drop:
  Nominal Cross Sectional Area (mm²) DC Or Single-phase AC
(mV/A/m)
Three-phase AC
(mV/A/m)

  0.75 62.0 54.0
  1 46.0 40.0
  1.5 32.0 27.0
  2.5 19.0 16.0
  4 12.0 10.0
Conductor operating temperature: 60ºC
The above table is in accordance with Table 4F3B of the 18th Edition of IEE Wiring Regulations BS7671 and IEC 60364-5-52.
