| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | ISO, UL, CE, RoHS |
| Model Number: | MENA CCTV Coaxial Cable |
| Minimum Order Quantity: | 30 KM |
| Packaging Details: | 500FT, 1000FT, Plastic / Wooden Spool, Carton |
| Delivery Time: | Normally 15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50*20’GP / Month |
| Inner Conductor: | 7x0,20mm Ø Stranded Copper | Dielectric: | 2,50mm Ø Solid PE |
|---|---|---|---|
| Shield 1: | Al-Pes Tape /CU-Pes Tape | Shield 2: | Aluminium Braid 70% |
| Power Cores Conductor: | 2x0,22mm2 (7×0.18mm CU ) Stranded Copper | Power Cores Insulation: | 1.0mm PVC |
| Highlight: | Aluminium Braid 70% CCTV Coaxial Cable,Copper CCTV Coaxial Cable,2.50mm PE CCTV Coaxial Cable |
||

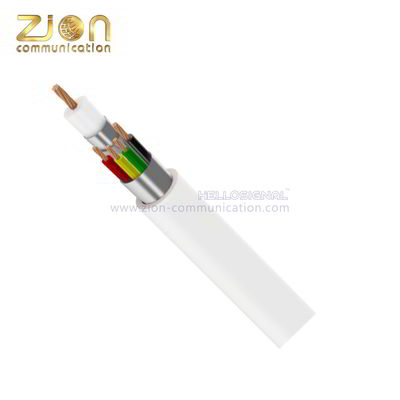

Mini Coax +(2×0.5+2×0.22) Stranded Copper PVC MENA CCTV Coaxial Cable
| Mini Coax +(2×0.5+2×0.22)(NO.7102162) | |
| Construction Parameters: | |
| Coaxial Cable | |
| Inner Conductor | 7x0,20mm Ø Stranded Copper |
| Dielectric | 2,50mm Ø Solid PE |
| Shield 1 | Al-Pes Tape /CU-Pes Tape |
| Shield 2 | Aluminium Braid 70% |
| Power Cores | |
| Inner Conductor | 2x0,22mm2 (7×0.18mm CU ) Stranded Copper |
| Insulation | 1.0mm PVC |
| Low Capaciltance Computer Cable | |
| Inner Conductor | 2x0,50mm2 (16×0.18mm CU ) Stranded Copper |
| Insulation | 1.50mm PVC |
| Overall Outer Sheath | Al-Pes Tape (100% Coverage) |
| 6.5±0.2mm PVC Common RAL 7032 Grey | |
| Electrical Characteristics: | |
| Inner Conductor Resistance | The Max. at 20℃ shall be < 64.9 Ω/km |
| Capacitance | 52 ±3 pF/m |
| Impedance | 75 ± 3 Ω |
| Velocity of Propagation | 0.82 |
| Sparker Test (VAC) | 3 |
| Mechanical and Envrionmental Properties | |
| Cable bend radius | 10 times the cable diameter |
| Operating Temp Range | -20 ℃ to 60℃ |
| Attenuation(20℃): | |
| Frequency (MHZ) | Max Attenuation (dB/100m) |
| 1 | 1.8 |
| 5 | 3.9 |
| 10 | 4.8 |
| 50 | 11 |
| 100 | 15.2 |
| 200 | 21.8 |
| 400 | 29.8 |
| 700 | 34.4 |
| 900 | 36 |
| ※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested. | |
| Order Informations | |
| Marking | HELLOSIGNAL CCTV 4+1,MINI COAX + (2 x 0,50 + 2x 0,22)mm² CCTV COAXIAL CABLE 7102162×××M |
| Package | 100M,200M Roll, Spool |
| Delivery time | Normally 25 days after received the deposit. |
| Brand | HELLOSIGNAL® OR OEM |
