Cooling for Network Cabinet | Server Rack | Data Center Accessories | Zion Communiation China Supplier

Basic Information
Place of Origin: CHINA
Brand Name: Zion communication OR OEM
Certification: ISO, CE, RoHS, UL
Model Number: Data Center Equipment
Minimum Order Quantity: 1,000 PCS
Packaging Details: 1 PC/Plastic Bag, PCS/Carton
Delivery Time: Normally 10 workingdays
Payment Terms: T/T, L/C
Supply Ability: 30,000 PCS / Month
Detail Information
Model: Cabinet Fitting Bnad: HELLOSIGNAL
Cord: Cooling

Product Description

More detail please visit:

https://www.zion-communication.com/Copper-System-Equipment.html

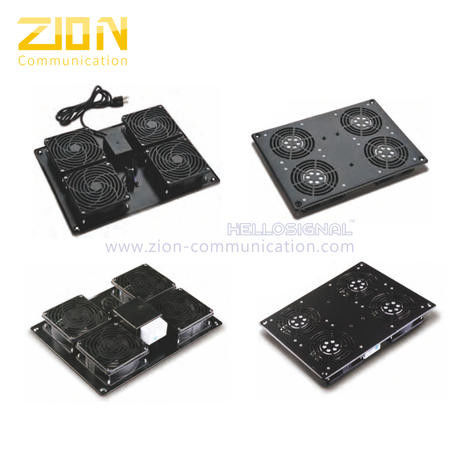

COOLING

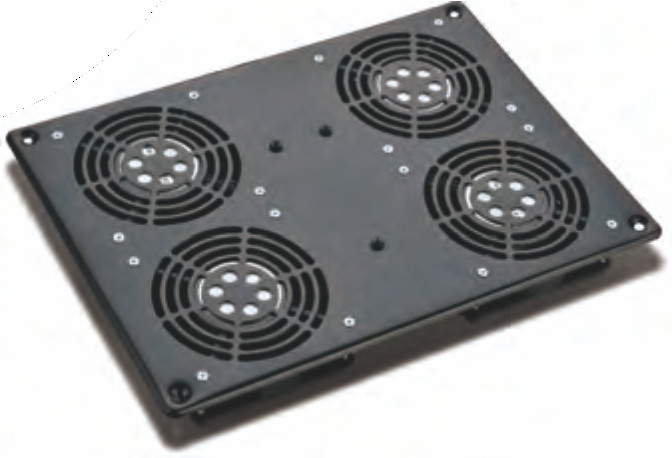

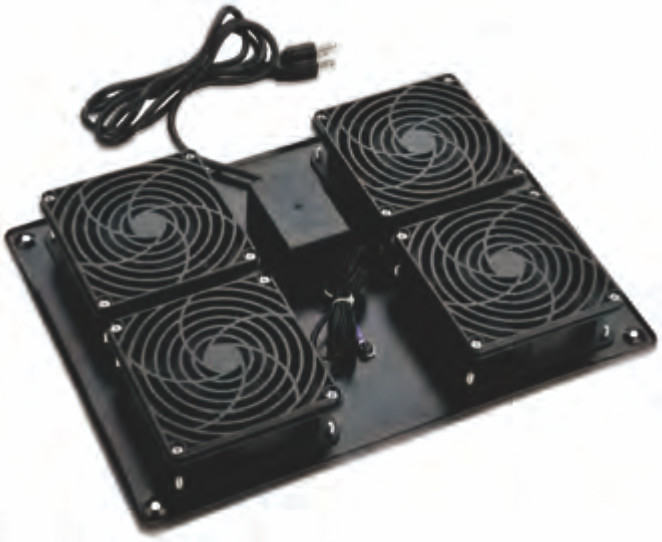

2/4 Fan Units
· Only for cabinet, enable ventilation and reliable operation.
Easy-to-disassemble enable convenient operation.
· Full series of optional switch, can control fans singly.
Parameter

1













2

Fan size: Cable length:
120 × 120 × 38 1.9M
Input frequency: Period:
100~231V/50Hz -10°C~+50°C
Material: Cable length:
SPCC cold rolled steel 70 ■■■■0■■ : RAL7035
70 ■■■■1■■ : RAL9004

Main Part
Model No. Description Input connector type
ZC70040211 2 fans UK type(BS1363)
ZC70040212 2 fans German type(DIN49441)
ZC70040213 2 fans US type(NEMA 5-15P)
ZC70040411 4 fans UK type(BS1363)
ZC70040412 4 fans German type(DIN49441)
ZC70040413 4 fans US type(NEMA 5-15P)

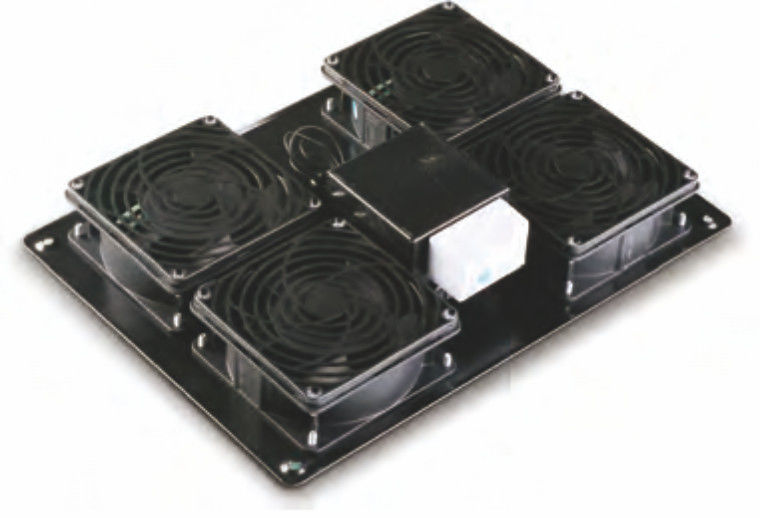

2/4 Fan Units With Thermostat
· Only for cabinet, enable ventilation and reliable operation.
· Easy-to-disassemble enable convenient operation.
· Small size
· High switching performance
Parameter

4











3

Fan size: Cable length:
120 × 120 × 38 1.9M
Input frequency: Large setting range:
100~231V/50Hz 0°C~+60°C
Material: Cable length:
SPCC cold rolled steel 70 ■■■■0■■ : RAL7035
70 ■■■■1■■ : RAL9004

Main Part
Model No. Description Input connector type
ZC70040211T 2 fans UK type(BS1363)
ZC70040212T 2 fans German type(DIN49441)
ZC70040213T 2 fans US type(NEMA 5-15P)
ZC70040411T 4 fans UK type(BS1363)
ZC70040412T 4 fans German type(DIN49441)
ZC70040413T 4 fans US type(NEMA 5-15P)

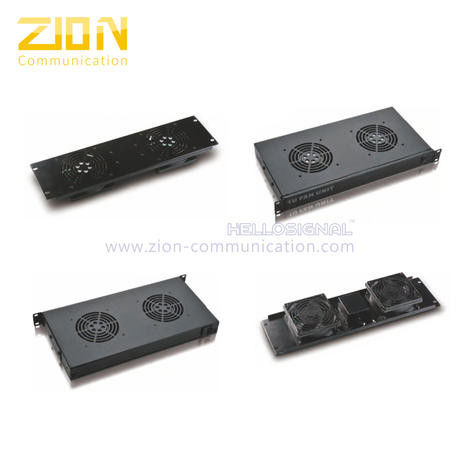

1U Fan Units
· 19”standard installation, 1U Switch control fans work.
Parameter

5























9 CABINETS FITTING

Fan size: Cable length:
120 × 120 × 38 1.9M
Input frequency: Large setting range:
100~231V/50Hz -10°C~+50°C
Material: Cable length:
SPCC cold rolled steel 70 ■■■■0■■ : RAL7035
70 ■■■■1■■ : RAL9004


Main Part
Model No. Description Input connector type
ZC70040221 2 fans UK type(BS1363)
ZC70040222 2 fans German type(DIN49441)
ZC70040223 2 fans US type(NEMA 5-15P)
ZC70040321 3 fans UK type(BS1363)
ZC70040322 3 fans German type(DIN49441)
ZC70040323 3 fans US type(NEMA 5-15P)
ZC70040421 4 fans UK type(BS1363)
ZC70040422 4 fans German type(DIN49441)
ZC70040423 4 fans US type(NEMA 5-15P)

3U Fan Units
· 19”standard installation, 3U
Parameter



78













Fan size: Cable length:
120 × 120 × 38 1.9M
Input frequency: Large setting range:
100~231V/50Hz -10°C~+50°C
Material: Cable length:
SPCC cold rolled steel 70 ■■■■0■■ : RAL7035
70 ■■■■1■■ : RAL9004
Main Part
Model No. Description Input connector type
ZC70040231 2 fans UK type(BS1363)
ZC70040232 2 fans German type(DIN49441)
ZC70040233 2 fans US type(NEMA 5-15P)
ZC70040331 3 fans UK type(BS1363)
ZC70040332 3 fans German type(DIN49441)
ZC70040333 3 fans US type(NEMA 5-15P)
