Place of Origin: | China |
---|---|
Brand Name: | Zion communication OR OEM |
Certification: | ISO, CE, RoHS, UL |
Model Number: | Fire Alarm Cable 14AWG FPL |
Minimum Order Quantity: | 20 KM |
Packaging Details: | 500FT, 1000FT, Wooden Reel, Carton |
Delivery Time: | 25 working days |
Payment Terms: | T/T, L/C |
Supply Ability: | 1000KM / Month |
Conductor: | Solid Bare Copper | Insulation: | PVC Non Plenum |
---|---|---|---|
Shield: | Aluminum / Mylar | Jacket: | PVC Non Plenum |
Color: | Red | Package: | 500FT, 1000FT, Wooden Reel, Carton |
Highlight: | fire resistant cables,fire proof cable |

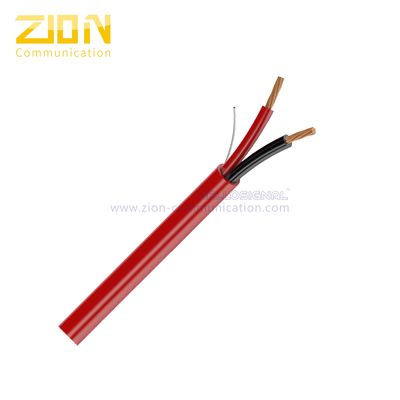

14AWG Unshielded Fire Alarm Cable Solid Copper Conductor with Non Plenum PVC
Quick Details
Description
KT1419 Fire Alarm Cables 14 AWG FPL-CL2 PVC Insulation Non-Plenum PVC Jakcet | |||||||
Application | |||||||
Indoor for: | |||||||
Audio Circuits | |||||||
Control Circuits | |||||||
Initiating Circuits | |||||||
Notification Circuits | |||||||
Properties | |||||||
Temperature Rating: '-20 to 75℃ | |||||||
Operating Voltage: 300 Volts max. | |||||||
Flame Rating: UL 1685 Vertical Tray | |||||||
Insulation & Jacket: PVC | |||||||
Unshielded types | |||||||
Conductors | NOM.THICKNESS(MM) | Nominal0.D. | Capacitance | Impedance | DC Resistance | ||
Number | Solid | Insulation | Jacket | Inch | pf/ft | Ohms | Ohms/M' |
2 | 14 AWG | 0.010" | 0.016" | 0.200" | 22 | 70 | 2.6 |
4 | 14 AWG | 0.010" | 0.016" | 0.214" | 22 | 70 | 2.6 |
Shielded types | |||||||
Conductors | NOM.THICKNESS(MM) | Nominal0.D. | Capacitance | Impedance | DC Resistance | ||
Number | Solid | Insulation | Jacket | Inch | pf/ft | Ohms | Ohms/M' |
2 | 14 AWG | 0.010" | 0.016" | 0.210" | 52 | 29 | 2.54 |
4 | 14 AWG | 0.010" | 0.016" | 0.220" | 52 | 29 | 2.54 |
Drain Wire | 18 AWG Solid Tinned-Copper | ||||||
Shield | 0.001" thick Aluminum/Mylar | ||||||
Color | |||||||
Number | Description | ||||||
2 | Blk,Red | ||||||
4 | Blk,Red,Ylw,Grn | ||||||
Order Informations: | |||||||
Zion communication KT1419 ×C14 E×××××××(UL) FPL OR CL2 SUN RES(ROHS) ××××FT |
|||||||
Packing | 500FT, 1000FT, Wooden Reel, Carton, Pallet |
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions manual at each work station
E: 5S system implemented
F: Machine maintenance procedure
G: Quality Control and Final Inspection
The QC staff will check the material, process product
and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies
needed to support the future growth and success for customers and Zion communication.
3, We know customers have urgent needs.
We are skilled at effective communication to interact with customers.
In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
