Place of Origin: | China |
---|---|
Brand Name: | Zion communication OR OEM |
Certification: | CE, RoHS, VDE, UL, CUL, LPCB |
Model Number: | Audio Speaker Cable 14 AWG 4 Cores |
Minimum Order Quantity: | 20 KM |
Packaging Details: | 152M, 305M, Pull Box, Pallet |
Delivery Time: | 25 working days |
Payment Terms: | T/T, L/C |
Supply Ability: | 1000KM / Month |
Conductor: | Stranded Bare Copper | Insulation: | CMR Rated PVC |
---|---|---|---|
Rip-cord: | Yes | Jacket: | CMR Rated PVC |
Color: | Yellow, White, Gray, Purple | Package: | 152M, 305M, Pull Box, Pallet |
High Light: | stereo speaker cables,outdoor speaker cable,CMR Rated Audio Speaker Cable |

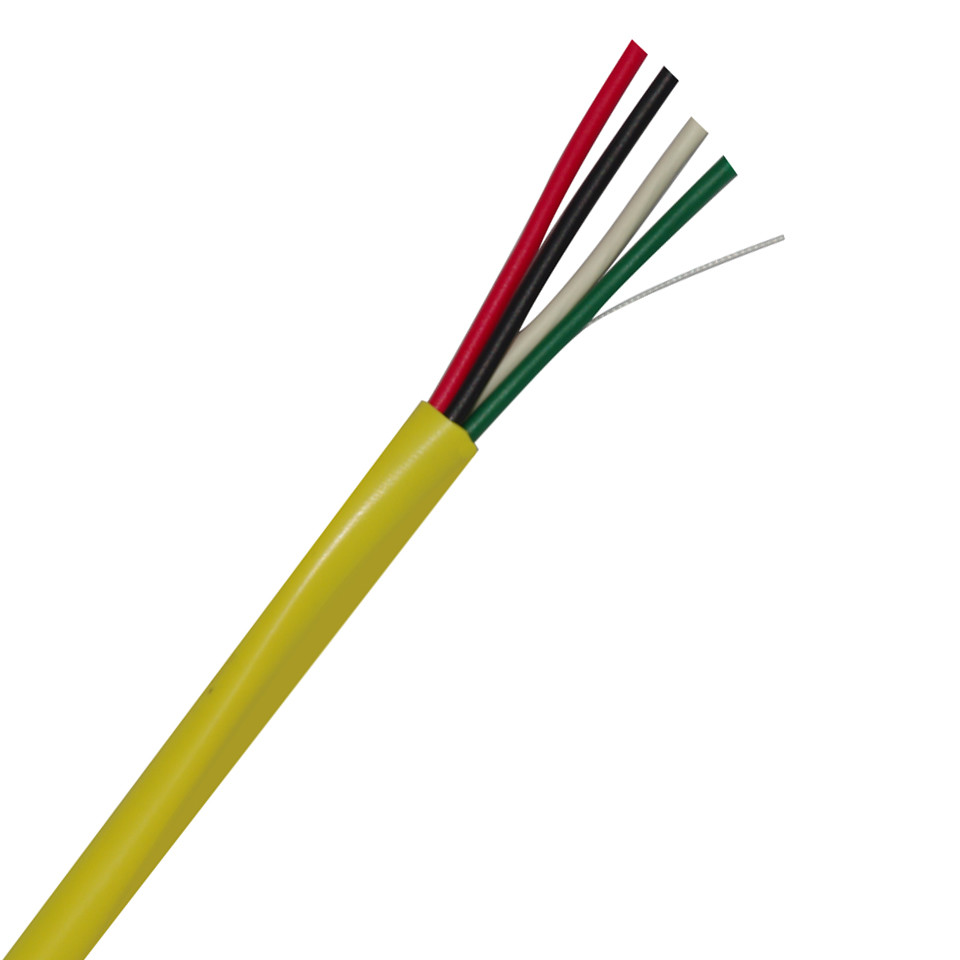

14 AWG 4 Cores CMR Rated PVC Audio Speaker Cable with Stranded OFC Conductor
Quick Detail:
Description:
Speaker wire is used to make the electrical connection between loudspeakers and audio amplifiers.
Modern speaker wire consists of two or more electrical conductors individually insulated by plastic
(such as PVC, PE or Teflon) or, less commonly, rubber. The two wires are electrically identical,
but are marked to identify the correct audio signal polarity. Most commonly, speaker wire
comes in the form of zip cord.
The effect of speaker wire upon the signal it carries has been a much-debated topic in the
audiophile and high fidelity worlds. The accuracy of many advertising claims on these points
has been disputed by expert engineers who emphasize that simple electrical resistance is
by far the most important characteristic of speaker wire.
Zion communication using best raw material and best worker to produce Speaker wire to meet high
performance in practical application.Because of good managing methods, Zion communication’S
price of Speaker wire is not high although our quality is really high.
KT1608 Audio Cable 14AWG 4C Stranded Bare Copper PVC CMR (UL) Speaker Cable | ||
Construction Parameters: | ||
Conductor Stranded | 14AWG (19×27) | Bare Copper |
No. of Conductor | 4 | |
Nom. Insulation Thickness | 0.010"/0.25mm | PVC CMR |
Nom. Jacket Thickness | 0.017"/0.43mm | PVC CMR |
Overall Cable Diameter | 0.287"/7.29mm | PVC CMR |
Approximate Cable Weight | 69 Lbs/1000ft | |
Flame Rating | UL 1666 Riser Flame Test | |
Electrical Characteristics: | ||
Nom. D.C. R. Resistance @ 20°: | 2.7 ohms per 1000ft | |
Temperature Rating | -20° C to 60° C | |
Operating Voltage | 150 V RMS Max | |
Capacitance Between Conductors@1KHz |
31 pF/ft Nom. | |
Insulation Colors | Black, Red, White, Green | |
Jacket Colors | Grey, Black, Brown, White | |
RoHS | YES | |
Order Informations: | ||
Marking |
Zion communication KT1608 AUDIO CABLE 14AWG 4C Stranded OFC PVC CMR (UL) Speaker Cable XXX M/FT |
|
Package | 152M, 305M, Pull Box, Pallet | |
Delivery time | Normally 25 days after received the deposit. |
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions manual at each work station
E: 5S system implemented
F: Machine maintenance procedure
G: Quality Control and Final Inspection
The QC staff will check the material, process product
and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies
needed to support the future growth and success for customers and Zion communication.
3, We know customers have urgent needs.
We are skilled at effective communication to interact with customers.
In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
