|Place of Origin:||China|
|Brand Name:||Zion communication OR OEM|
|Model Number:||HDMI 1.4 Cable 30AWG|
|Minimum Order Quantity:||1000 PCS|
|Packaging Details:||1 PC / PE Bag, 100 PCS / Carton, Pallet|
|Delivery Time:||25 working days|
|Payment Terms:||T/T, L/C|
|Supply Ability:||1000 KM / Month|
|Conductor:||Stranded Tinned Copper||Insulation:||Foamed PE|
|Shield:||Aluminum Mylar+ Tinned Copper Braid||Jacket:||PVC RoHS Compliant|
|Color:||Black||Pakcage:||1PC / PE Bag, 100PCS / Carton, Pallet|
hdmi 1.4 cable,
copper hdmi cable,
Stranded Tinned copper hdmi 1.4 cable

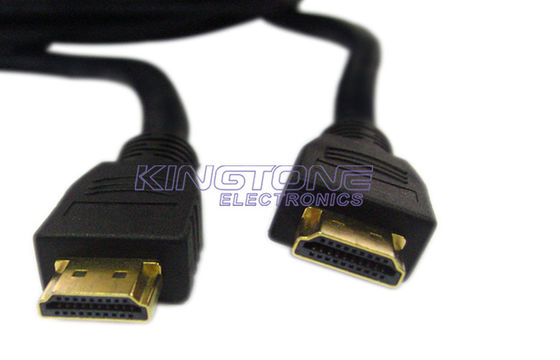

30AWG Stranded Tinned Copper High Speed HDMI Cable with Type A Type C Connector
KT2003 HDMI 1.4 HDMI-HDMI 30AWG 7×0.102mm Stranded Tinned Copper Type A & Type C
As high-definition audio/video technology continues to advance, the specification for HDMI equipment and cabling is occasionally modified to ensure broad compatibility and maximum performance. Version 1.4 is the latest iteration of the HDMI spec, as issued by HDMI Licensing, LLC.
Per the HDMI specification, only four HDMI cable types exist: Standard Speed, Standard Speed with Ethernet, High Speed, and High Speed with Ethernet. The HDMI organization has put in place a rule that requires all HDMI cables to be marketed in this manner. Therefore, you will not see our cables marketed as HDMI 1.4 cables. Keep in mind that installing a cable supporting HDMI 1.4 features does not give your existing devices of previous HDMI specifications the ability to experience 4K x 2K resolution, 3D, audio return or Ethernet. New A/V equipment supporting desired features is required in order to experience the newly specified features.
Zion communication using best raw material and best worker to produce HDMI 1.4 to meet high performance in practical application.Because of good managing methods, Zion communication’S price of HDMI 1.4 is not high although our quality is really high.
HDMI Ethernet Channel:A data channel will be added to the HDMI connection, enabling high-speed bi-directional communication.
Audio Return Channel:The new spec will enable a TV to send an audio signal back to an A/V receiver for processing and playback.
3D Over HDMI:While some 3D applications and equipment exist today, the new spec defines common 3D formats and resolutions for HDMI-enabled devices.
4K x 2K Resolution Support:The new spec enables HDMI devices to support extremely high HD resolutions, effectively four times the resolution of a 1080p device.
Content Type:Allows for real-time signaling of content types between the display and source devices, enabling a TV to optimize the picture settings based on content type.
Expanded Support for Color Spaces:HDMI now supports color spaces designed specifically for digital still cameras, enabling more accurate color rendering when viewing digital photos.
HDMI Micro Connector (Type D):The HDMI Micro connector is a significantly smaller 19-pin HDMI connector supporting up to 1080p resolutions for portable devices such as cell phones, portable media players, and digital cameras.
Automotive Connection System (Type E):The Automotive Connection System is a cabling specification designed to be used for in-vehicle HD content distribution.
|KT2003 HDMI 1.4 HDMI-HDMI 30AWG
7×0.102mm Stranded Tinned Copper Type A & Type C
|high speed cable 30AWG, true 1080P|
|Inner Conductor||7×0.102mm Stranded Tinned Copper|
|Insulation||Hight Foamed PE|
|Shield||Aluminum Mylar+ Tinned Copper Braid|
|Jacket||6 mm PVC|
|Support To Digital Video Format||720p,1080i,1080p|
|Connect Type||Type A & Type C|
|HDMI CABLE ASSEMBLY TMDS PARAMETERS:|
|Parameters||Category 1(74.25MHz)||Category 2(>74.25MHz)|
|Marking||Zion communication KT2003 HDMI1.4 CABLE XXX M|
|Inner Package||Polybag, PE bag, blister package|
|Outer Package||Carton, Pallet.|
|Delivery time||Normally 25 days after received the deposit.|
|More informations||please contact with us.|
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A,Incoming material inspected by QC.
B,Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions manual at each work station
E:5S system implemented
F: Machine maintenance procedure
G: Quality Control and Final Inspection
The QC staff will check the material, process product and final product according to the specification or test procedure.
2,Our R&D efforts center on reinforcing and developing element technologies needed to support the future growth and success for customers and Zion communication
3,We know customers have urgent needs. We are skilled at effective communication to interact with customers.In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
