| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, RoHS, VDE, UL |
| Model Number: | Network Cable SFTP CAT6 |
| Minimum Order Quantity: | 30.5 KM |
| Packaging Details: | 305M, 1000FT, Pull Box, Pallet |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Conductor: | Solid Bare Copper | Insulation: | HDPE |
|---|---|---|---|
| Shield: | PET / AL-Foil / TC Wire Braiding | Drain Wire: | TC Wire |
| Jacket: | PVC RoHS Compliant | Color: | White, Blue, Black |
| Package: | 305M, 1000FT, Pull Box, Pallet | ||
| High Light: | cctv camera cable,lan network cable |
||

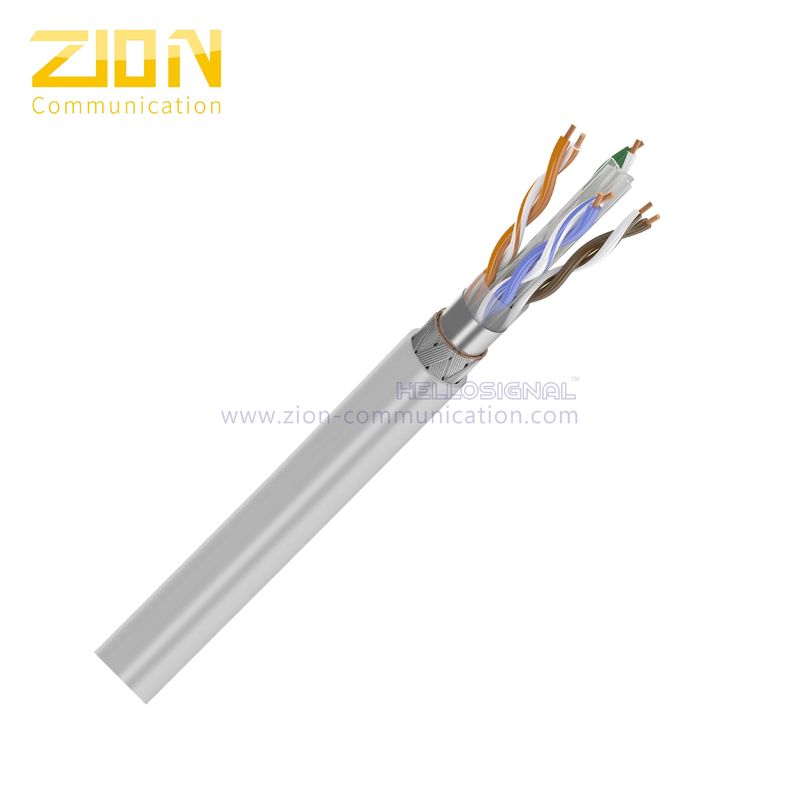

SFTP CAT6 Network Cable 23 AWG 550 MHz Solid Copper RoHS Complied PVC Jacket
Quick Detail:
Description:
Zion communication NETCONNECT Enhanced Category 6 (Cat6) SFTP cables exceed TIA/EIA-568-B.2,
ITA/EIA 568-C and ISO/IEC 11801 Class D, IEC61156-5, EN50288 and EN50173
performance requirements, providing extra headroom for a more robust cabling system.
They comply with all of the performance requirements for current and proposed applications
such as Gigabit Ethernet 1000Base-T IEEE802.3ab,100BASE Tx, token ring, 155 Mbps ATM,
100 Mbps, 1.2Gbps, TP-PMD, ISDN, analog (Broadband, Baseband) and digital video and
analog and digital voice (VoIP) and VoIP Camera application.
The cable is available in white, gray, blue and yellow, and packaged as wooden reels,
reelin- box and pull box.
Zion communication using best raw material and best worker to produce SFTP CAT 6 to meet
high performance in practical application.
Because of good managing methods, Zion communication’S price of SFTP CAT 6 is not high
although our quality is really high.
|
KT0268 SFTP CAT6 Network Cable 23 AWG 550 MHz Solid Copper RoHS Complied PVC Jacket |
||||||
| Application& Industry Standard: | ||||||
| Telephony Voice Wiring,10 Base-T,100 Base-T4, UL Subject 444,EIA/TIA568 & ISO/IEC 11801 | ||||||
| 100 Mbps TP-PMD(ANSI X3T9.5),TIA/EIA-568-B.2 , ISO.IEC 11801 Class D | ||||||
| IEC61156-5, IEC60332-1, EN50288, EN50173-1 | ||||||
| Construction | ||||||
| Center conductor | 4x2x0.57mm Solid Bare Copper | |||||
| Dielectric | 1.02mm PE | |||||
| First Shield | PE / AL-Foil | |||||
| Second Shield | Tinned Copper Braiding | |||||
| Outer jacket | 7.5mm PVC | |||||
| Insulation colors | Blue,White/Blue | |||||
| Orange,White/Orange | ||||||
| Green,White/Green | ||||||
| Brown,White/Brown | ||||||
| Electrical Characteristics at 20 °C | ||||||
| Impedance | 100 ± 15 Ω | |||||
| DC resistance(max) | 8.9 Ω/100m @20℃ | |||||
| Mutual capacitance(max) | 5.6 pF/100m @1kHz | |||||
| Delay Skew | 45 | |||||
| Voltage | 300 Volts AC or DC | |||||
| Mechanical Characteristics at 20 °C | ||||||
| Propagation Delay(max) | 540 ns@10MHZ | |||||
| Min.Bending radius | 4×outside diameter of Jacket | |||||
| Operating Temperature | -20 ℃ to 60℃ | |||||
| Performance Characteristics | ||||||
| Frequency | Attenuation (Max.) | NEXT (Min.) | PS-NEXT | ELFEXT | PS-ELFEXT | Return Loss |
| 1MHz | 1.9 dB/100m | 72 dB | 69 dB | 68 dB | 65 dB | 20 dB |
| 10MHz | 5,9 dB/100m | 65 dB | 62 dB | 53 dB | 50 dB | 23 dB |
| 16MHz | 7,5 dB/100m | 61 dB | 58 dB | 48 dB | 45 dB | 26 dB |
| 25MHz | 9,3 dB/100m | 55 dB | 52 dB | 45 dB | 42 dB | 25 dB |
| 40MHz | 12,1 dB/100m | 53 dB | 50 dB | 42 dB | 39 dB | 23 dB |
| 60MHz | 14,8 dB/100m | 52 dB | 49 dB | 35 dB | 32 dB | 22 dB |
| 100MHz | 19,3 dB/100m | 50 dB | 47 dB | 31 dB | 28 dB | 22 dB |
| 150MHz | 23,6 dB/100m | 43 dB | 40 dB | 28 dB | 25 dB | 19 dB |
| 200MHz | 27,5 dB/100m | 40 dB | 37 dB | 24 dB | 21 dB | 18 dB |
| 250MHz | 30,6 dB/100m | 38 dB | 35 dB | 21 dB | 18 dB | 18 dB |
| * PVC – Polyvinylchlorid * AWG - American Wire Gauge * AL/PE - Aluminium/Polyethylene | ||||||
| Order Informations: | ||||||
| Marking | Zion communication KT0268 SFTP CAT6 XXX M/FT | |||||
| Inner Package | 305M/1000FT, Pull box/Pallet (or Per customer's request) | |||||
| Delivery time | Normally 25 days after received the deposit. | |||||
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions manual at each work station
E: 5S system implemented
F: Machine maintenance procedure
G: Quality Control and Final Inspection
The QC staff will check the material, process product
and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies
needed to support the future growth and success for customers and Zion communication.
3, We know customers have urgent needs.
We are skilled at effective communication to interact with customers.
In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
