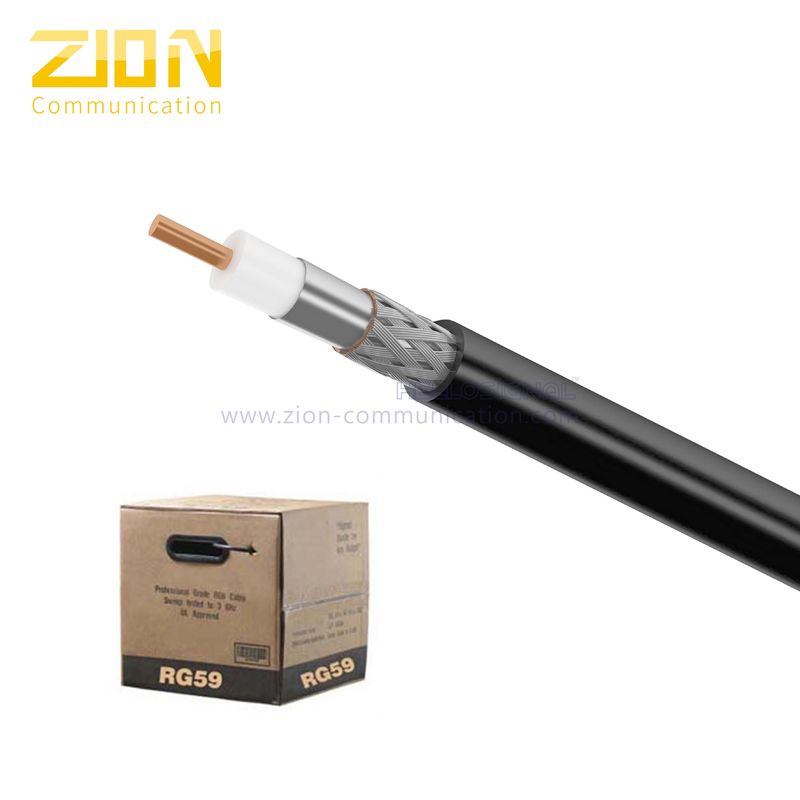

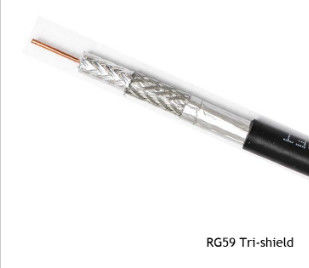

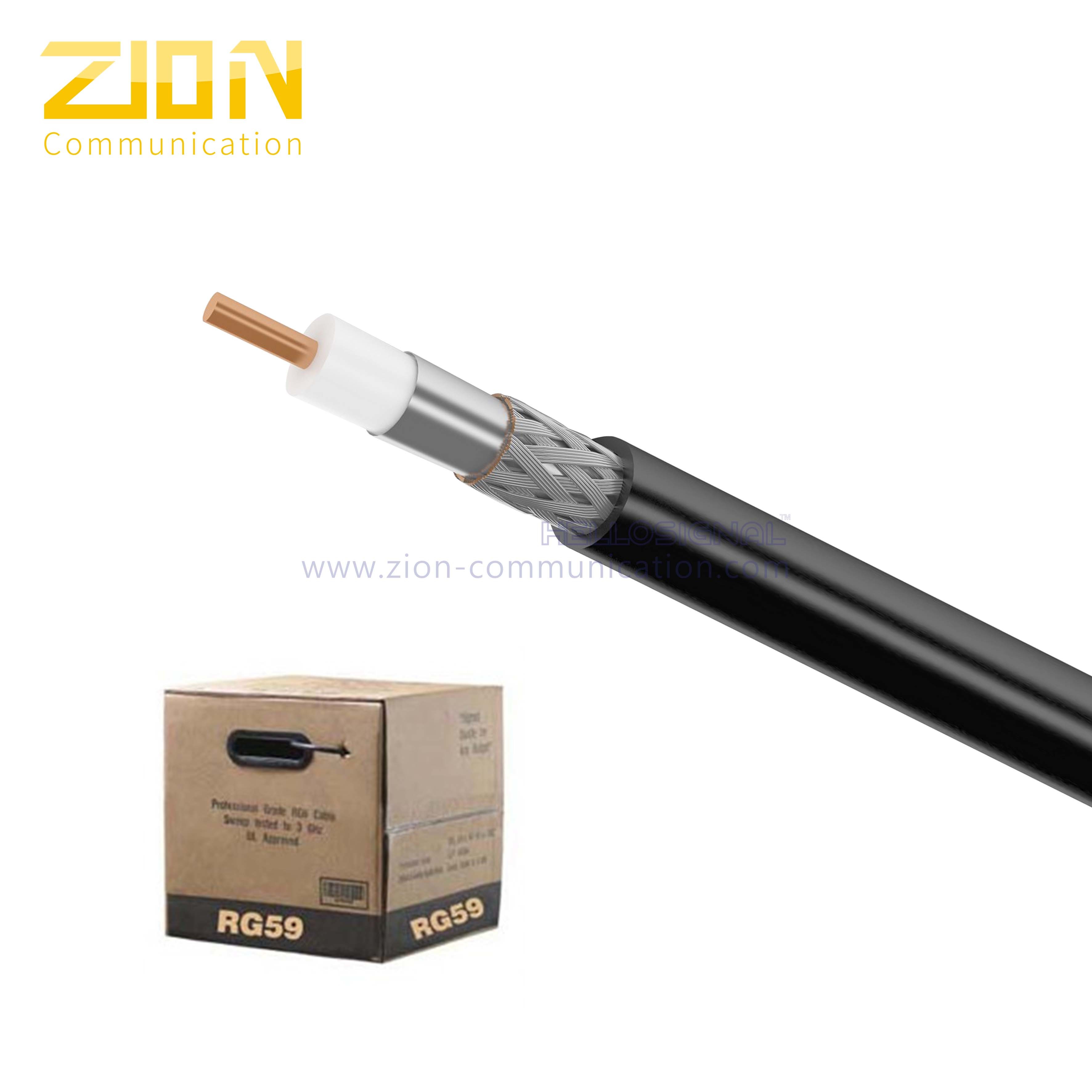

Tri-Shield RG59 Coaxial Cable with 67% AL Braiding CMR Rated PVC and 20 AWG CCS Conductor for Broadcasting Satellite

Basic Information

Place of Origin:	China
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	RG59 Coaxial Cable

Minimum Order Quantity:	30 KM
Packaging Details:	305M, 1000FT, Wooden Reel, Carton
Delivery Time:	25 working days
Payment Terms:	T/T,L/C
Supply Ability:	50*20’GP / Month

Get Best Price Contact Now

Detail Information

Conductor:	CCS	Dielectric:	Foamed PE
1st Shield:	Bonded AL-Foil	2nd Shield:	Aluminum Braiding
Jacket:	CMR Rated PVC	Color:	Black Or White
Package:	305M, 1000FT, Wooden Reel, Carton
Highlight:	video coaxial cable , 75 ohm coaxial cable

Product Description

Tri-Shield 67% AL Braiding RG59 Coaxial Cable CMR PVC

Professional-grade 75 Ohm coaxial cable designed for broadcasting, satellite, and communication systems with superior shielding performance.

Visit our official website for complete CCTV Coaxial Cable catalog

Quick Specifications

RG59 Tri-Shield Coaxial Cable
75 Ohm Impedance
20 AWG CCS Conductor
67% AL Braiding Shield
Foamed PE Insulation
UL CMR Rated PVC Jacket
Tested to 3GHz Frequency
Certifications: ISO, CE, RoHS, UL
Standard Lengths: 305M, 1000FT on Wooden Reel

Product Overview

KT2022 RG59 Tri-Shield Coaxial Cable is engineered for digital cable, satellite systems, antennas, and communication applications. Featuring 75 ohm characteristic impedance, this cable delivers high performance in practical applications through superior materials and manufacturing processes.

Packaged in 500FT/1000FT plastic or wooden spools on pallets for protection and easy handling, our RG59 cable offers exceptional value without compromising quality.

Applications

RF Signal Transmission
CATV Systems
MATV Systems
CCTV Security Systems
Local Area Networks
Digital Video Transmission
Antenna Systems

Construction Parameters

Inner Conductor	0.032"/0.81mm/20AWG	Copper-Clad Steel
Dielectric	0.144"/3.66mm	Foamed PE
Shield 1	0.151"/3.84mm	Bonded Aluminum-Polyproylene
Shield 2	67% coverage	Aluminum braid wire
Shield 3	Non-Bonded	Laminated Aluminum Tape
Jacket	0.240"±0.006"/6.10±0.15mm	PVC
Jacket Thickness	0.032"/0.81mm
Application	For Use in Longer CATV Run Lengths

Electrical Characteristics

Inner Conductor Resistance	Max. at 20℃: <87 Ω/km (26.5 Ω/1000ft)
Capacitance	52 ±3 pF/m (15.8 ±1 pF/m)
Impedance	75 ± 3 Ω
Return Loss	5-1000MHz: >22dB
Velocity of Propagation	0.85
Sparker Test (VAC)	4

Attenuation Characteristics (20℃)

Frequency (MHz)	Max Attenuation (dB/100ft)	Max Attenuation (dB/100m)
5	0.86	2.82
55	2.05	6.73
83	2.45	8.04
187	3.60	11.81
211	3.80	12.47
250	4.10	13.45
300	4.45	14.60
350	4.80	15.75
400	5.10	16.73
450	5.40	17.72
500	5.70	18.70
550	5.95	19.52
600	6.20	20.34
750	6.97	22.87
865	7.52	24.67
1000	8.12	26.64

Mechanical & Environmental Properties

Cable Bend Radius	10 times the cable diameter
Operating Temperature Range	-20 to 75 ℃
Cable Dimensions	0.242"±0.006" / 6.15±0.15 mm PVC

Order Information

Marking: Zion communication KT2022 RG59 67% Tri Bonded PVC CMR CATV COAXIAL CABLE ***M/FT

Inner Package: 500FT/Pull Box, 1000FT/Wooden Spool/Pallet

Delivery Time: Normally 25 days after received deposit

Quality Assurance & Competitive Advantages

Comprehensive Quality Control: Incoming material inspection, manufacturing process control, and final product testing
Continuous Training: Daily, weekly, and monthly worker training programs
Process Excellence: Work instructions at each station, 5S system implementation, and machine maintenance procedures
Advanced R&D: Focus on developing element technologies to support customer growth
24/7 Customer Support: Prompt service and effective communication
Extensive Product Range: Over 1000 types of cables, connectors, and assemblies
Reliable Delivery: Consistent on-time delivery performance
