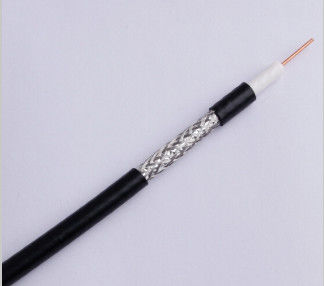

UL CMR Rated PVC RG59 Coaxial Cable with 20 AWG CCS Conductor and 95% AL Braiding for CATV and CCTV

Basic Information

Place of Origin:	China
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	RG59 Coaxial Cable

Minimum Order Quantity:	10 KM
Packaging Details:	305M, 1000FT, Wooden Reel, Carton
Delivery Time:	Normally 15 Days
Payment Terms:	T/T,L/C
Supply Ability:	1000KM / Month

Get Best Price Contact Now

Detail Information

Conductor:	CCS	Dielectric:	Foamed PE
1st Shield:	Bonded AL-Foil	2nd Shield:	Aluminum Braiding
Jacket:	CMR Rated PVC	Color:	Black Or White
Package:	305M, 1000FT, Wooden Reel, Carton
Highlight:	hd coaxial cable , 75 ohm coaxial cable

Product Description

UL CMR RG59 Coaxial Cable 20 AWG CCS 95% AL Braiding 75 Ohm CATV Cable

UL CMR RG59 Coaxial Cable 20 AWG CCS with 95% AL Braiding 75 Ohm CATV Cable

Visit our official website to learn more about CCTV Coaxial Cable: CCTV Coaxial Cable Products Catalog

Quick Details

RG59 Coaxial Cable
75 Ohm Coaxial Cable
20 AWG CCS Conductor
95% AL Braiding
Foamed PE Insulation
UL CMR Rated PVC
Tested to 3GHz
ISO, CE, RoHS, UL Certified

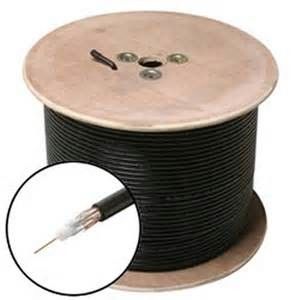

Available in 305M, 1000FT on Wooden Reel with Carton

Product Description

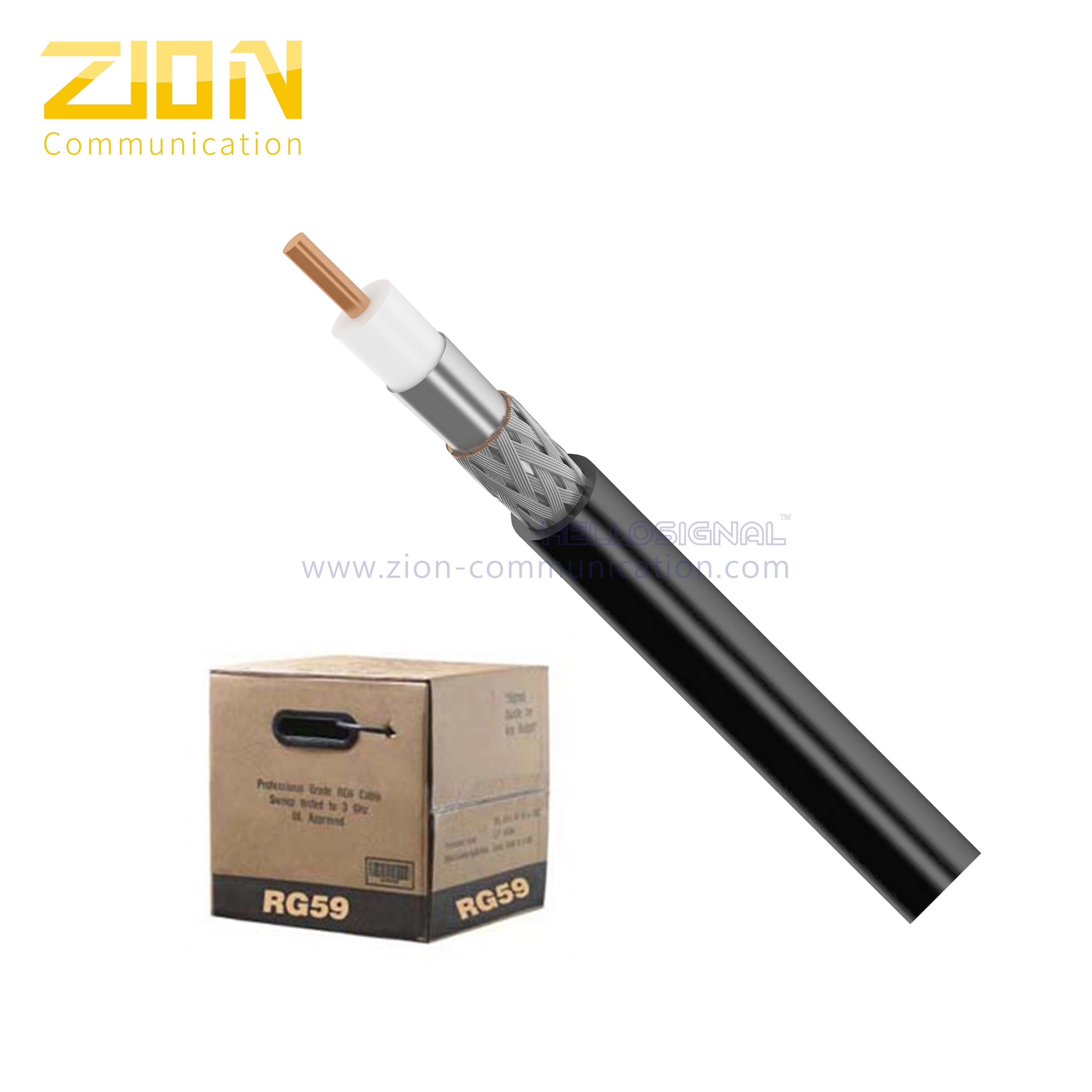

KT2017 RG59 Coaxial Cable 20 AWG CCS Foamed PE 95% AL Braid CMR Rated PVC is a specialized CATV coaxial cable designed for digital cable, satellite, antennas, and communication systems. With a characteristic impedance of 75 ohms, this cable from Zion Communication delivers high performance in practical applications through superior raw materials and manufacturing expertise. Available in 500FT/1000FT plastic/wooden spools with pallet protection for easy handling and transport.

Applications

RF Signal Transmission
CATV Systems
MATV Systems
CCTV Systems
Local Area Networks
Digital Video
Antennas

Technical Specifications

Construction Parameters

Inner Conductor	0.032"/0.81mm/20AWG	Copper Clad Steel
Dielectric	0.144"/3.66mm	Foamed PE
Shield 1	0.151"/3.84mm	Bonded Aluminum-Polyproylene
Shield 2	95% coverage	Aluminum Braid Wire
Jacket	0.240"±0.006"/6.10±0.15mm	PVC CMR UL
Jacket Thickness	0.032"/0.81mm
Application	For Use in Longer CATV Run Lengths

Electrical Characteristics

Inner Conductor Resistance	Max. at 20℃: < 87 Ω/km (26.5 Ω/1000ft)
Capacitance	52 ±3 pF/m (15.8 ±1 pF/ft)
Impedance	75 ± 3 Ω
Return Loss	Between 5 and 1000MHz: > 22dB
Velocity of Propagation	0.85
Sparker Test (VAC)	4

Attenuation (20℃)

Frequency (MHz)	Max Attenuation (dB/100ft)	Max Attenuation (dB/100m)
5	0.86	2.82
55	2.05	6.73
83	2.45	8.04
187	3.60	11.81
211	3.80	12.47
250	4.10	13.45
300	4.45	14.60
350	4.80	15.75
400	5.10	16.73
450	5.40	17.72
500	5.70	18.70
550	5.95	19.52
600	6.20	20.34
750	6.97	22.87
865	7.52	24.67
1000	8.12	26.64

Mechanical and Environmental Properties

Cable Bend Radius	10 times the cable diameter
Operating Temperature Range	-20 to 75 ℃
Cable Dimensions	0.242"±0.006"/6.15±0.15mm PVC CMR or CMG(UL)

Order Information

Marking	Zion communication KT2017 RG59 95% AL PVC CMR CATV COAXIAL CABLE ***M/FT
Package	500FT/Pull Box, 1000FT/Wooden Spool/Pallet
Delivery Time	Normally 25 days after receiving deposit

Competitive Advantages

Comprehensive Quality Control: Rigorous checks from raw materials to final products including incoming material inspection, manufacturing process control, worker training, work instructions, 5S system implementation, machine maintenance procedures, and final inspection
Advanced R&D: Focus on developing element technologies to support customer growth and success
24/7 Customer Support: Skilled communication team available around the clock for prompt service
Quick Response: Professional and timely responses to all inquiries
Extensive Product Range: Over 1000 types of cables, connectors, and assemblies available
Reliable Delivery: Consistent on-time delivery performance
