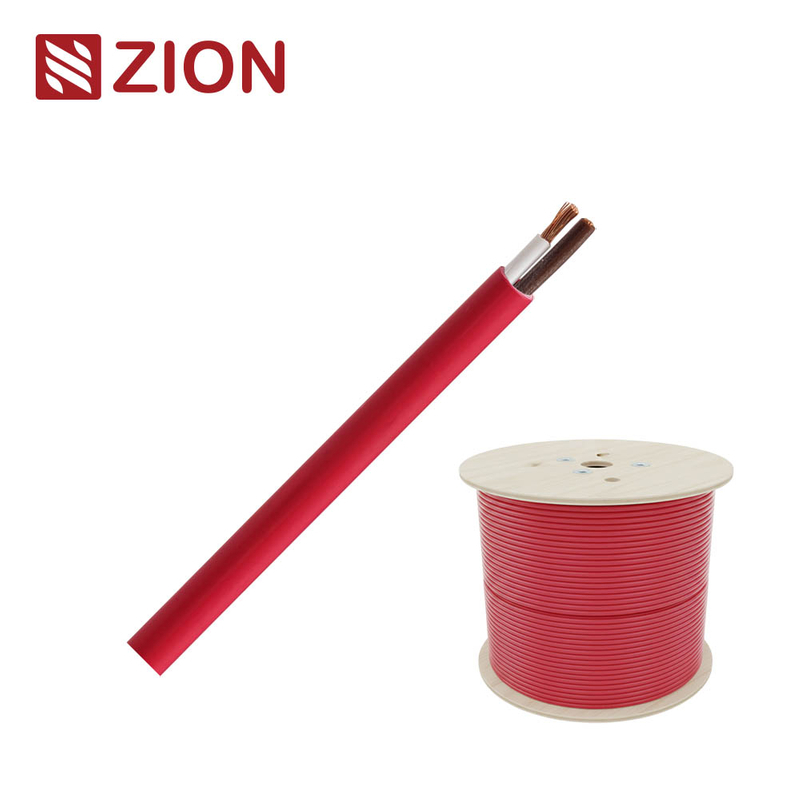

Name: Fire Resistant Cable with FE180 / PH120 Fire Resistance, LSZH Outer Sheath, and Silicone + Mica Insulation for Fire Alarm Systems
Brand: HANGZHOU ZION COMMUNICATION CO., LTD
SKU: FR6387-UN
Availability: InStock

Detail Information

Highlight:

FE180 / PH120 Fire Resistance Fire Resistant Cable

LSZH Outer Sheath Fire Alarm Cable

Silicone + Mica Insulation Fire Proof Cable

Product Description

FR6387-UN-0710

Fire Resistant Cable

ZION COMMUNICATION - FR6387-UN-0710
Fire Resistant Cable 7 × 1.0 sq mm | BS 6387 / IEC 60331 / LSZH (Red RAL 3000)

General Information

Item	Specification
Product Name	Fire Resistant Cable
Model No.	FR6387-UN-0710
Construction Type	CU / FR / LSZH (Unscreened)
Conductor Material	Stranded Bare Copper (Class 5, EN 60228)
Conductor Size	18 × 0.25 mm
Nominal Cross Section	7 × 1.0 sq mm
Rated Voltage	300 / 500 V
Operating Temperature	−30 °C ~ +90 °C
Outer Color	Red RAL 3000
Applicable Standards	IEC 60331-21 (FE180), BS 6387 CAT B/C, IEC 60332-1-2, IEC 60332-3-22, EN 50200 PH120, CE, RoHS

Construction Details

Component	Material / Description	Standard	Dimensions
Conductor	Stranded Bare Copper	EN 60228	18 × 0.25 mm
DC Resistance (20 °C)	--	EN 60228	≤ 21.5 Ω/km
Insulation	Silicone Rubber (Heat Resistant)	IEC/EN 60811-203	≥ 0.42 mm
Insulation Diameter	--	IEC/EN 60811-201	2.1 ± 0.1 mm
Insulation Colors	White / Black / Red / Blue / Gray / Brown / Green	--	--
Insulation Resistance	> 200 MΩ/km	--	--
Fire Barrier Layer	Mica Tape	--	0.18 × 30 mm
Overall Screen	-- (Unscreened Type)	--	--
Drain Wire	--	--	--
Outer Sheath	LSZH (Low Smoke Zero Halogen)	IEC/EN 60811-202	0.8 mm thick
Outer Diameter	--	IEC/EN 60811-203	8.4 ± 0.2 mm
Pitch of Twist	--	--	100 ± 10 mm
Inductance	--	--	2.3 mH/km
High-Voltage Test	EN 50288-7	3.0 kV / 1 min	--

Fire & Safety Performance

Test Item	Standard	Description / Requirement
Fire Resistance	IEC 60331-21 (FE180) / BS 6387 CAT B, CAT C	Maintains circuit integrity for 180 min at 750 - 950 °C
Flame Propagation	IEC 60332-1-2 / IEC 60332-3-22 / EN 50266-2-4	Controls flame spread on single and bunched cables
Smoke Density	IEC 61034-1/2	Low smoke emission for better visibility
Corrosive Gas Emission	IEC 60754-1/2 / EN 50267	Low acid gas, halogen-free
RoHS Compliance	EU Directive 2011/65/EU	Confirmed (Pb, Cd, Hg, Cr⁶⁺, PBB, PBDE Free)

Electrical & Mechanical Characteristics

Insulation Resistance: > 200 MΩ/km
Voltage Withstand: 3.0 kV (1 min)
Inductance: 2.3 mH/km
Operating Temperature: −30 °C ~ +90 °C
Minimum Bending Radius: 10 × Cable OD
Fire Survival Duration: 180 min (FE180 / PH120)

Applications

Designed for control and emergency power circuits that must remain operational during fire
Fire-alarm and emergency lighting systems
Smoke extraction and sprinkler controls
Hospitals, airports, tunnels and industrial facilities

Key Features

FE180 / PH120 Fire Resistance: Maintains circuit integrity up to 180 min at 950 °C
LSZH Outer Sheath: Low smoke and zero halogen gas emission
Silicone + Mica Insulation: Superior thermal and electrical stability
✅ Certified Quality: Complies with IEC, BS, EN, CE and RoHS requirements

Tag:

Place of Origin:	NINGBO, SHANGHAI
Brand Name:	Zion communication
Model Number:	FR6387-UN

Minimum Order Quantity:	10KM
Packaging Details:	roll, wooden spool, carton, pallet
Delivery Time:	Normally 25 working days
