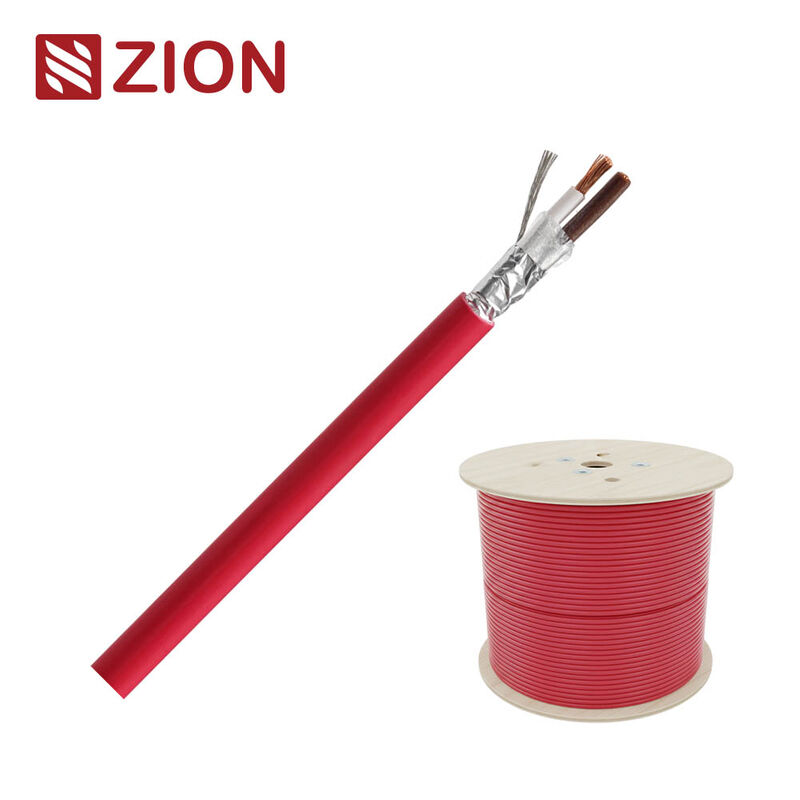

Name: Fire Resistant Cable 3 × 2.5 sq mm with IEC 60331-21 (FE90) Compliance and LSZH Sheath for Fire Safety Systems
Brand: HANGZHOU ZION COMMUNICATION CO., LTD
SKU: FR331-OS
Availability: InStock

Detail Information

Highlight:

3 × 2.5 sq mm Fire Resistant Cable

IEC 60331-21 (FE90) Fire Alarm Cable

LSZH Fire Proof Cable

Product Description

FR331-OS-0325

Fire Resistant Cable 3 × 2.5 sq mm | IEC 60331-21 (FE90) / LSZH / BS 6387 Compliant (Red RAL 3000)

General Information

Item	Specification
Product Name	Fire Resistant Cable
Model No.	FR331-OS-0325
Construction Type	CU / FR / OS / LSZH (Overall Screened)
Conductor Material	Stranded Bare Copper (Class 5, EN 60228)
Conductor Size	45 × 0.25 mm
Nominal Cross Section	3 × 2.5 sq mm
Rated Voltage	300 / 500 V
Operating Temperature	−30 °C ~ +90 °C
Outer Color	Red RAL 3000
Applicable Standards	IEC 60331-21 (FE90), BS 6387 CAT B/C, IEC 60332-1-2, IEC 60332-3-24, EN 50266-2-4, CE, RoHS

Construction Details

Component	Material / Description	Standard	Dimensions
Conductor	Stranded Bare Copper	EN 60228	45 × 0.25 mm
DC Resistance (20 °C)	--	EN 60228	7.98 Ω/km
Insulation	Silicone Rubber (Heat Resistant)	IEC/EN 60811-203	0.5 mm thick
Insulation Diameter	--	IEC/EN 60811-201	3.1 ± 0.1 mm
Insulation Colors	Brown / White / Black	--	--
Insulation Resistance	> 200 MΩ/km	--	--
Overall Screen	Aluminum Foil (Overlapped)	--	0.04 × 24 mm
Drain Wire	Tinned Copper (7 × 0.3 mm)	--	--
Outer Sheath	LSZH (Low Smoke Zero Halogen)	IEC/EN 60811-202	0.9 mm thick
Outer Diameter	--	IEC/EN 60811-203	8.7 ± 0.2 mm
Pitch of Twist	--	--	136 ± 10 mm
Inductance	--	--	2.3 mH/km
High Voltage Test	EN 50288-7	2.0 kV / 1 min	--

Fire & Safety Performance

Test Item	Standard	Description / Requirement
Fire Resistance	IEC 60331-21 (FE90) / BS 6387 CAT B, CAT C	Maintains circuit integrity for 90 min at 750-850 °C
Flame Propagation	IEC 60332-1-2 / IEC 60332-3-24 / EN 50266-2-4	Restricts flame spread on single and bunched cables
Smoke Density	IEC 61034-1/2	Low smoke emission ensures visibility during fire
Corrosive Gas Emission	IEC 60754-1/2 / EN 50267	Low acid gas release, halogen-free
RoHS Compliance	EU Directive 2011/65/EU	Confirmed (Pb, Cd, Hg, Cr⁶⁺, PBB, PBDE Free)

Electrical & Mechanical Characteristics

Insulation Resistance: > 200 MΩ/km
Voltage Withstand: 2.0 kV (1 min)
Inductance: 2.3 mH/km
Operating Temperature: −30 °C ~ +90 °C
Minimum Bending Radius: 10 × OD
Fire Survival Duration: 90 min (FE90)

Applications

Designed for fire-protection, control, and emergency systems requiring circuit integrity during fire exposure
Fire alarm and emergency lighting circuits
Smoke extraction and safety control systems
Hospitals, tunnels, airports, industrial facilities

Key Features

FE90 Fire Resistance: Maintains electrical integrity for 90 minutes at 850 °C
LSZH Sheath: Low smoke and halogen-free for human safety
Silicone + Mica Insulation with Aluminum Screen: Excellent thermal and EMI protection
Certified Safety: Meets IEC, BS, EN, CE, and RoHS compliance

Tag:

Place of Origin:	NINGBO, SHANGHAI
Brand Name:	Zion communication
Model Number:	FR331-OS

Minimum Order Quantity:	10KM
Packaging Details:	roll, wooden spool, carton, pallet
Delivery Time:	Normally 25 working days
