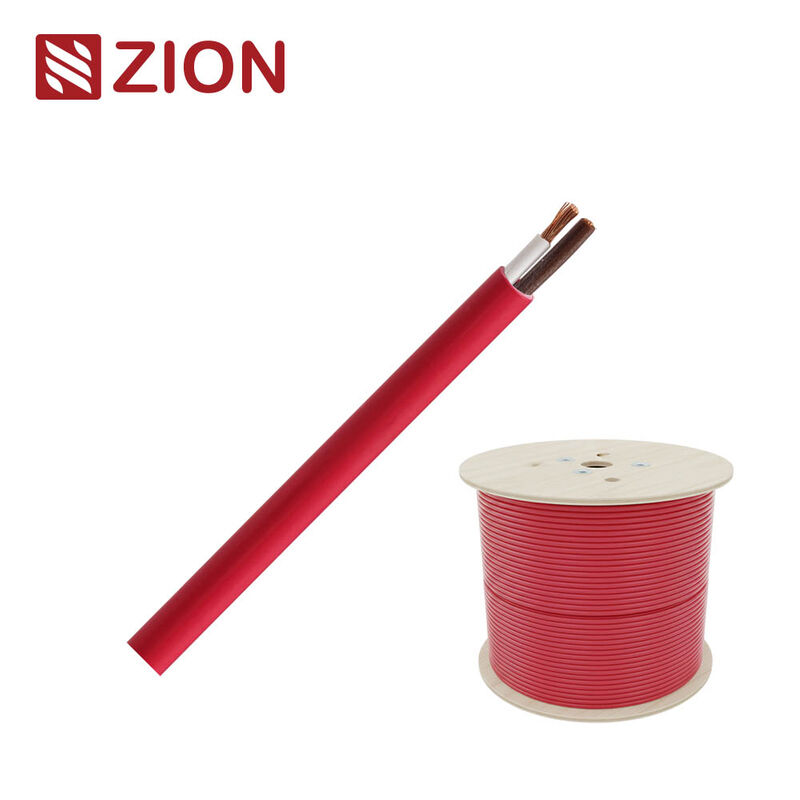

Name: Fire Resistant Cable 2 × 1.5 sq mm IEC 60331-21 (FE90) and BS 6387 Compliant LSZH for Safety-Critical Systems
Brand: HANGZHOU ZION COMMUNICATION CO., LTD
SKU: FR331-UN
Availability: InStock

Detail Information

Highlight:

2 × 1.5 sq mm Fire Resistant Cable

IEC 60331-21 (FE90) Compliant LSZH Cable

BS 6387 Compliant Fire Survival Cable

Product Description

FR331-UN-0215 Fire Resistant Cable

Product Overview

Fire Resistant Cable 2 * 1.5 sq mm | IEC 60331-21 (FE90) / LSZH / BS 6387 Compliant (Red RAL 3000)

General Specifications

Item	Specification
Product Name	Fire Resistant Cable
Model No.	FR331-UN-0215
Construction Type	CU / FR / LSZH (Unscreened)
Conductor Material	Stranded Bare Copper (Class 5, EN 60228)
Conductor Size	28 * 0.25 mm
Nominal Cross Section	2 * 1.5 sq mm
Rated Voltage	300 / 500 V
Operating Temperature	−30 °C ~ +90 °C
Outer Color	Red RAL 3000
Applicable Standards	IEC 60331-21 (FE90), BS 6387 CAT B/C, IEC 60332-1-2, IEC 60332-3-24, EN 50266-2-4, CE, RoHS

Construction Details

Component	Material / Description	Standard	Dimensions
Conductor	Stranded Bare Copper	EN 60228	28 * 0.25 mm
DC Resistance (20 °C)	--	EN 60228	13.3 Ω/km
Insulation	Silicone Rubber (Heat Resistant)	IEC/EN 60811-203	≥ 0.45 mm
Insulation Diameter	--	IEC/EN 60811-201	2.4 ± 0.1 mm
Insulation Colors	Brown / White	--	--
Insulation Resistance	> 200 MΩ/km	--	--
Overall Screen	-- (Unscreened Type)	--	--
Drain Wire	--	--	--
Outer Sheath	LSZH (Low Smoke Zero Halogen)	IEC/EN 60811-202	≥ 0.6 mm
Outer Diameter	--	IEC/EN 60811-203	6.0 ± 0.2 mm
Pitch of Twist	--	--	106 ± 10 mm
Inductance	--	--	2.3 mH/km
High Voltage Test	EN 50288-7	2.0 kV / 1 min	--

Fire & Safety Performance

Test Item	Standard	Description / Requirement
Fire Resistance	IEC 60331-21 (FE90) / BS 6387 CAT B, CAT C	Maintains circuit integrity for 90 min at 750-850 °C
Flame Propagation	IEC 60332-1-2 / IEC 60332-3-24 / EN 50266-2-4	Restricts flame spread on single and bunched cables
Smoke Density	IEC 61034-1/2	Low smoke emission ensures visibility during fire
Corrosive Gas Emission	IEC 60754-1/2 / EN 50267	Low acid gas, halogen-free
RoHS Compliance	EU Directive 2011/65/EU	Confirmed (Pb, Cd, Hg, Cr⁶⁺, PBB, PBDE Free)

Electrical & Mechanical Characteristics

Insulation Resistance: > 200 MΩ/km
Voltage Withstand: 2.0 kV (1 min)
Inductance: 2.3 mH/km
Operating Temperature: −30 °C ~ +90 °C
Minimum Bending Radius: 10 * OD
Fire Survival Duration: 90 min (FE90)

Applications

Designed for safety-critical electrical and control systems where circuit integrity must be maintained during fire
Fire alarm and emergency lighting systems
Smoke extraction and sprinkler control circuits
Hospitals, tunnels, airports, and industrial environments

Key Features

FE90 Fire Resistance: Maintains circuit integrity for 90 minutes at 850 °C

LSZH Sheath: Low smoke, halogen-free composition for human safety

Silicone Insulation + Mica Fire Layer: Enhanced thermal protection

Certified Safety: Fully compliant with IEC, BS, EN, CE, and RoHS standards

Tag:

Place of Origin:	NINGBO, SHANGHAI
Brand Name:	Zion communication
Model Number:	FR331-UN

Minimum Order Quantity:	10KM
Packaging Details:	roll, wooden spool, carton, pallet
Delivery Time:	Normally 25 working days
