1/2" Copper Air Dielectric RF Coaxial Cable for High-Performance Signal Transmission up to 6 GHz

Basic Information

Place of Origin:	NINGBO, SHANGHAI
Brand Name:	hellosignal
Model Number:	RF

Minimum Order Quantity:	10KM
Packaging Details:	roll, wooden spool, carton, pallet
Delivery Time:	Normally 25 working days

Get Best Price Contact Now

Detail Information

Highlight:

1/2" RF Coaxial Cable

Copper Air Dielectric Cable

6 GHz Coaxial Cable

Product Description

■Product Description

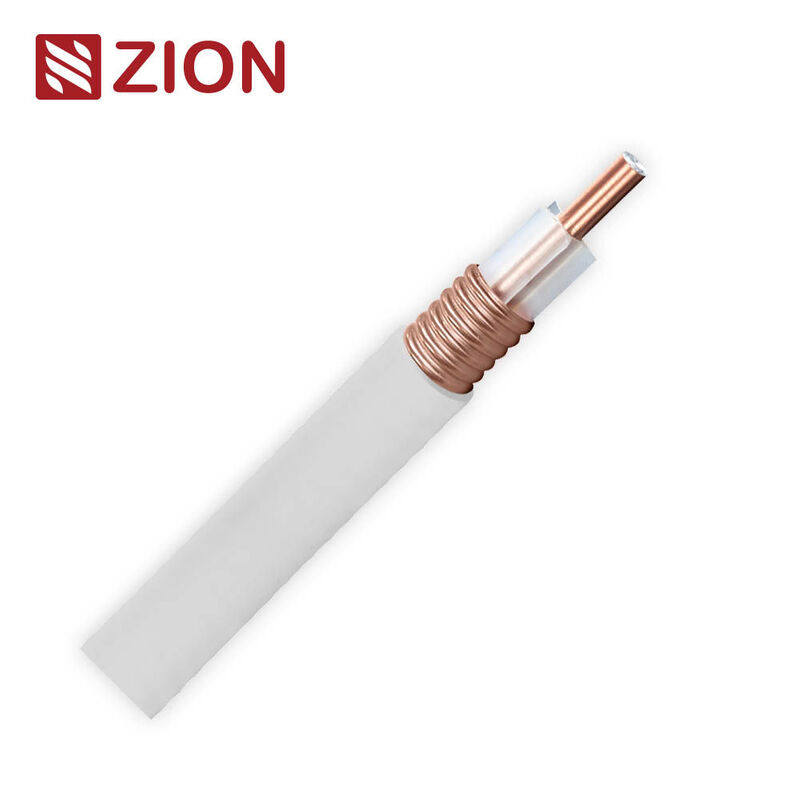

This 1/2" Copper Air Dielectric RF Coaxial Cable is designed for high-performance RF signal transmission in Wireless Communication, TV & Radio Broadcast, HF Defense Systems, Mobile Radio, Cable Solutions, and In-Building DAS applications.
Its corrugated copper outer conductor, low-loss dielectric, and precision impedance control ensure excellent electrical stability across frequencies up to 6 GHz.

■Design Features

Component	Material / Specification
Inner conductor	Copper Clad Aluminum wire, Ø 4.75 ± 0.05 mm
Insulation	Extruded Polyethylene, Ø 11.80 ± 0.20 mm
Outer conductor	Corrugated Copper, Ø 13.80 ± 0.15 mm
Jacket	PVC, Color White, Ø 15.90 ± 0.20 mm

■Electrical Specifications

Parameter	Value
Impedance	50 ± 1 Ω
Relative Velocity of Propagation	0.88
Capacitance	76 pF/m
Maximum Operating Frequency	6 GHz
Peak Power Rating	40 kW
Jacket Spark Test Voltage	8000 Vrms
Inner Conductor DC Resistance	≤ 1.62 Ω/km
Outer Conductor DC Resistance	≤ 1.90 Ω/km

■Environmental Specifications

Condition	Temperature Range
Installation	-20°C to +60°C
Operating	-40°C to +85°C
Storage	-40°C to +85°C

■Mechanical Specifications

Parameter	Value
Tensile Strength	1120 N
Min. Bending Radius (single)	76 mm
Min. Bending Radius (repeated)	127 mm
Bending Moment	4.1 N·m
Flat Plate Crush Strength	19.2 N/mm

■Standard Conditions

Attenuation, VSWR: measured at ambient temperature 20°C, VSWR = 1.0
Average Power: measured at ambient temperature 40°C, VSWR = 1.0
Average Power (high-temp): Inner Conductor Temperature = 100°C

■VSWR (Voltage Standing Wave Ratio)

Frequency Band	VSWR Max
680 MHz – 960 MHz	≤ 1.13
1390 MHz – 1450 MHz	≤ 1.13
1700 MHz – 2200 MHz	≤ 1.13
2300 MHz – 2700 MHz	≤ 1.22
3550 MHz – 4200 MHz	≤ 1.29
5150 MHz – 6000 MHz	≤ 1.29

■Attenuation & Power Handling

Frequency (MHz)	Typical Attenuation (dB/100 m)	Average Power (kW)
200	3.14	2.3
450	4.84	1.49
800	6.64	1.09
900	7.08	1.02
1500	9.45	0.77
1800	10.5	0.69
2000	11.2	0.65
2200	11.8	0.62
2400	12.4	0.59
2500	12.7	0.59
2700	13.3	0.55
3500	15.5	0.47
4000	16.8	0.44
5000	19.3	0.38
6000	21.6	0.34

■Packing

Packing: 500 m per reel
Reel Size: 75 × 53 × 75 cm

■Certification

Cable complies with relevant international standards for RF coaxial transmission. Certification documentation available upon request.

■Ordering

Part Number	Description
7101116	1-2" Air Dielectric PVC CM
7101116R	1-2" Air Dielectric PVC CMR/FT4
7101116P	1-2" Air Dielectric PVC CMP/FT6
